Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

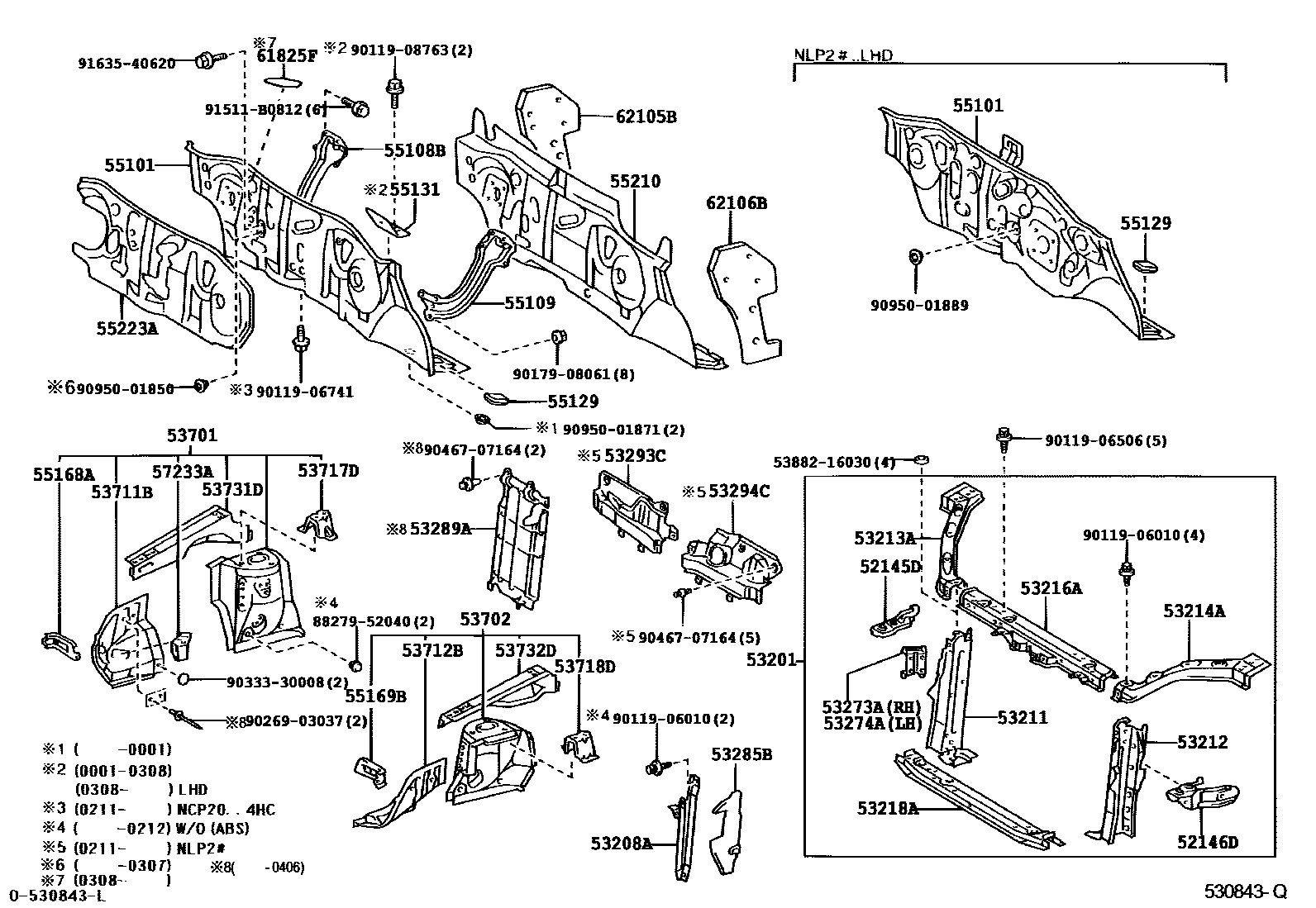

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52145D | Front bumper right side mounting bracket | 52145-52020 |
| 52146D | Front bumper left mounting bracket | 52146-52020 |
| 53201 | Radiator bracket sub-assembly | 53210-52020 · 53210-52180 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-52020 · 53208-52021 · 53208-52080 |
| 53211 | Radiator right side support | 53211-52010 |
| 53212 | Radiator left support | 53212-52010 |
| 53213A | Radiator upper right bracket | 53213-52020 |
| 53214A | Radiator upper left bracket | 53214-52020 |
| 53216A | Radiator upper bracket | 53216-52020 · 53216-52090 |
| 53218A | Radiator lower support | 53218-52010 |
| 53273A | Radiator right side bracket reinforcement | 53273-52010 |
| 53274A | Radiator left bracket reinforcement | 53273-52010 |
| 53285B | Radiator side 1 air seal | 53285-52010 · 53285-52011 · 53285-52120 |
| 53289A | Radiator bracket opening cover | 53289-52010 |
| 53293C | Radiator right baffle | 53293-52041 |
| 53294C | Radiator left baffle | 53294-52041 |
| 53701 | Right front fender fender sub-assembly | 53701-52020 |
| 53702 | Left front fender fender sub-assembly | 53702-52020 |
| 53711B | Right front fender front fender | 53711-52010 |
| 53712B | Left front fender front fender | 53712-52010 |
| 53717D | Right fender fender corner panel | 53717-52010 |
| 53718D | Left fender fender corner panel | 53718-52010 |
| 53731D | Right front fender to cowl side upper beam | 53731-52010 |
| 53732D | Left front fender to cowl side upper beam | 53732-52010 |
| 55101 | Front apron sub-assembly | 55101-52020 · 55101-52021 · 55101-52060 · 55101-52061 · 55101-52080 · 55101-52081 · 55101-52090 · 55101-52091 · 55101-52100 · 55101-52101 · 55101-52160 · 55101-52250 · 55101-52260 · 55101-52270 · 55101-52280 · 55101-52290 · 55101-52321 · 55101-52441 · 55101-52451 |
| 55108B | Right side bracket sub-assembly (front wall to frame) | 55108-52030 · 55108-52040 |
| 55109 | Left side bracket sub-assembly (front wall to frame) | 55109-52030 · 55109-52040 |
| 55129 | Front panel hole cover | 55129-52010 · 55129-52020 |
| 55131 | Front apron reinforcement | 55132-52010 · 55132-52020 |
| 55168A | Right front fender mounting bracket | 55168-52020 |
| 55169B | Left front fender mounting bracket | 55169-52020 |
| 55210 | Front wall insulation pad assembly | 55210-52030 · 55210-52031 · 55210-52032 · 55210-52040 · 55210-52041 · 55210-52042 · 55210-52043 |
| 55223A | Front wall outer heat insulation pad | 55223-52010 · 55223-52020 |
| 57233A | Engine right front bracket fixing piece | 57233-52010 · 57233-52011 |
| 61825F | Noise control panel | 61826-47010 |
| 62105B | Right front wall side heat insulation pad sub-assembly | 62105-52010 · 62105-52011 |
| 62106B | Left front wall side heat insulation pad sub-assembly | 62106-52010 · 62106-52011 |
