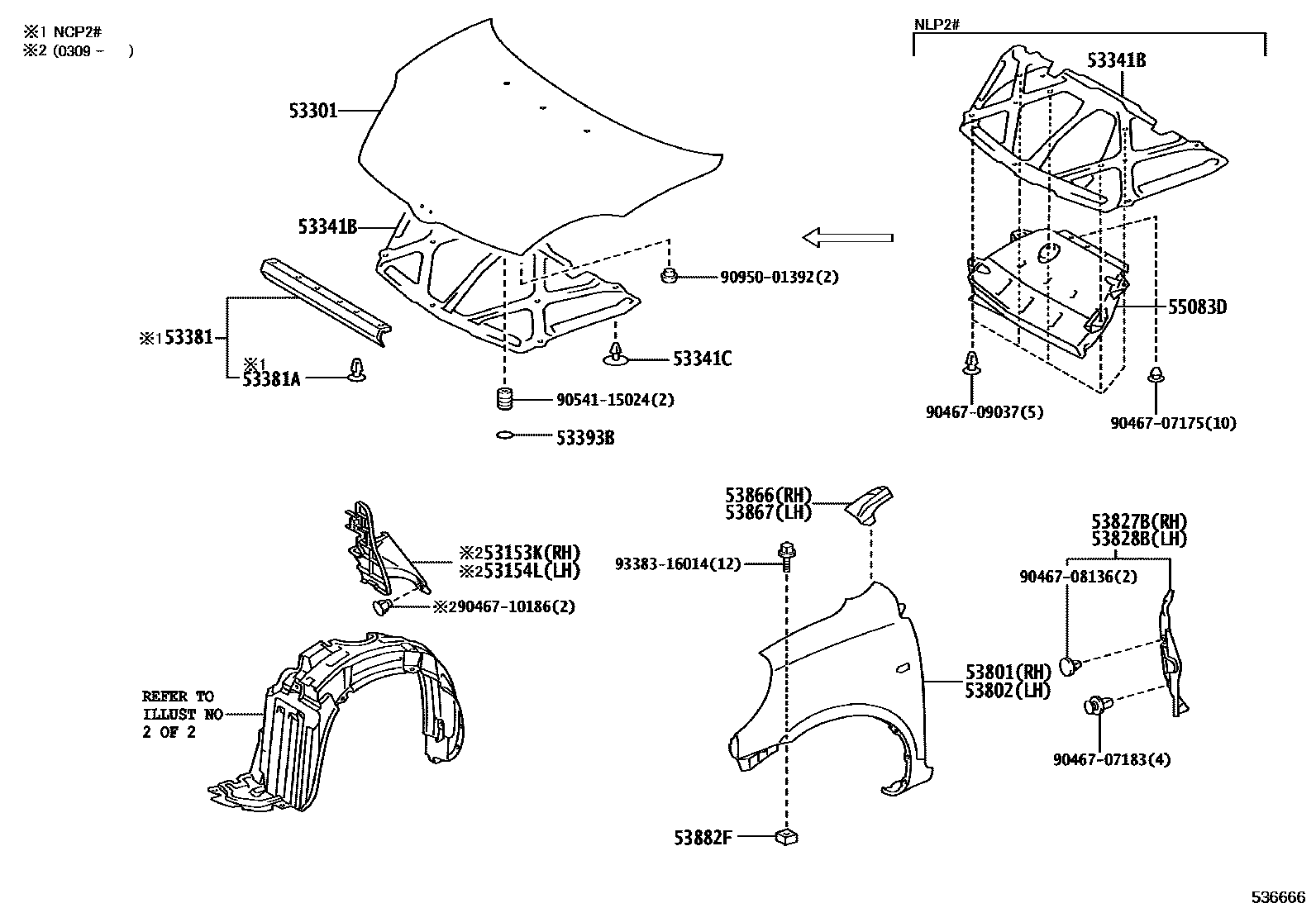

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153K | Radiator grille right deflector | 53153-52020 |
| 53154L | Radiator grille left deflector | 53154-52020 |
| 53301 | Engine cover sub-assembly | 53301-52040 |
| 53341B | engine cover gasket | 53341-52020 · 53341-52060 |
| 53341C | Clip (for engine cover gasket) | 90467-08124 · 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-52010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53393B | Engine cover front protector | 53393-52010 |
| 53801 | Right front fender sub-assembly | 53811-52020 · 53811-52030 |
| 53802 | Left front fender sub-assembly | 53812-52020 · 53812-52030 |
| 53827B | Front fender side panel protectors | 53827-52020 · 53827-52021 |
| 53828B | Left front fender side panel protector | 53828-52020 · 53828-52021 |
| 53866 | Right front fender to cowl side seal | 53866-52020 |
| 53867 | Left front fender to cowl side seal | 53867-52020 |

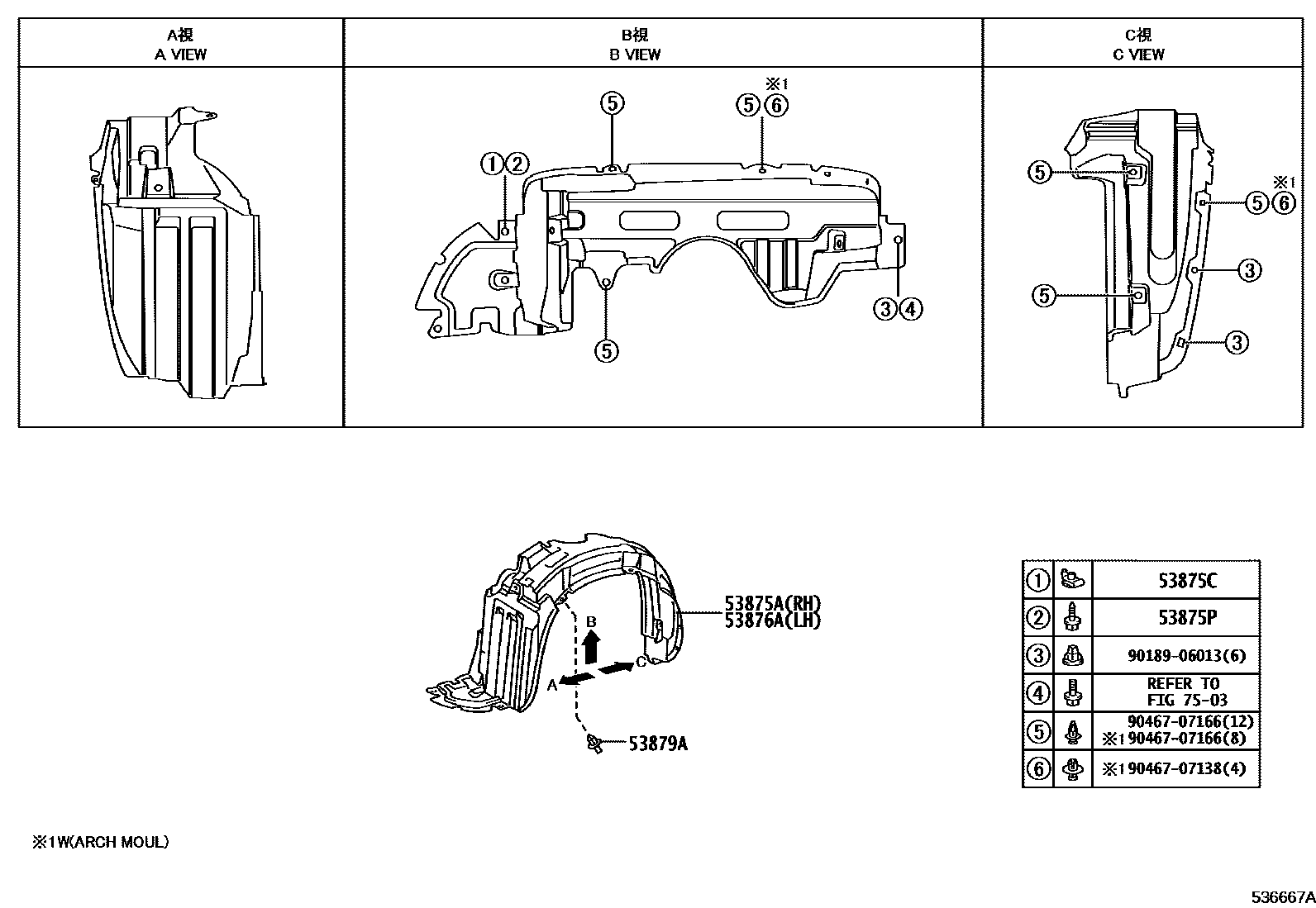

| 53875A | Right front fender lining | 53875-52030 · 53875-52130 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | VIS, NO.1 | 90159-60590 |
| 53876A | Left front fender lining | 53876-52030 · 53876-52120 |
| 53879A | Front fender lining fixing parts | 53879-52010 |
| 53882F | front fender seal | 53882-16030 |
| 55083D | Front ventilation duct sub-assembly | 55083-52020 · 55083-52021 · 55083-52022 |
