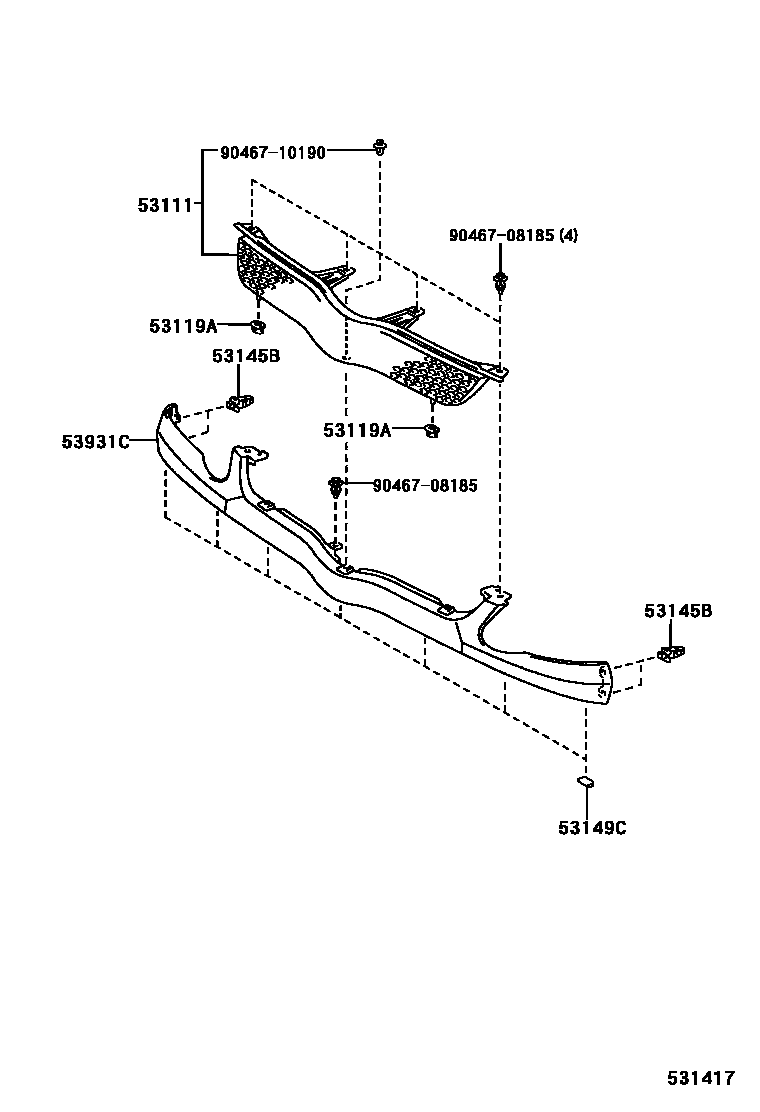

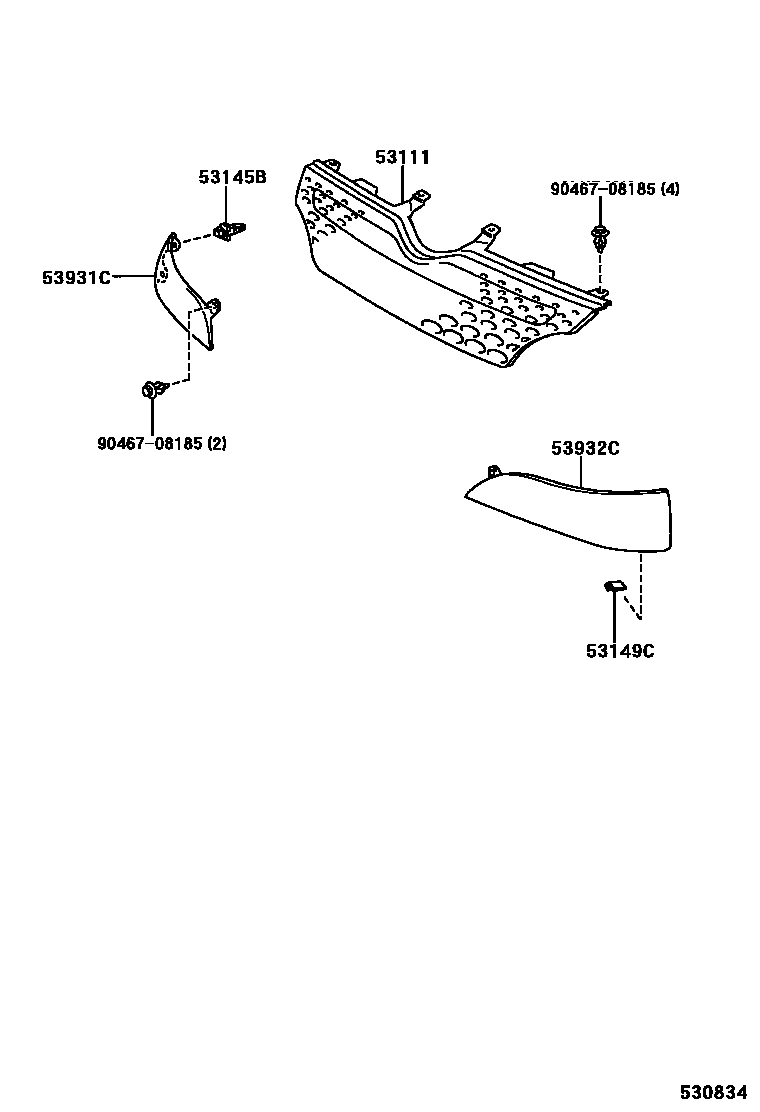

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53111-52050 · 53111-52060 · 53111-52240 · 53111-52250 |
| 53119A | Radiator grille to front fender bumper | 53119-12110 |
| 53145B | Radiator grille trim clip | 53145-52010 |
| 53149C | Radiator grille No. 2 protective cover | 53149-52010 |
| 53931C | front board | 53931-52020 · 53931-52040 |
| 53932C | Left front end panel | 53932-52010 |
