Toyota YARIS 后保险杠及附件 — Figure 5202

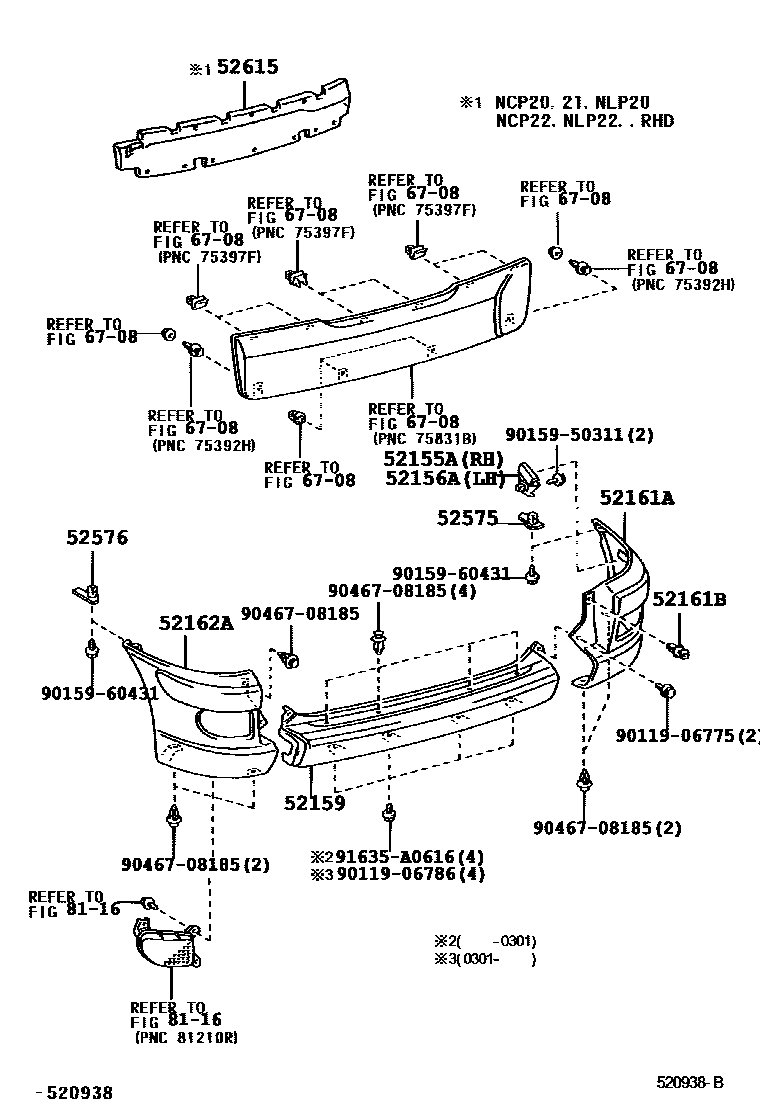

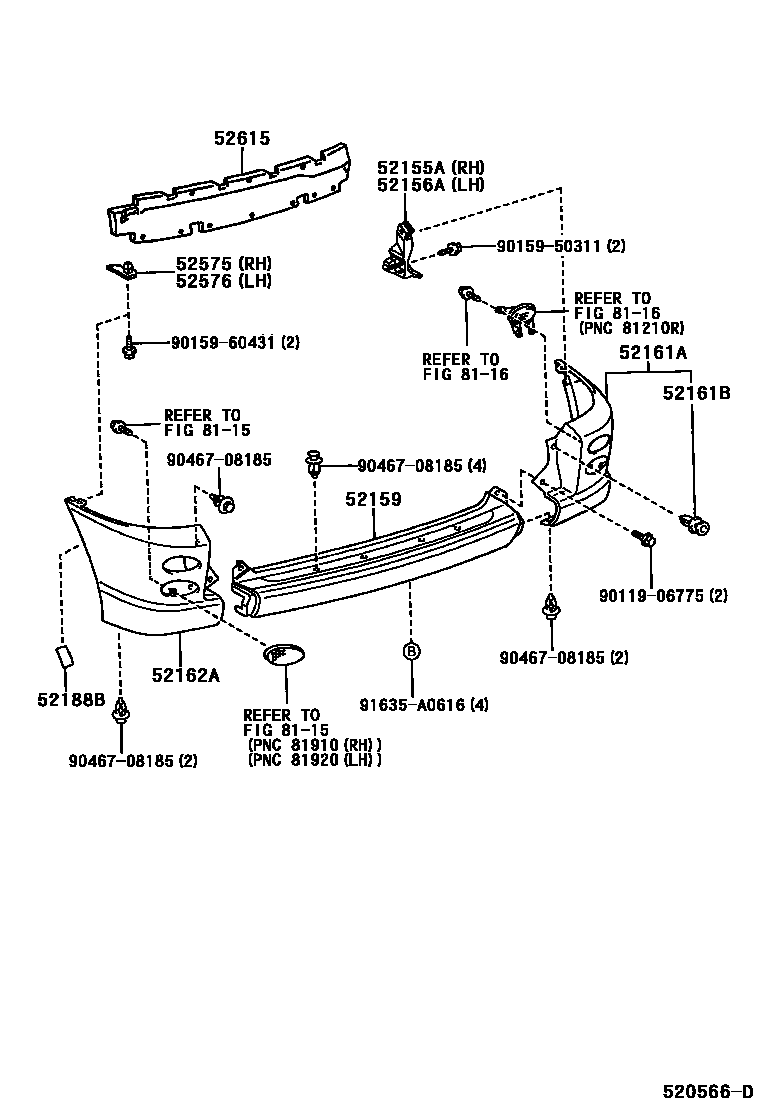

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-52010 · 52155-52050 |
| 52156A | Rear bumper left bracket | 52156-52010 · 52156-52050 |
| 52159 | rear bumper cover | 52159-52050 · 52159-52220 |
| 52161A | Rear bumper right side gap filler | 52150-52090 · 52150-52110 · 52161-52100 |
| 52161B | Rear bumper insert | 76817-52010 |
| 52162A | Rear bumper left insert | 52160-52010 · 52160-52030 · 52162-52090 |
| 52188B | Rear bumper installation spacer | 52188-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-52040 |
| 52576 | Rear bumper left side fixing bracket | 52576-52050 |
| 52615 | Rear bumper energy absorber | 52615-52020 |
