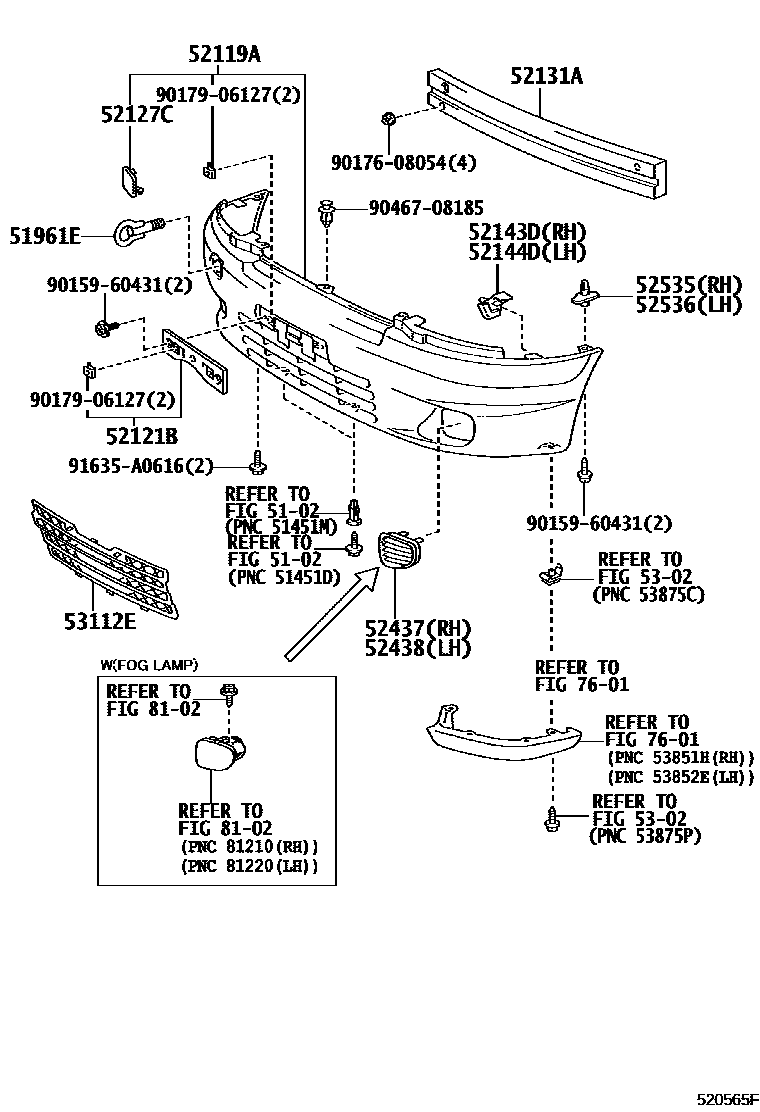

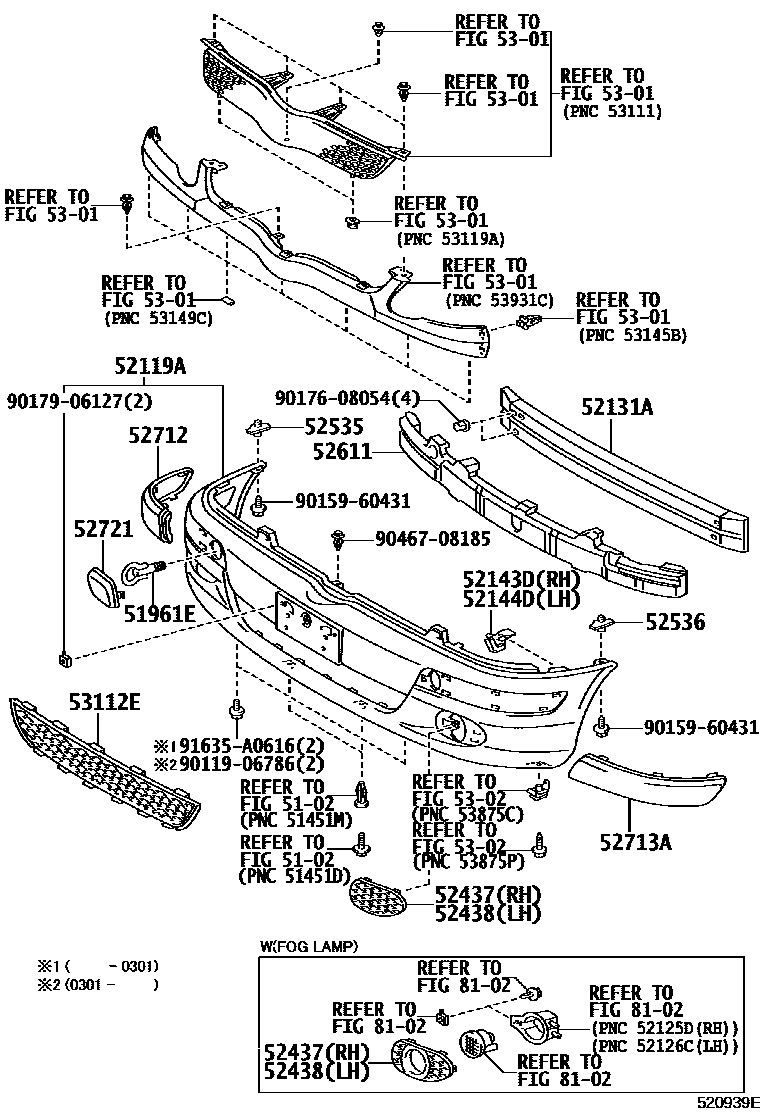

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51961E | front hook | 51960-52010 · 51960-52040 |
| 52119A | front bumper cover | 52110-52900 · 52119-52280 |
| 52121B | Front license plate mounting bracket | 52121-52010 |
| 52127C | Front bumper hole cover | 52127-52030 |
| 52131A | Front bumper reinforcement | 52131-52030 · 52131-52070 · 52131-52240 · 52131-52241 |
| 52143D | Front bumper right side bracket | 52143-52020 · 52143-52120 |
| 52144D | Front bumper left bracket | 52144-52020 · 52144-52110 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-52010 · 52437-52040 · 52437-52050 |
| 52438 | Front bumper left anti-collision bar cover | 52438-52010 · 52438-52040 · 52438-52050 |
| 52535 | Front bumper right side fixing bracket | 52535-52020 |
| 52536 | Front bumper left fixed bracket | 52535-52020 |
| 52611 | front bumper energy absorber | 52611-52030 · 52611-52031 |
| 52712 | Front bumper right side protective strip | 52712-52070 |
| 52713A | Front bumper left protective strip | 52713-52070 |
| 52721 | Front bumper right extension protection strip | 52721-52030 |
| 53112E | No. 1 radiator lower grille | 53112-52040 · 53112-52090 |
