Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

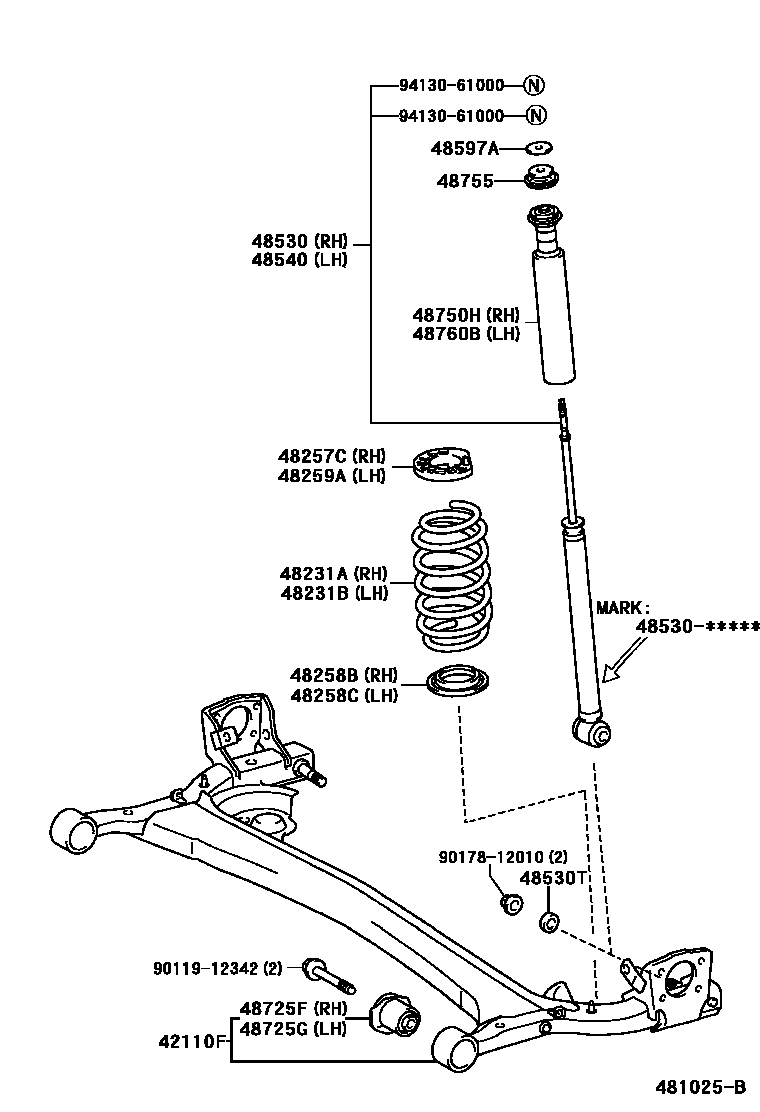

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-52090 · 42110-52100 · 42110-52160 · 42110-52170 |
| 48231A | Right rear coil spring | 48231-52170 · 48231-52200 · 48231-52230 |
| 48231B | Left rear coil spring | 48231-52170 · 48231-52200 · 48231-52230 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-59245 · 48530-59246 · 48530-59247 · 48530-59255 · 48530-59256 · 48530-59257 · 48530-59365 · 48530-80135 · 48530-80136 |
| 48530T | Spacer (for rear shock absorber) | 90560-12065 |
| 48540 | Left rear shock absorber assembly | 48530-59245 · 48530-59246 · 48530-59247 · 48530-59255 · 48530-59256 · 48530-59257 · 48530-59365 · 48530-80135 · 48530-80136 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-52040 |
| 48725G | Left rear axle bracket bushing | 48725-52040 |
| 48750H | Right rear suspension support assembly | 48750-52010 |
| 48755 | rear suspension mount | 48755-52010 |
| 48760B | Left rear suspension support assembly | 48750-52010 |
