Toyota YARIS Front Spring & Shock Absorber — Figure 4803

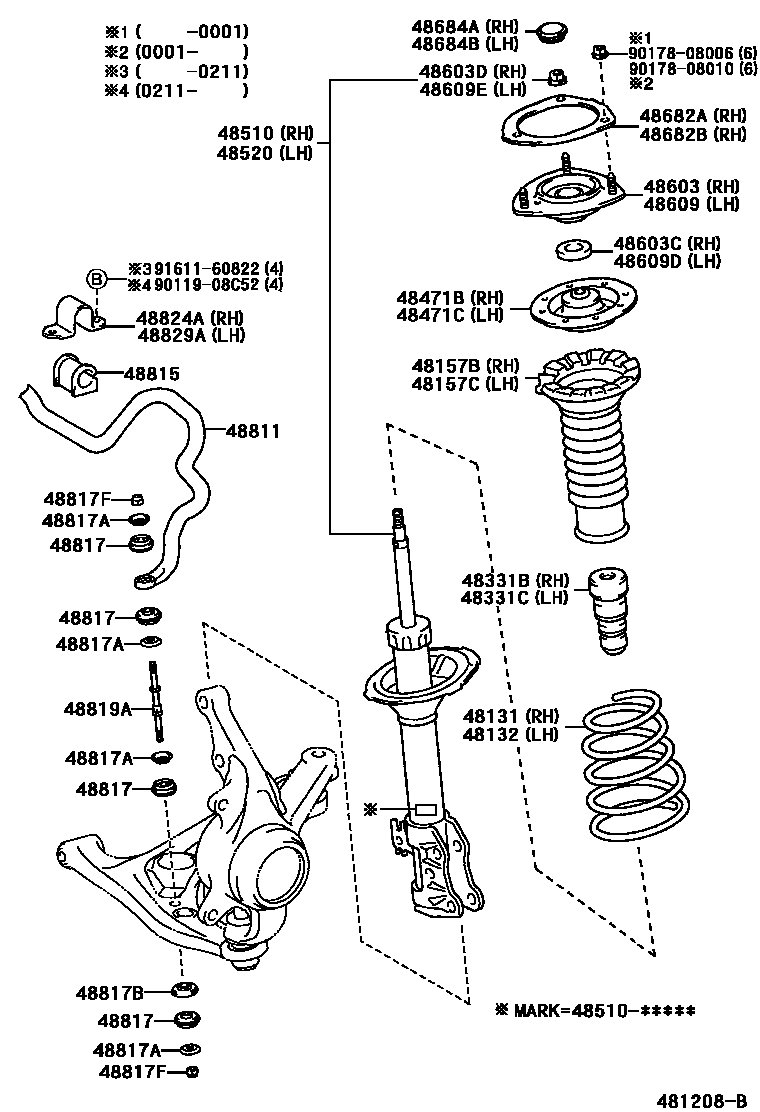

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-52130 · 48131-52150 · 48131-52380 |
| 48132 | Left front coil spring | 48131-52130 · 48131-52150 · 48131-52380 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-52010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-52010 |
| 48331B | Right front spring buffer block | 48331-52010 |
| 48331C | Left front spring buffer block | 48331-52010 |
| 48471B | Front coil spring upper right seat | 48044-52010 |
| 48471C | Front coil spring upper left seat | 48044-52010 |
| 48510 | Right front shock absorber assembly | 48510-59205 · 48510-59206 · 48510-59207 · 48510-59225 · 48510-59226 · 48510-59305 · 48510-59306 · 48510-59307 · 48510-59308 · 48510-59475 |
| 48520 | Left front shock absorber assembly | 48510-59205 · 48510-59206 · 48510-59207 · 48510-59225 · 48510-59226 · 48510-59305 · 48510-59306 · 48510-59307 · 48510-59308 · 48510-59475 |
| 48603 | Right front suspension bearing sub-assembly | 48609-52020 · 48609-52021 · 48609-52030 · 48609-52031 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 · 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-12145 |
| 48609 | Left front suspension bearing sub-assembly | 48609-52020 · 48609-52021 · 48609-52030 · 48609-52031 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 · 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-12145 |
| 48682A | No. 2 right front suspension support | 48682-52010 |
| 48682B | No. 2 left front suspension support | 48682-52010 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48811 | front stabilizer bar | 48811-52060 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-52030 |
| 48817 | Front stabilizer bar cushion | 48817-52010 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02179 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02178 |
| 48817F | Nut (for front stabilizer bar) | 94182-10800 |
| 48819A | front stabilizer bar bolt | 48819-52010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-52030 · 48824-52031 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-52030 · 48824-52031 |
