Toyota YARIS 制动助力器和真空管 — Figure 4703

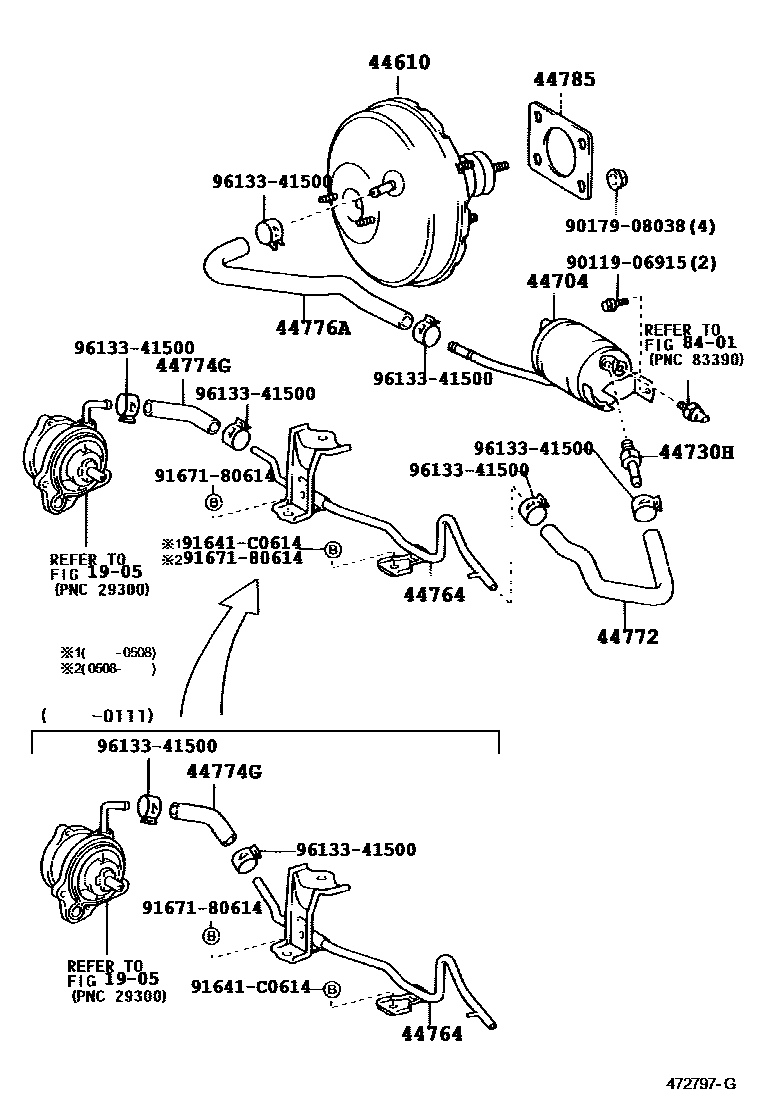

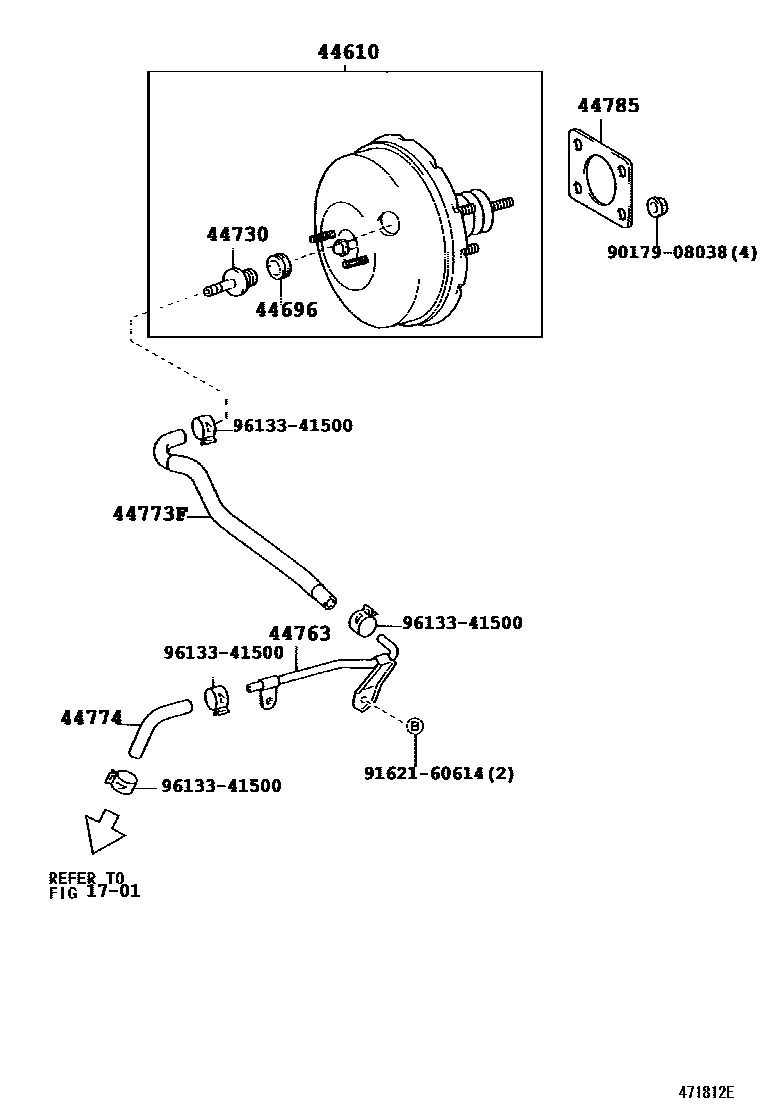

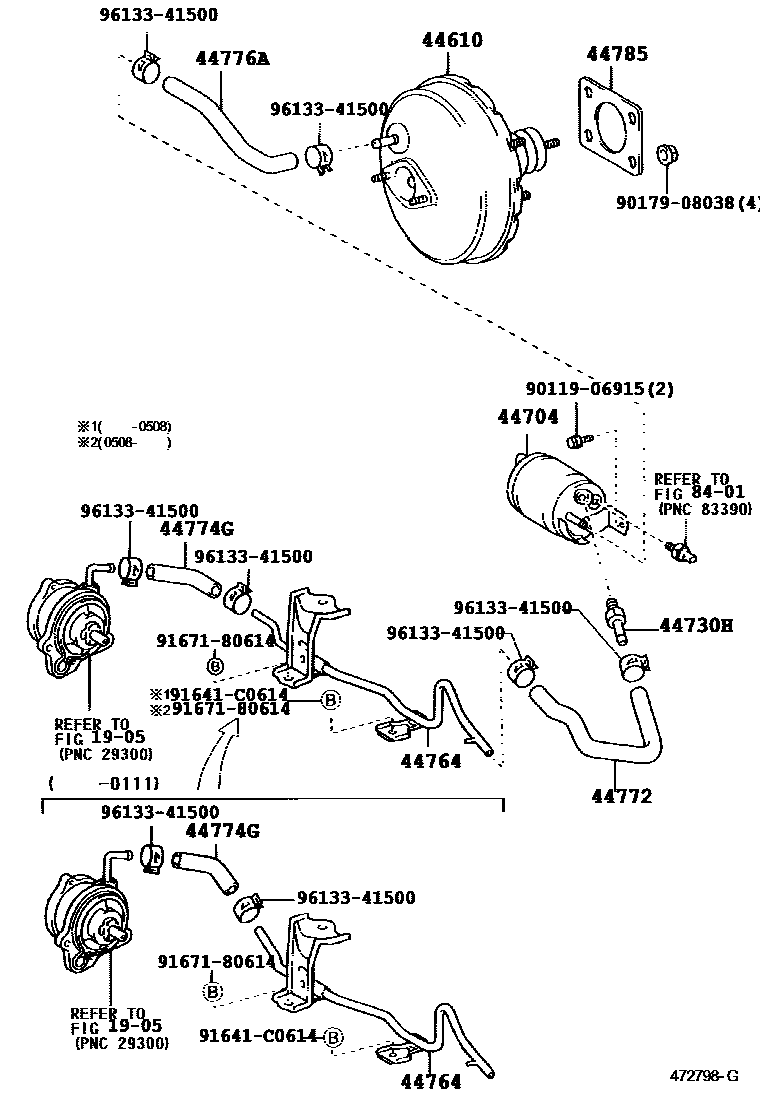

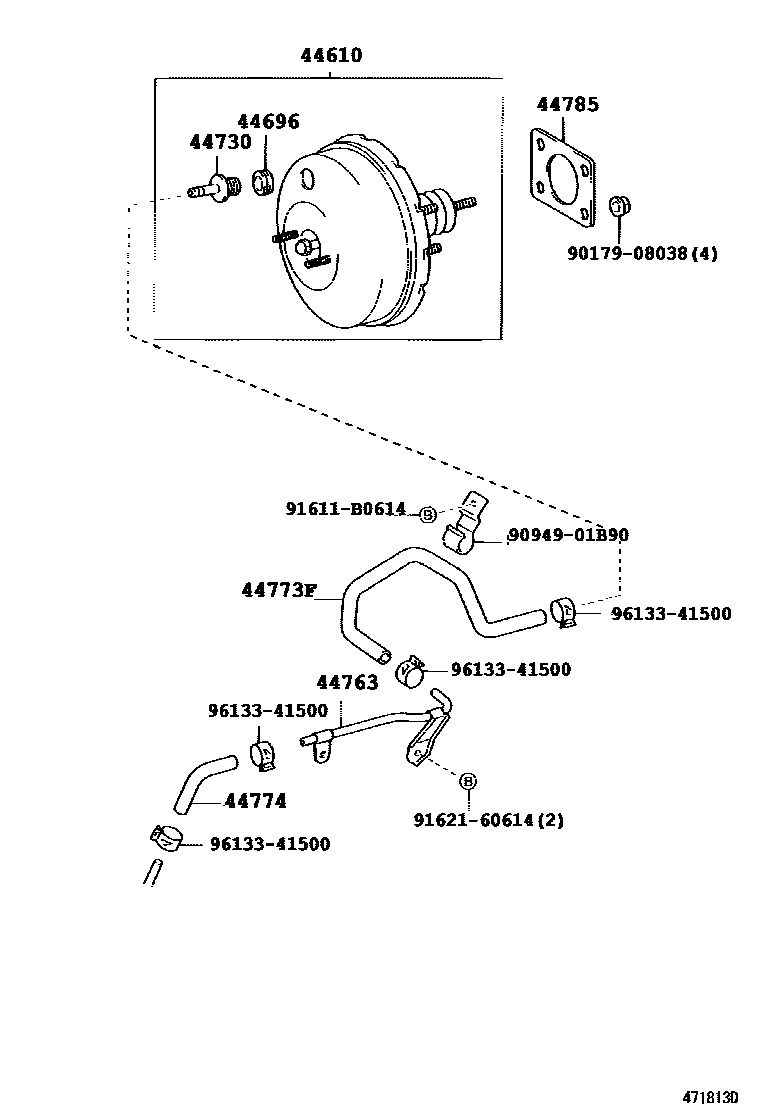

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52040 · 44610-52041 · 44610-52050 · 44610-52051 · 44610-52150 · 44610-52151 · 44610-52160 · 44610-52161 · 44610-52250 · 44610-52251 · 44610-52260 · 44610-52261 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-52010 · 44704-52020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 · 44730-28030 · 44730-30010 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44763 | booster vacuum tube | 44763-52010 |
| 44764 | booster vacuum tube | 44764-52010 · 44764-52011 |
| 44772 | Hoses (check valve to connector tube) | 44772-52010 |
| 44773F | Hoses (connector to check valve) | 44773-52020 · 44773-52040 · 44773-52080 |
| 44774 | Hoses (joints to connector tubes) | 95446-09130 |
| 44774G | Hoses (connector to solenoid valve) | 44774-52020 · 44774-52021 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-52030 · 44776-52040 |
| 44785 | brake booster pad | 44785-16020 |
