Toyota YARIS 变速器油冷却器和配管(ATM) — Figure 3514

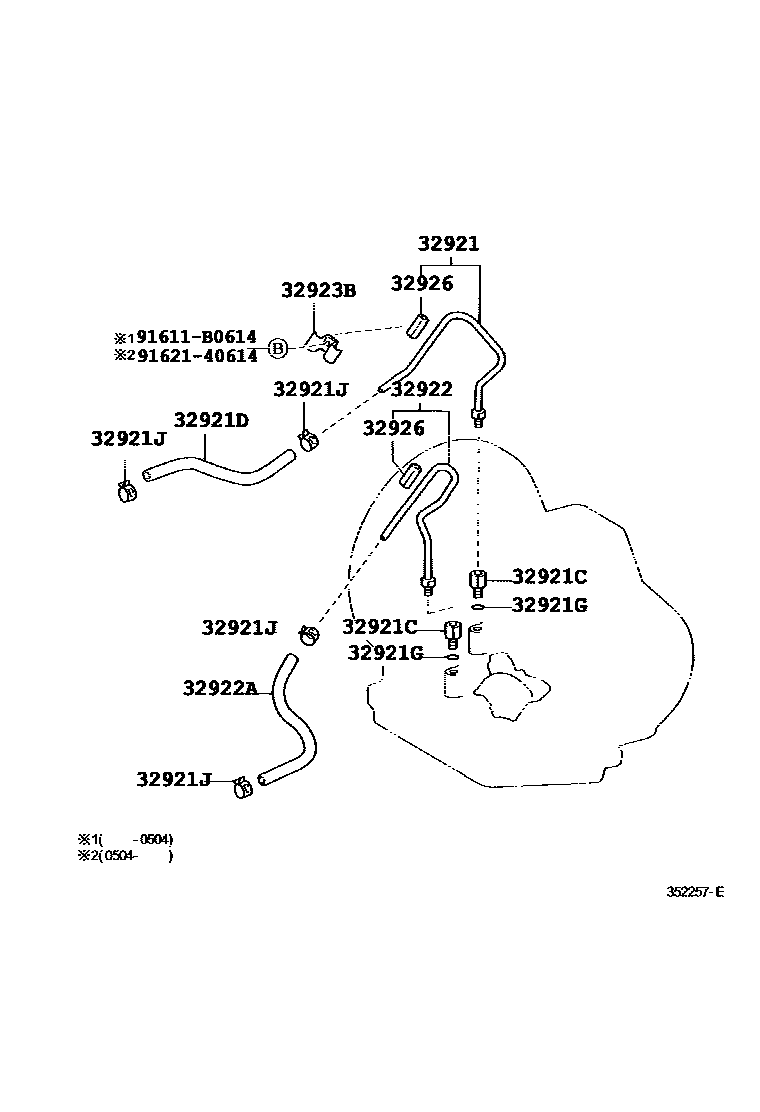

Toyota YARIS EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-52030 · 32921-52100 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-15042 · 90445-15054 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-13039 · 96135-51300 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-52030 · 32922-52090 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15015 · 90445-15034 · 90445-15050 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 90462-10127 · 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 · 32926-30011 |
