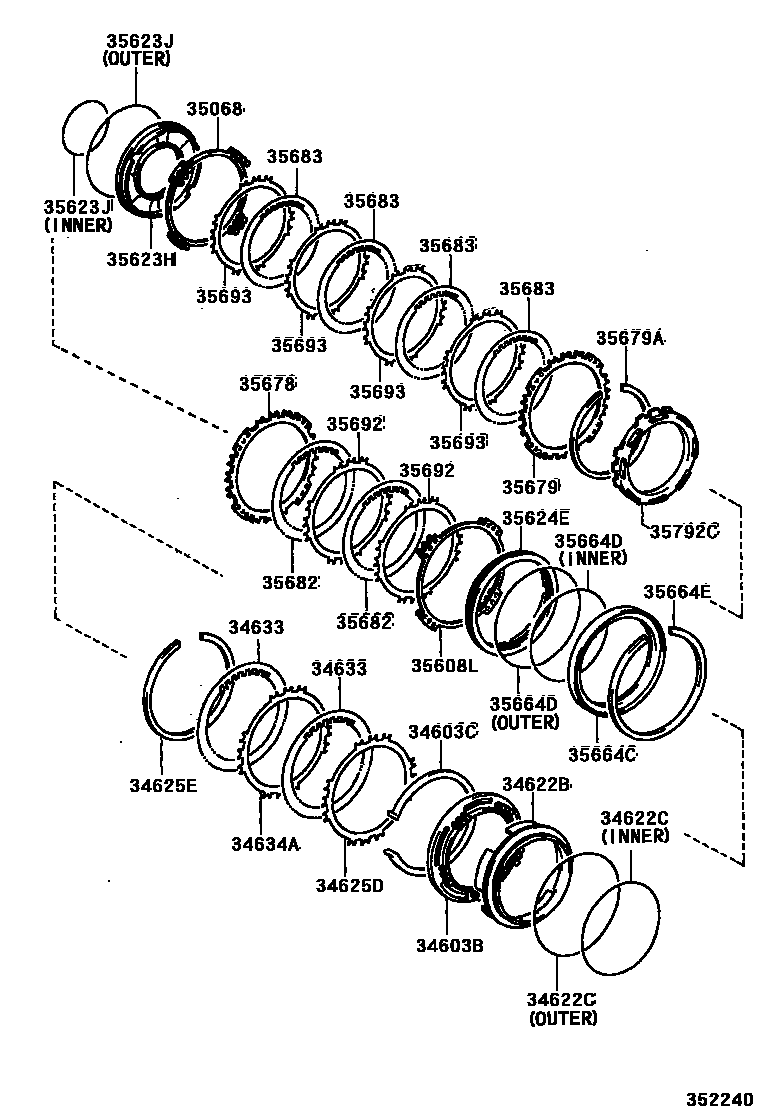

Toyota YARIS 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota YARIS EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34603B | Overdrive brake return spring sub-assembly | 34603-52010 |
| 34603C | Hole snap ring (for overdrive brake return spring) | 90520-99047 |
| 34622B | Second gear coast and overdrive brake piston | 34622-52010 |
| 34622C | O-ring (for second gear coasting and overdrive) | 90301-99113 · 90301-99115 |
| 34625D | Second gear coast and overdrive brake flange | 34625-52010 · 34625-52020 · 34625-52030 · 34625-52040 · 34625-52050 · 34625-52100 |
| 34625E | Hole snap ring (for 2nd gear coast and overdrive brake flange) | 90520-99046 |
| 34633 | Second gear coast and overdrive brake disc | 34633-52030 |
| 34634A | Second gear coast and overdrive brake pads | 34634-52010 |
| 35068 | First and reverse brake return spring sub-assembly | 35068-52020 |
| 35608L | Second gear brake piston return spring sub-assembly | 35608-52010 |
| 35623H | First and reverse brake piston | 35623-52020 |
| 35623J | O-ring (for first and reverse brakes) | 90301-97001 · 90301-99113 |
| 35624E | Second gear brake piston | 35624-52010 |
| 35664C | Second gear brake cylinder | 35664-52010 |
| 35664D | O-ring (for second gear brake cylinder) | 90301-99114 · 90301-99116 |
| 35664E | Hole snap ring (for second gear brake cylinder) | 90520-99046 |
| 35678 | Brake flange (for second gear brake) | 35678-52010 |
| 35679 | Brake flange (for first and reverse gears) | 35679-52010 |
| 35679A | Hole snap ring (for brake flange) | 90520-99042 |
| 35682 | Brake disc (for second gear brake) | 35682-52010 |
| 35683 | Brake disc (for first and reverse gears) | 35683-52020 |
| 35692 | Brake pads (for second gear brake) | 35692-52010 |
| 35693 | Brake pads (for first and reverse gears) | 35693-52020 |
| 35792C | No. 2 one-way clutch | 35792-52010 |
