Toyota YARIS Shift Lever & Retainer — Figure 3312

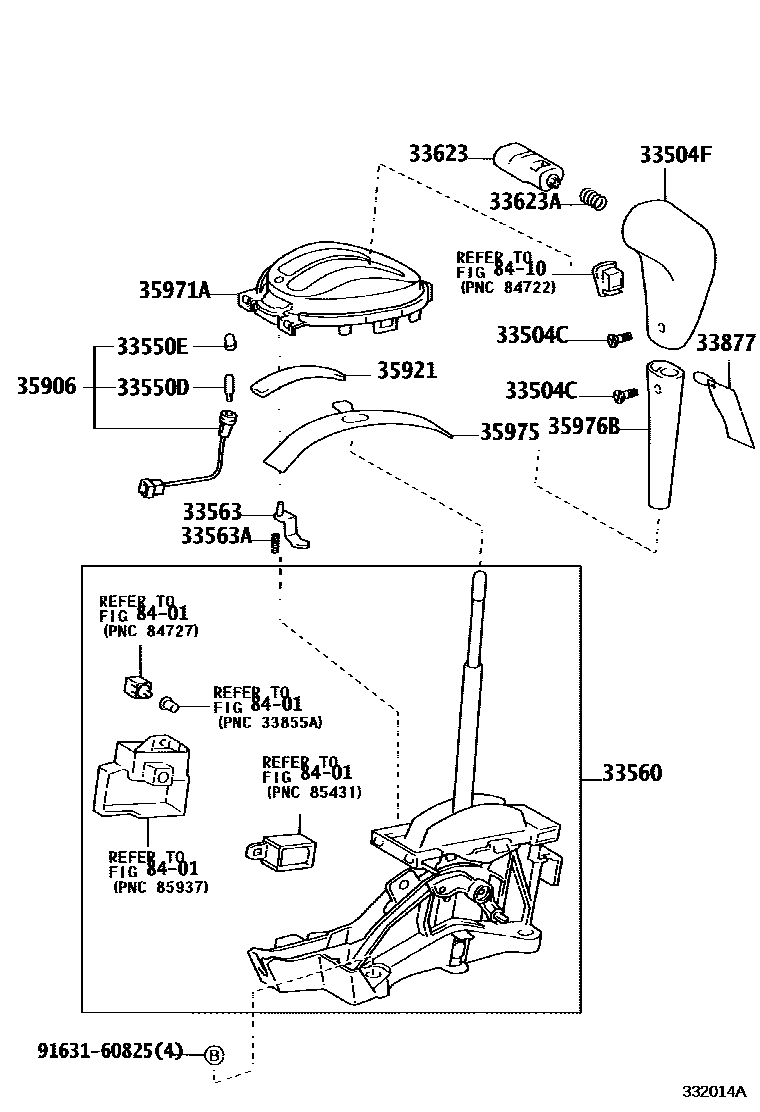

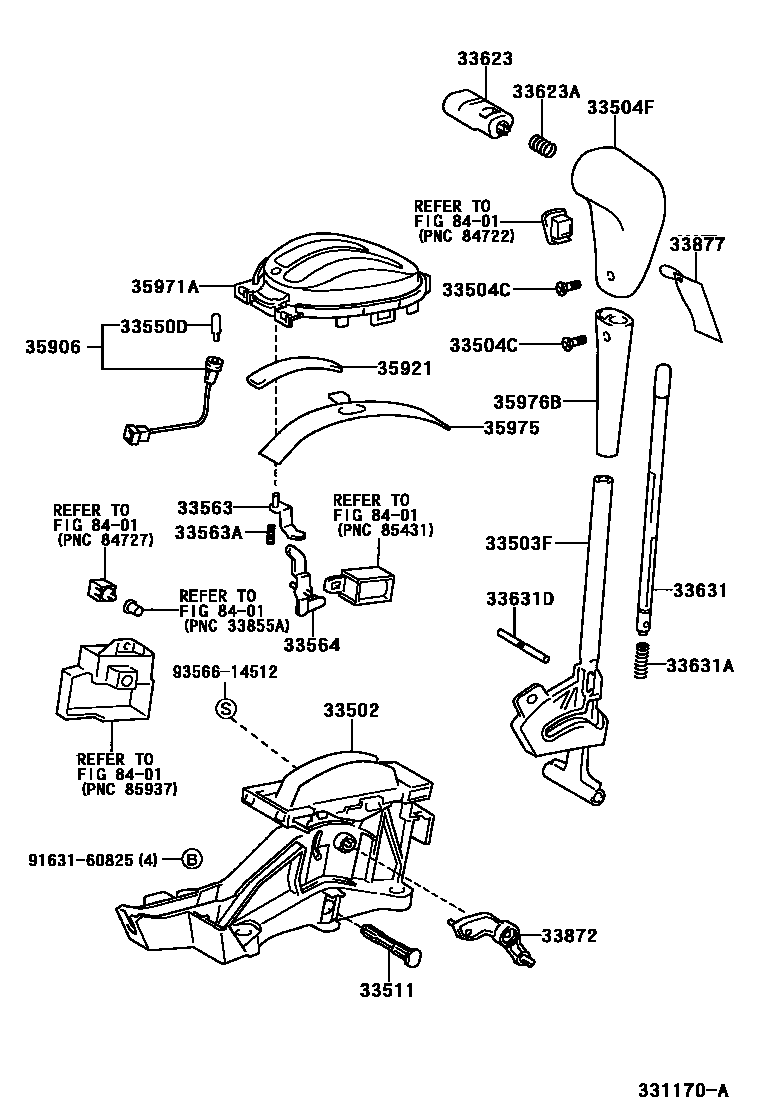

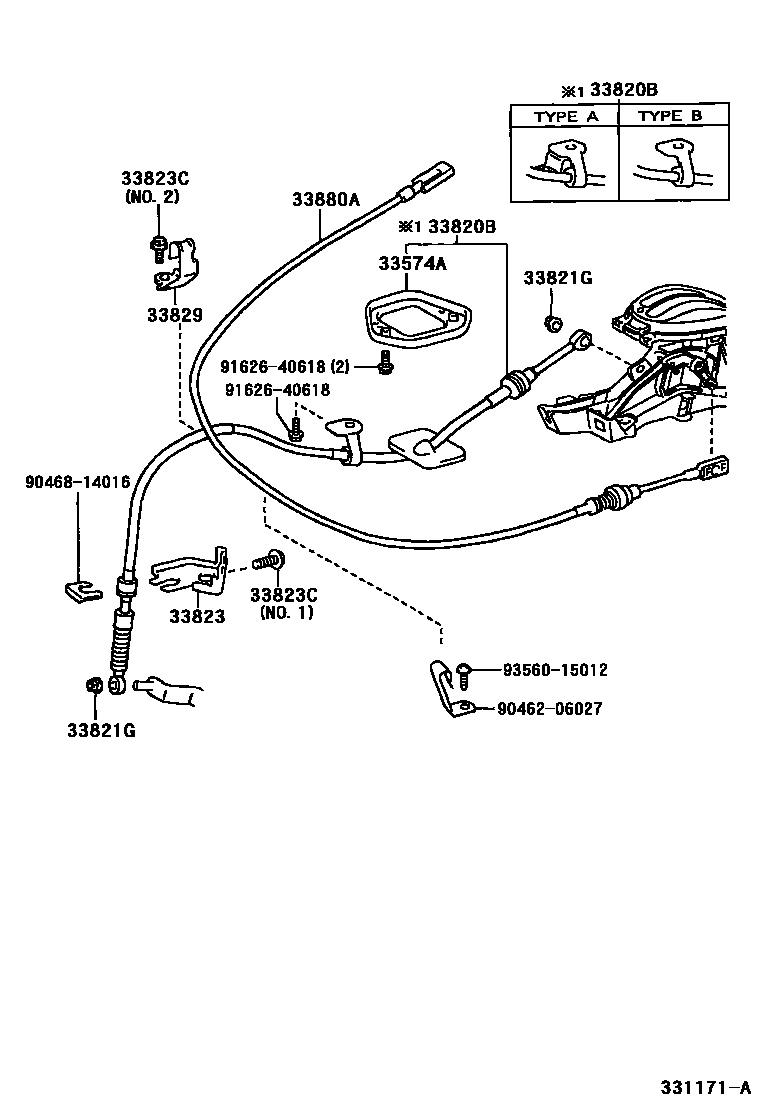

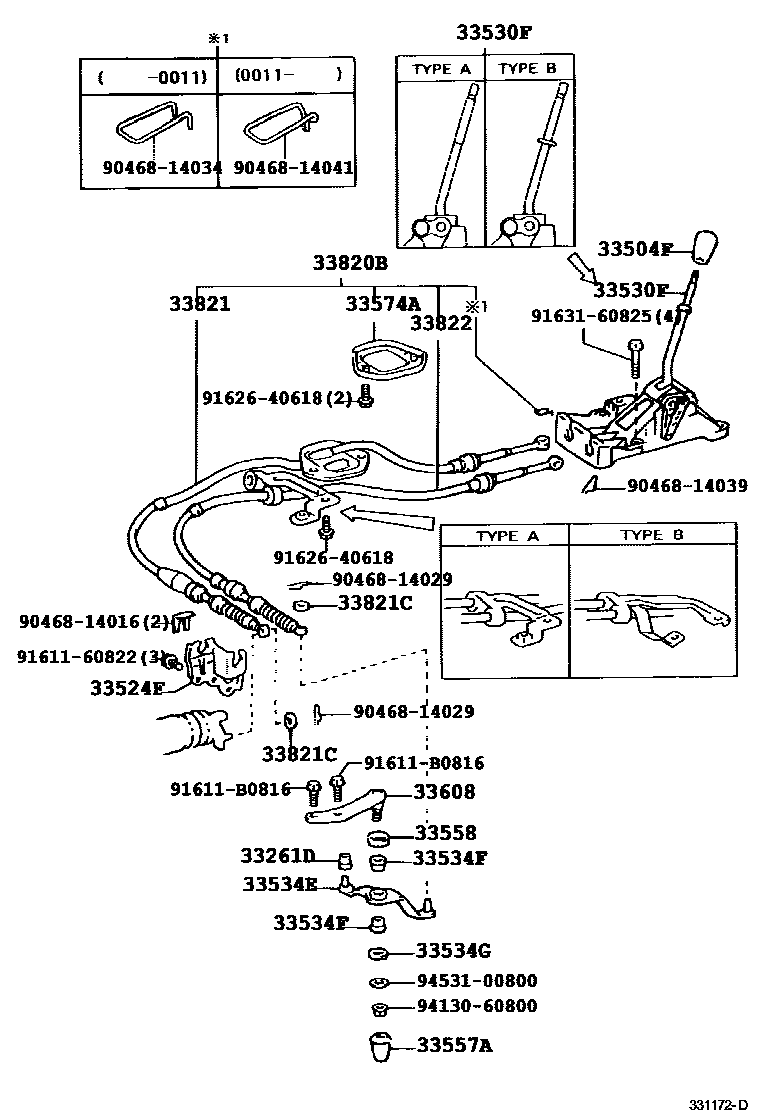

Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33502 | Shift lever base plate sub-assembly | 33521-52011 · 33521-52021 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-52010 |
| 33504C | Screw (for securing shift lever knob) | 90159-40221 |
| 33511 | Control shaft (for floor shifting) | 33511-16060 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52030 · 33530-52140 |
| 33534E | No. 2 gear selection right-angle lever | 33534-52010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 35956-52030 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-52020 · 33560-52030 · 33560-52090 · 33560-52100 |
| 33563 | Shift lock release button | 33563-52030 |
| 33563A | Compression spring (for shift lock release button) | 90501-05055 |
| 33564 | No. 1 shift lock release link | 33564-52010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-52010 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-52010 · 33608-52020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-06082 |
| 33631 | Locking lever | 33631-52010 |
| 33631A | Compression spring (for locking lever) | 90501-09105 |
| 33631D | Grooved pin (for locking lever) | 33632-52010 |
| 33820B | Transmission control cable assembly | 33820-52020 · 33820-52021 · 33820-52022 · 33820-52040 · 33820-52172 · 33820-52181 · 33820-52182 · 33820-52230 · 33820-52240 · 33820-52280 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-52020 · 33821-52021 · 33821-52022 · 33821-52102 · 33821-52140 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-52020 · 33822-52021 · 33822-52051 · 33822-52070 |
| 33823 | No. 1 transmission control cable bracket | 33823-52020 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 · 91621-J0814 |
| 33829 | Transmission control cable bracket | 33829-52020 |
| 33872 | No. 2 shift lock release link | 33872-52010 |
| 33877 | Shift lock information label No. 1 | 33877-50030 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-52010 · 33880-52020 · 33880-52021 · 33880-52060 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-52010 · 35906-52020 |
| 35921 | control position indicator board | 35921-52010 · 35921-52020 |
| 35971A | Position indicator light upper shell | 35971-52020 · 35971-52030 · 35971-52110 · 35971-52140 |
| 35975 | Slide cover (for position indicator light) | 35975-52010 · 35975-52030 |
