Toyota YARIS 控制轴和横轴 — Figure 3311

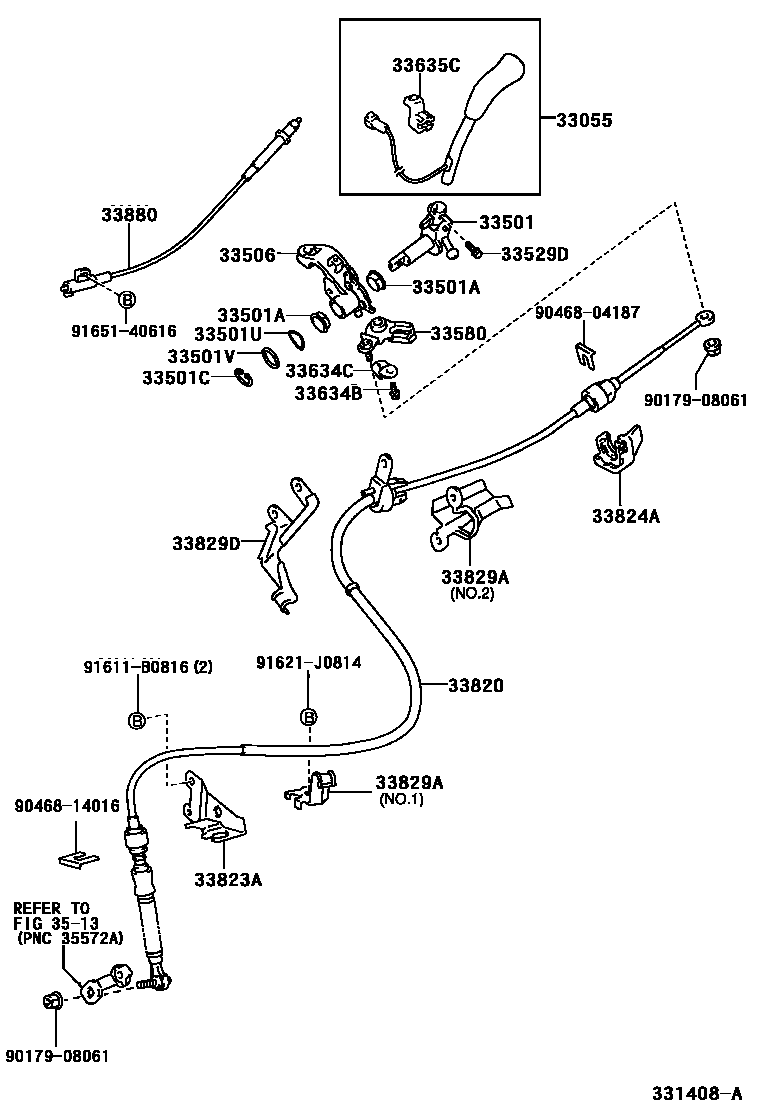

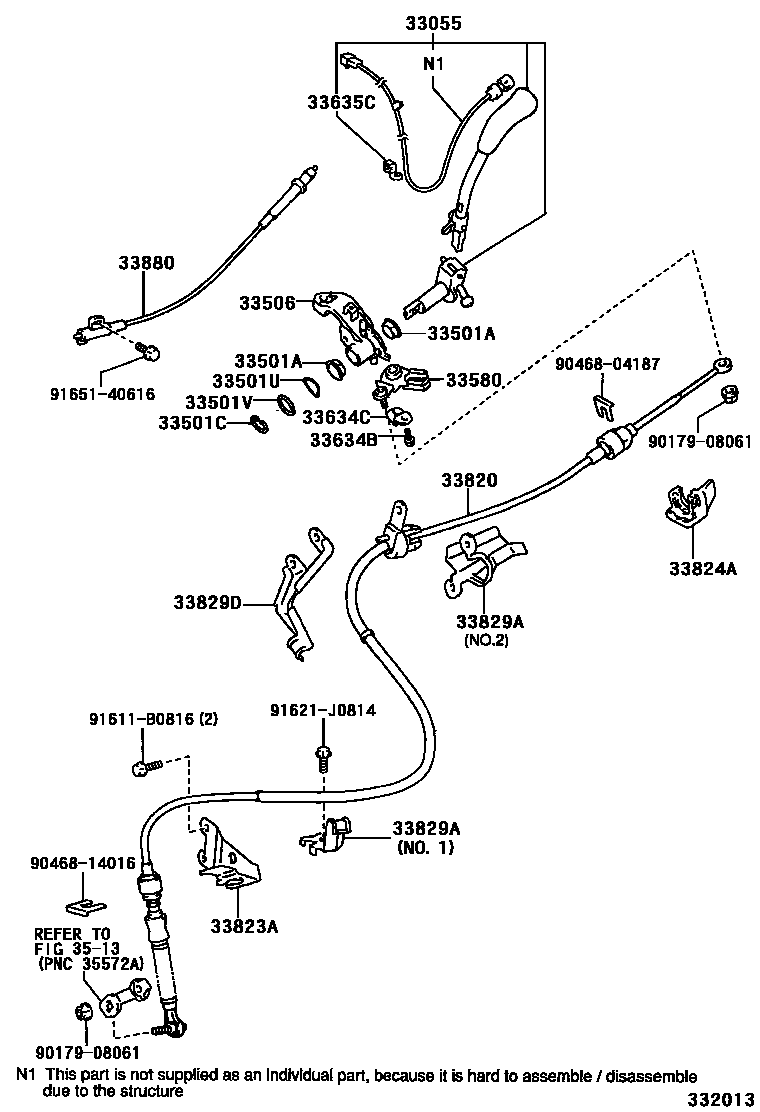

Toyota YARIS EPC diagram 3311, 控制轴和横轴, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33055 | Steering wheel type shift lever sub-assembly | 33055-52031 · 33501-52020 |
| 33501 | Control shaft sub-assembly (for steering wheel gear shifting) | 33501-52011 · 33501-52012 |
| 33501A | Bushing (for steering wheel shift control shaft) | 90386-20007 · 90386-21002 |
| 33501C | Ring (for control axis) | 96150-02000 |
| 33501U | Wave washer (for steering wheel-mounted shift lever) | 90206-21002 |
| 33501V | Spacer (for steering wheel-mounted shift lever) | 90560-22005 · 90564-21001 |
| 33506 | Shift control lever stopper sub-assembly (for steering wheel-type shifting) | 33506-52021 · 33506-52022 |
| 33529D | shift lever bolt | 33529-32010 |
| 33580 | Shift right-angle lever assembly (for steering wheel-type shifting) | 33580-52010 |
| 33634B | Bolt (for harness protector) | 33529-52010 |
| 33634C | Shift lever harness connector bracket | 33634-32010 |
| 33635C | cable guide | 33635-52010 |
| 33820 | Transmission control cable assembly (for steering wheel-type shifting) | 33820-52061 · 33820-52300 |
| 33823A | Transmission control cable bracket | 33823-52020 |
| 33824A | Transmission control cable cover | 33824-52010 |
| 33829A | Transmission control cable bracket | 33829-52020 · 33829-52050 |
| 33829D | Transmission control cable bracket | 33829-52040 · 33829-52070 |
| 33880 | Parking lock cable assembly (for steering wheel gearshift) | 33880-52030 |
