Toyota YARIS 离合器踏板和挠性软管 — Figure 3102

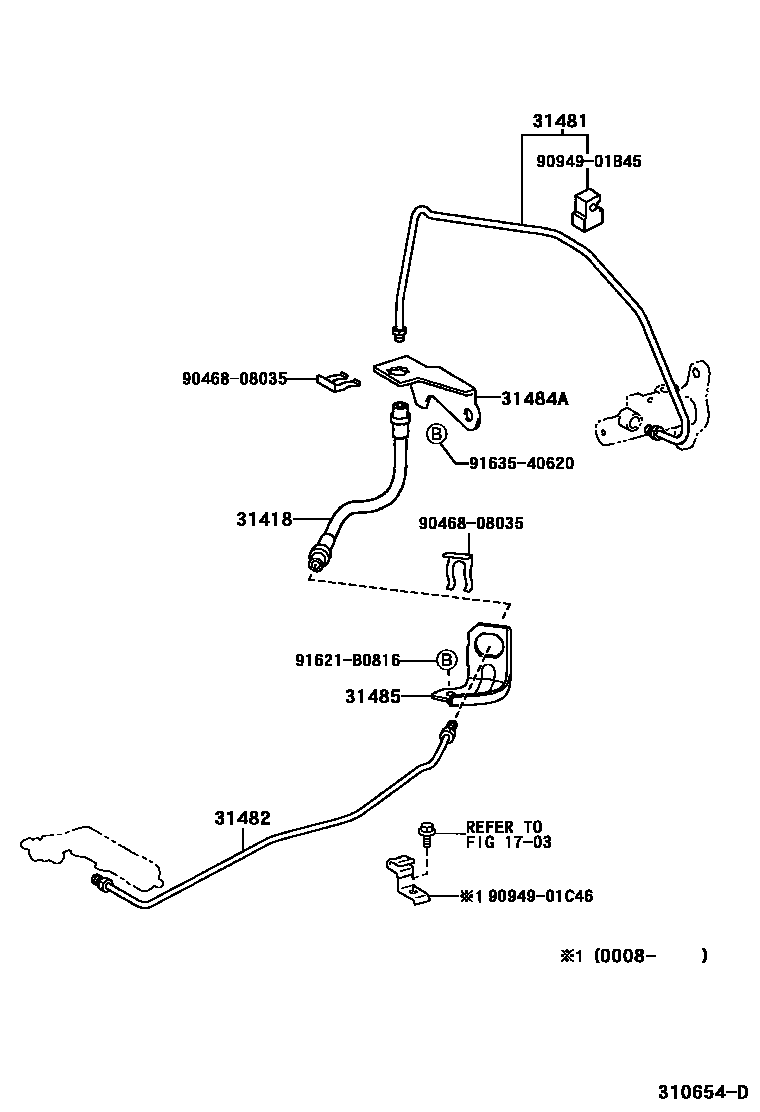

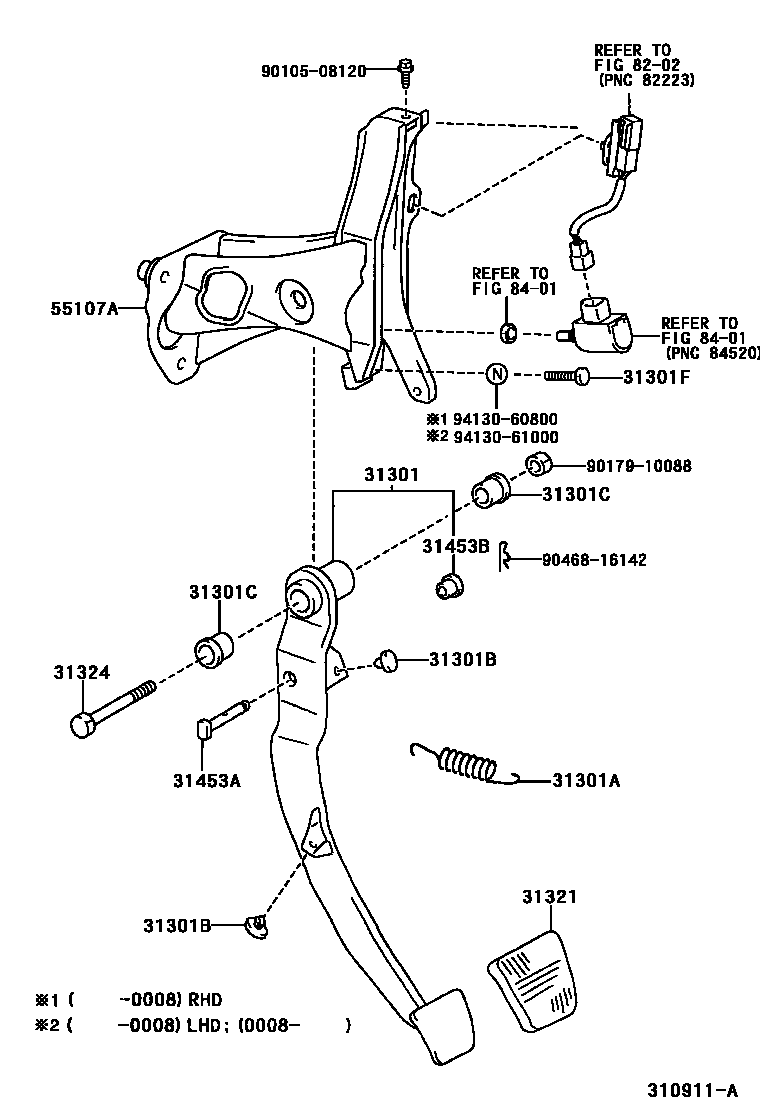

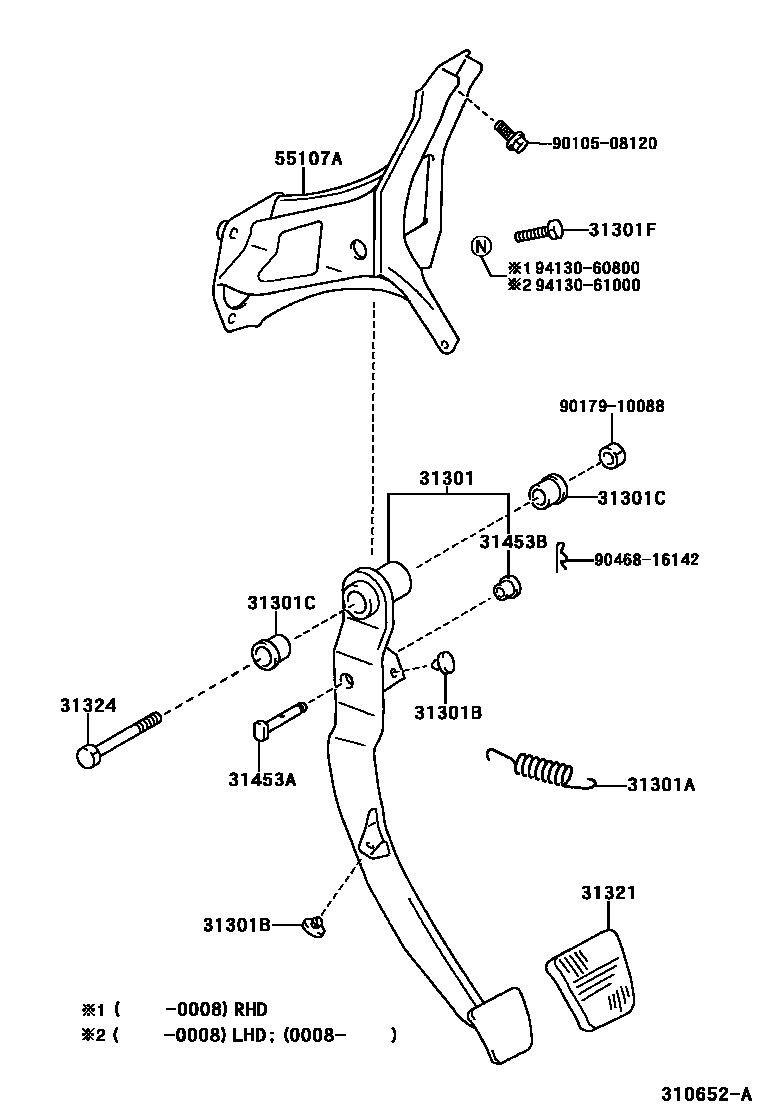

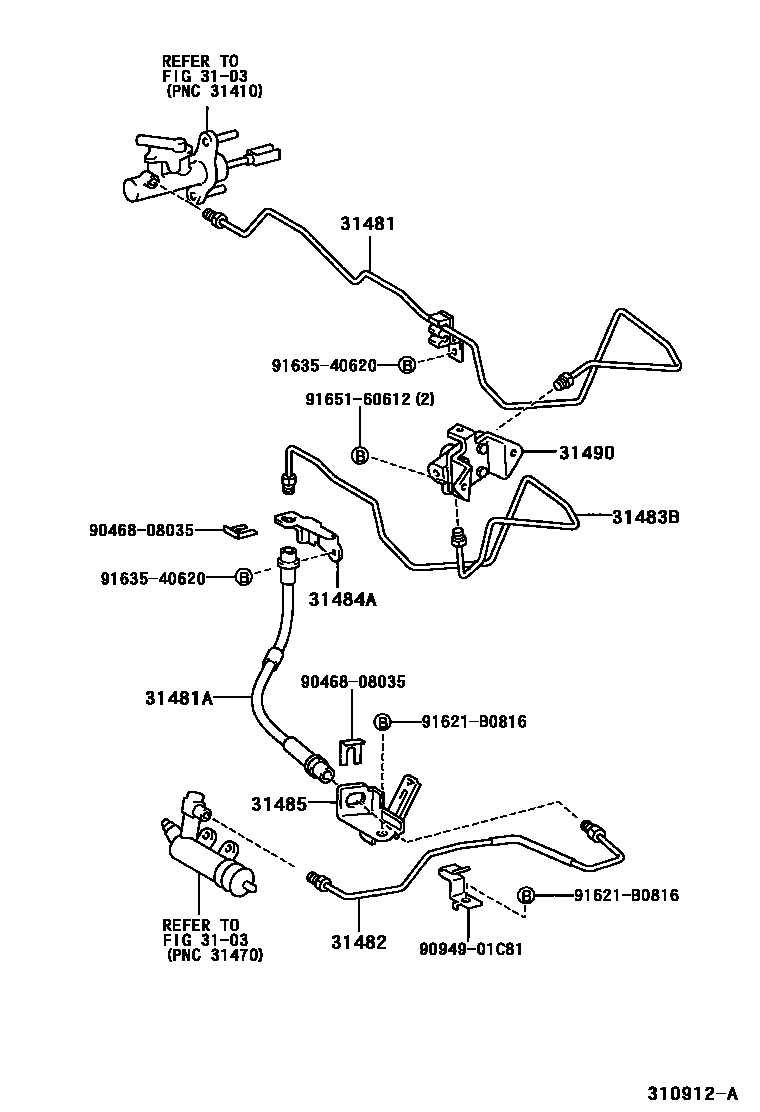

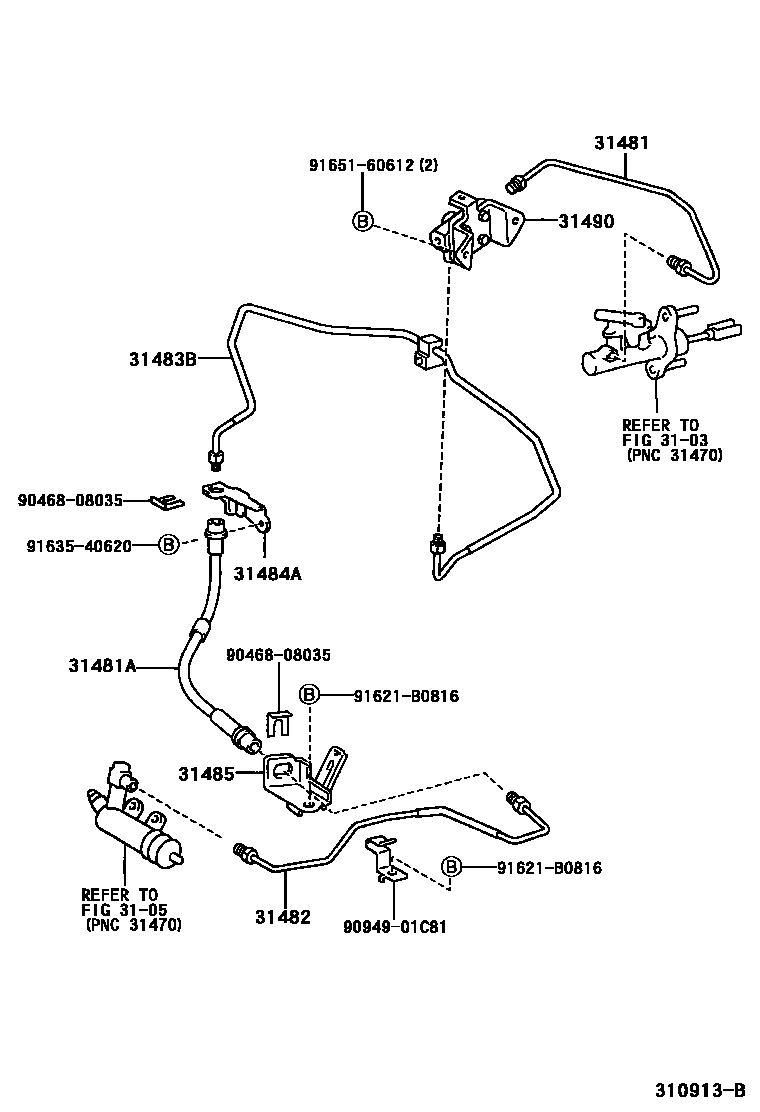

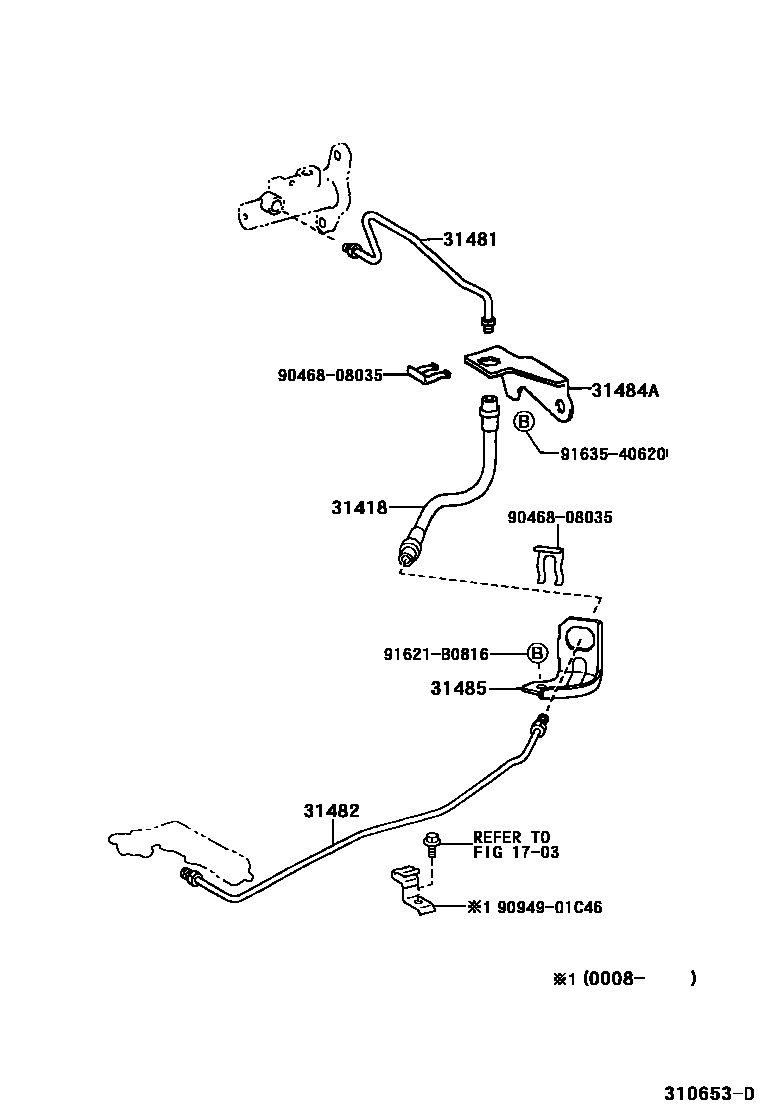

Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-52010 · 31301-52020 · 31301-52060 · 31301-52070 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-08052 · 90101-10369 · 91112-41025 · 91112-61025 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31324 | clutch pedal shaft | 90109-10167 |
| 31418 | clutch hose | 90931-01137 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08243 · 90249-08294 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-52010 · 31481-52020 · 31481-52030 · 31481-52060 · 31481-52070 |
| 31481A | No. 1 clutch hose | 90947-02D17 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-52020 · 31482-52060 |
| 31483B | Accumulator to flexible hose pipe | 31483-52030 · 31483-52041 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-52010 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-52020 · 31485-52010 |
| 31490 | Clutch pressure accumulator assembly | 31490-52010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-52010 · 55107-52011 · 55107-52021 · 55107-52040 · 55107-52070 · 55107-52080 |
