Toyota YARIS fuel filter — Figure 2302

Toyota YARIS EPC diagram 2302, fuel filter, with 2 images and 8 PNC and OE references.

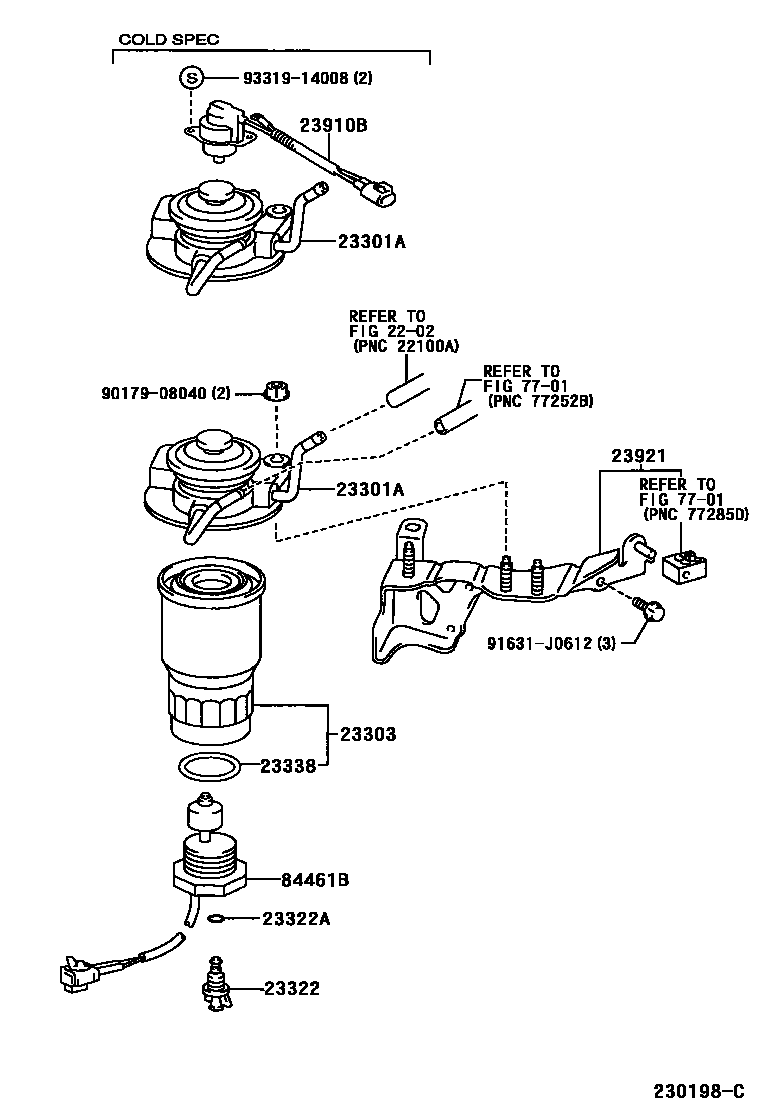

Toyota YARIS fuel filter EPC diagram — 230198C
fuel filter — 230198C (200110 – 200206)

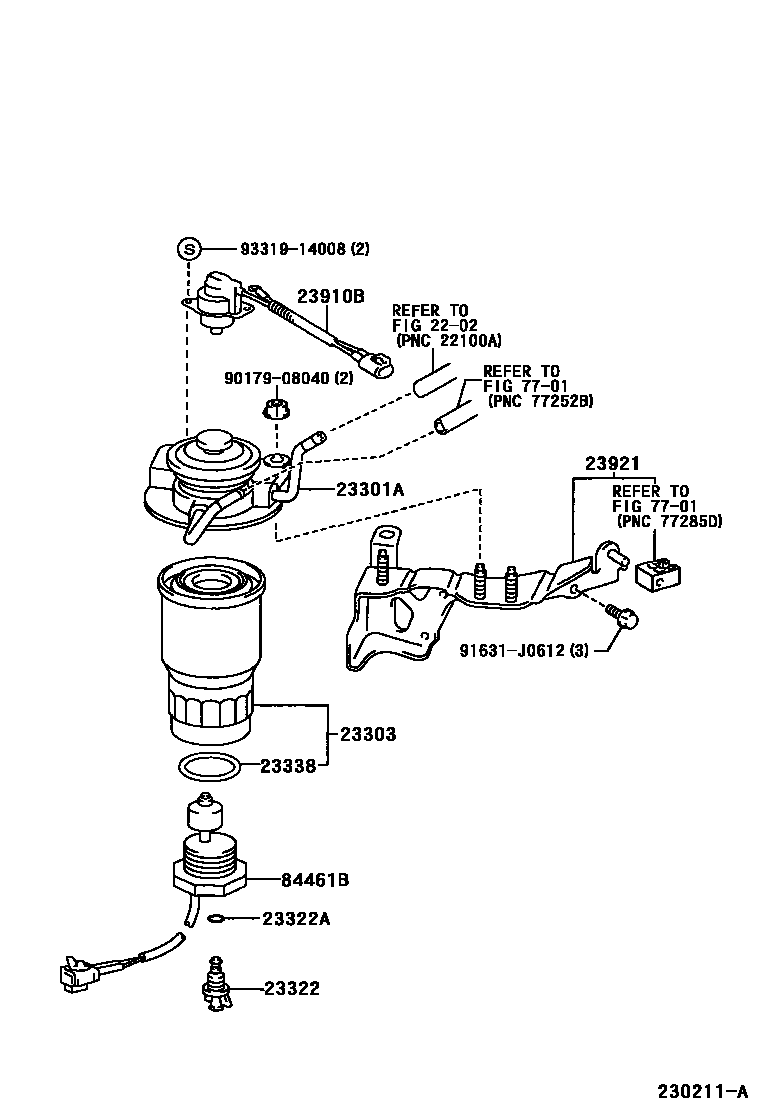

Toyota YARIS fuel filter EPC diagram — 230211A
fuel filter — 230211A (200206 – 999999)

PNC and OE references

PNCPart nameOE numbers
23301AFuel filter cover assembly23380-33010 · 23380-33020
23303Fuel filter element sub-assembly23390-33010
23322Drain plug (for fuel filter)23388-64470
23322AO-ring (for drain plug)23344-54010
23338Gasket (for warning switch)23344-64010
23910BFuel heater assembly23910-54100
23921Fuel filter support23904-33010
84461BLiquid level warning switch84461-28040
