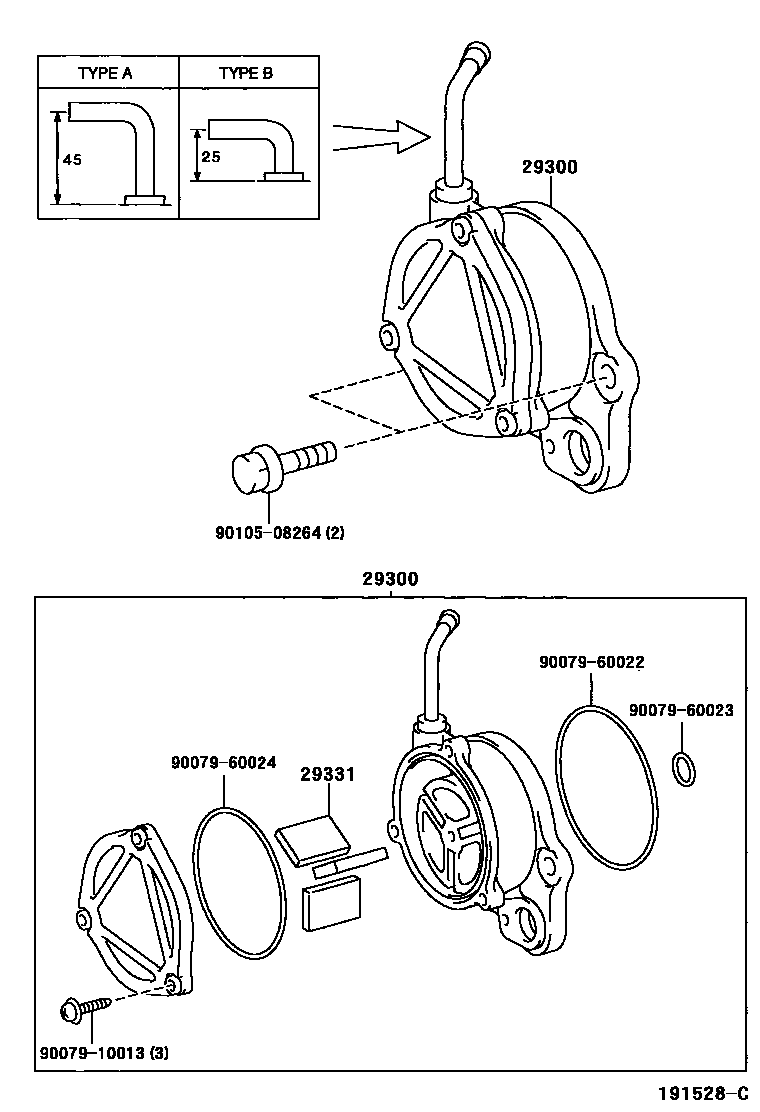

Toyota YARIS 真空泵 — Figure 1905
Toyota YARIS EPC diagram 1905, 真空泵, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-33011 · 29300-33012 |
| 29331 | Vacuum pump A blade | 29331-33010 |
