Toyota YARIS 起动机 — Figure 1904

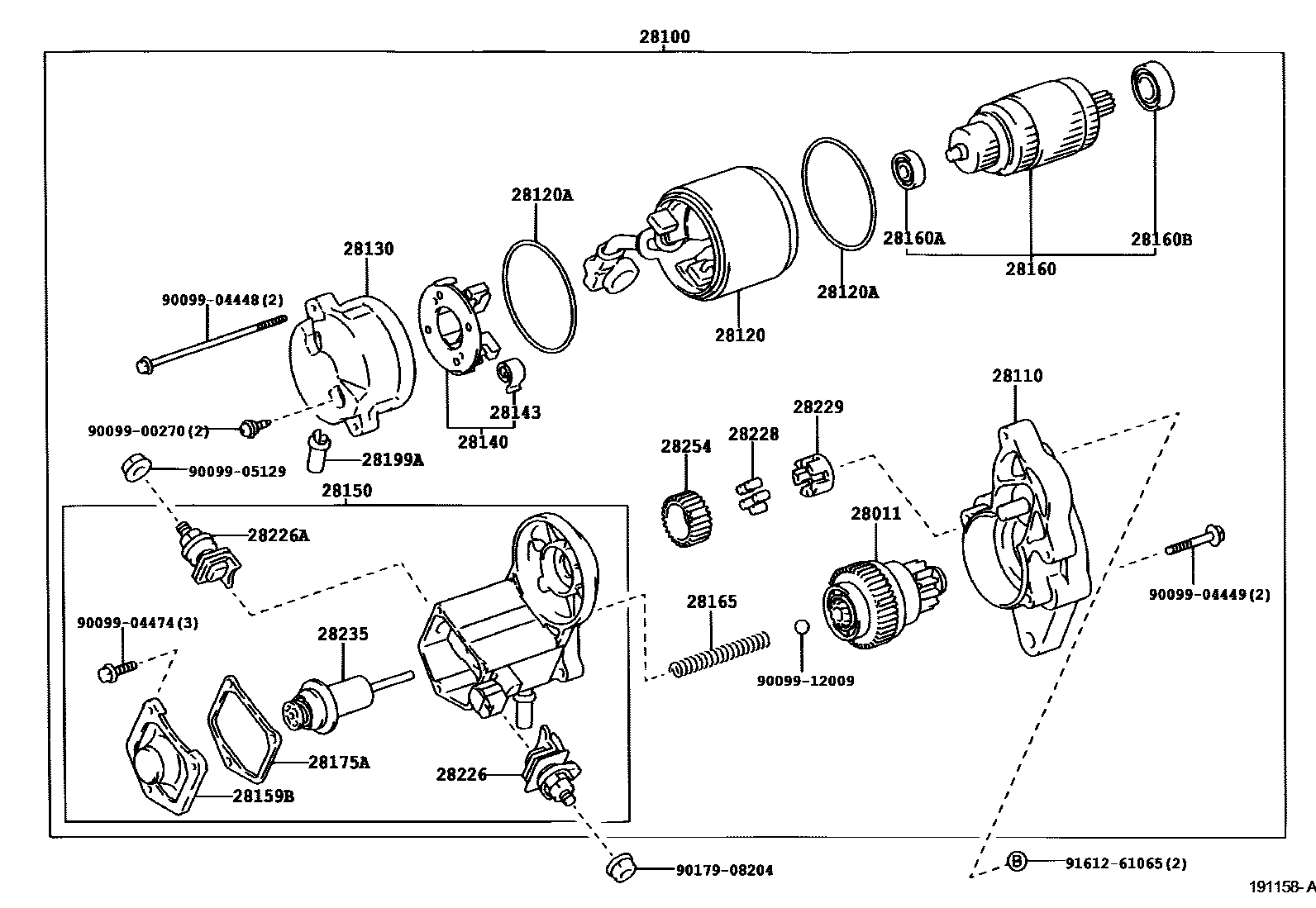

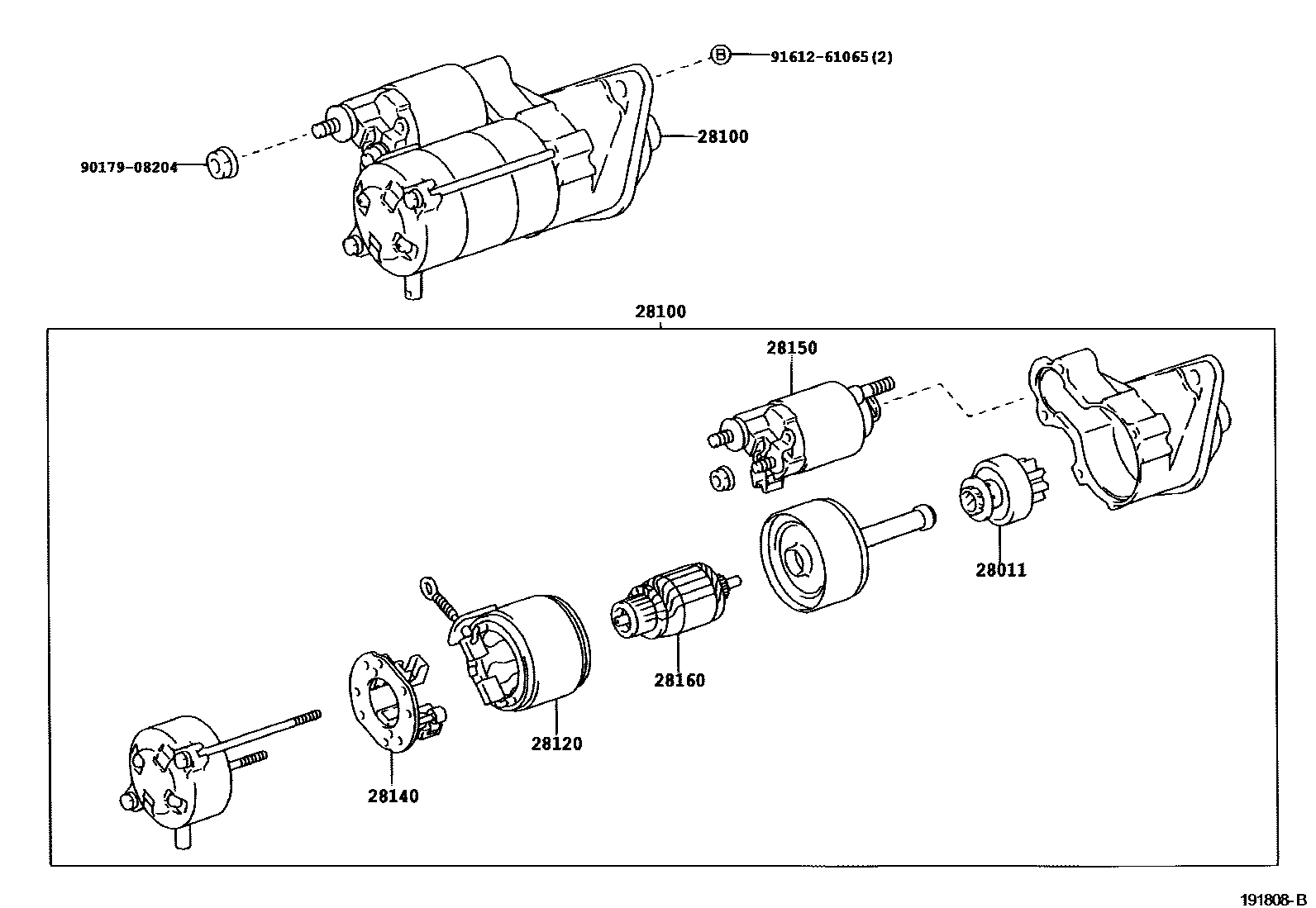

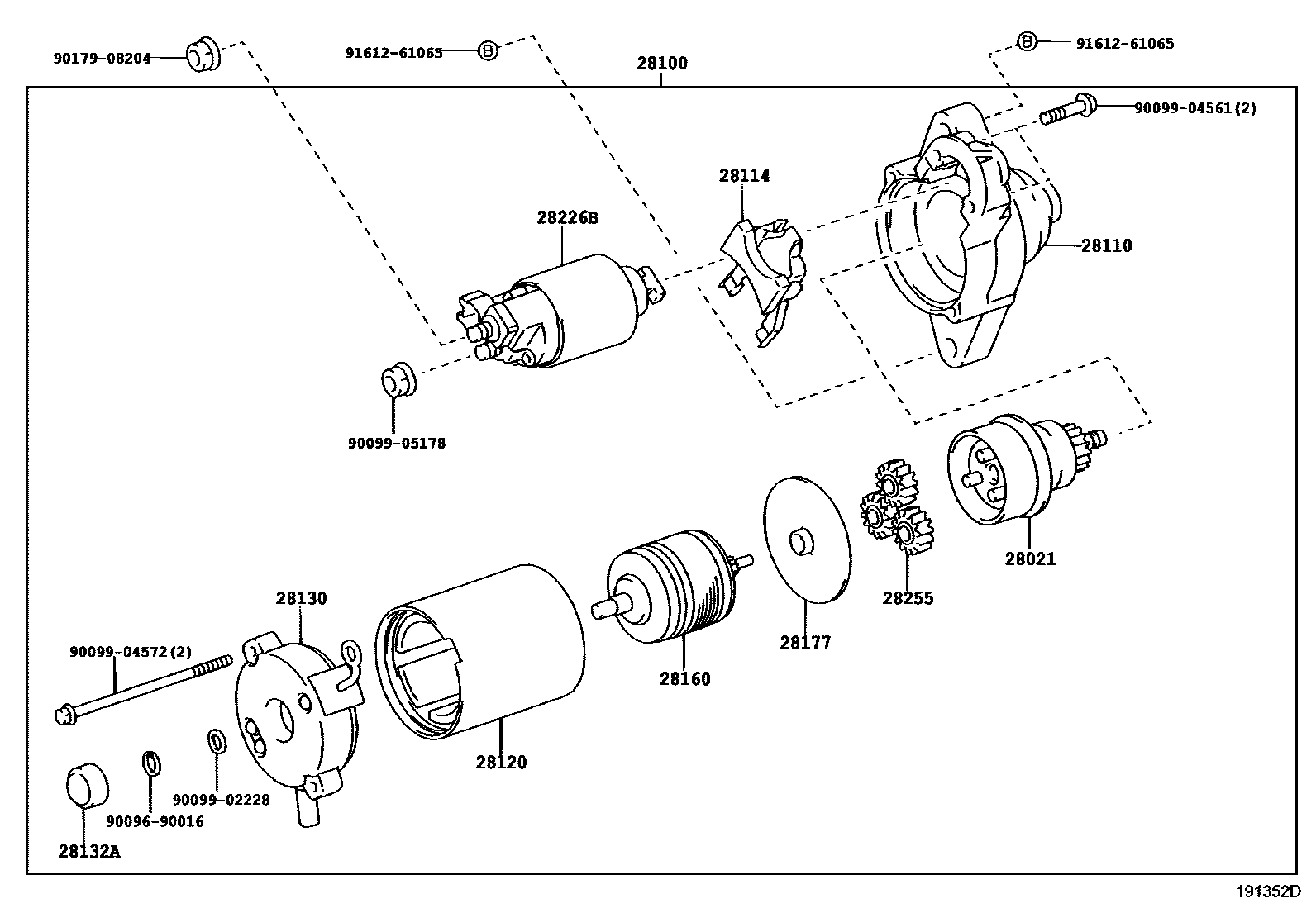

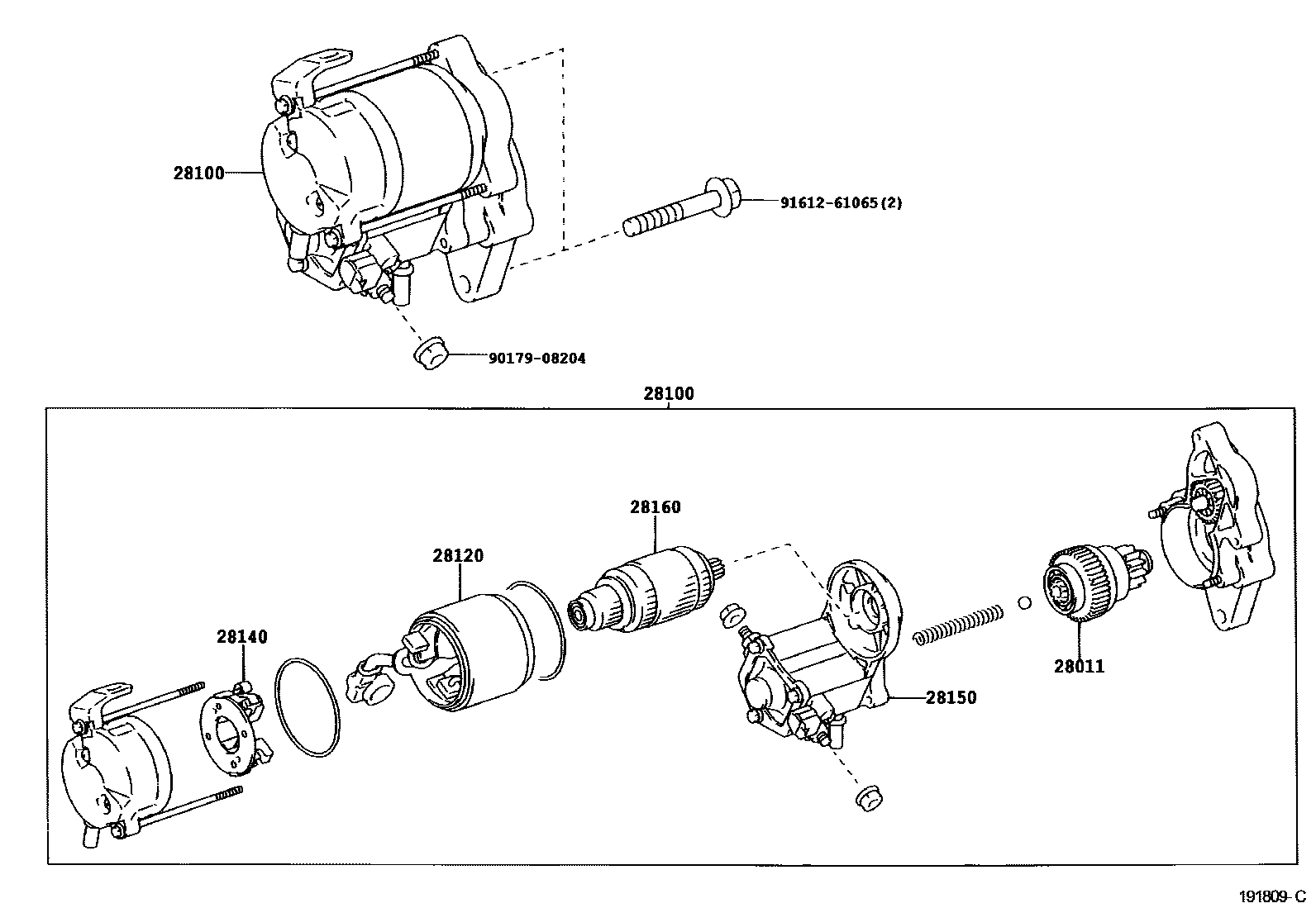

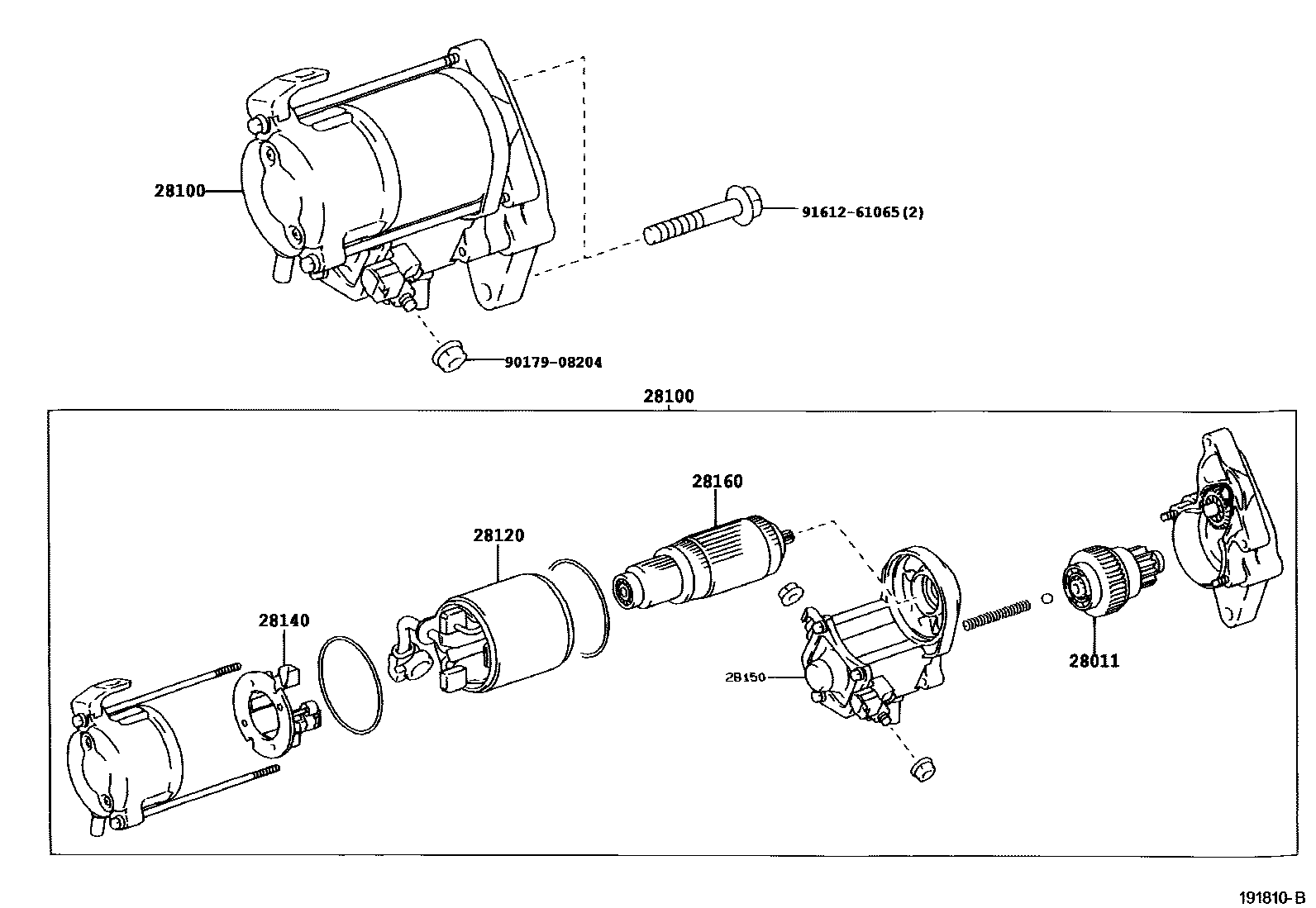

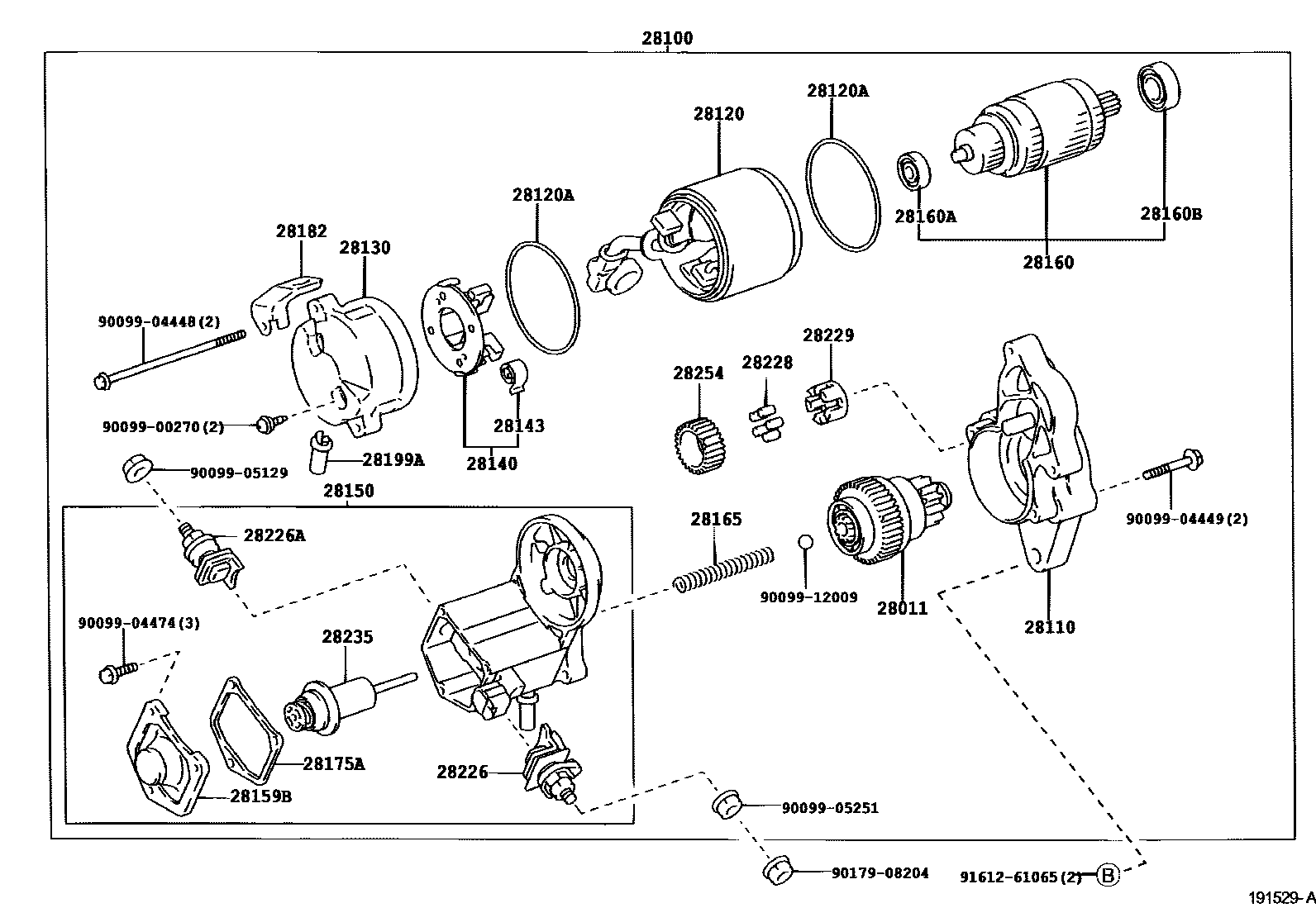

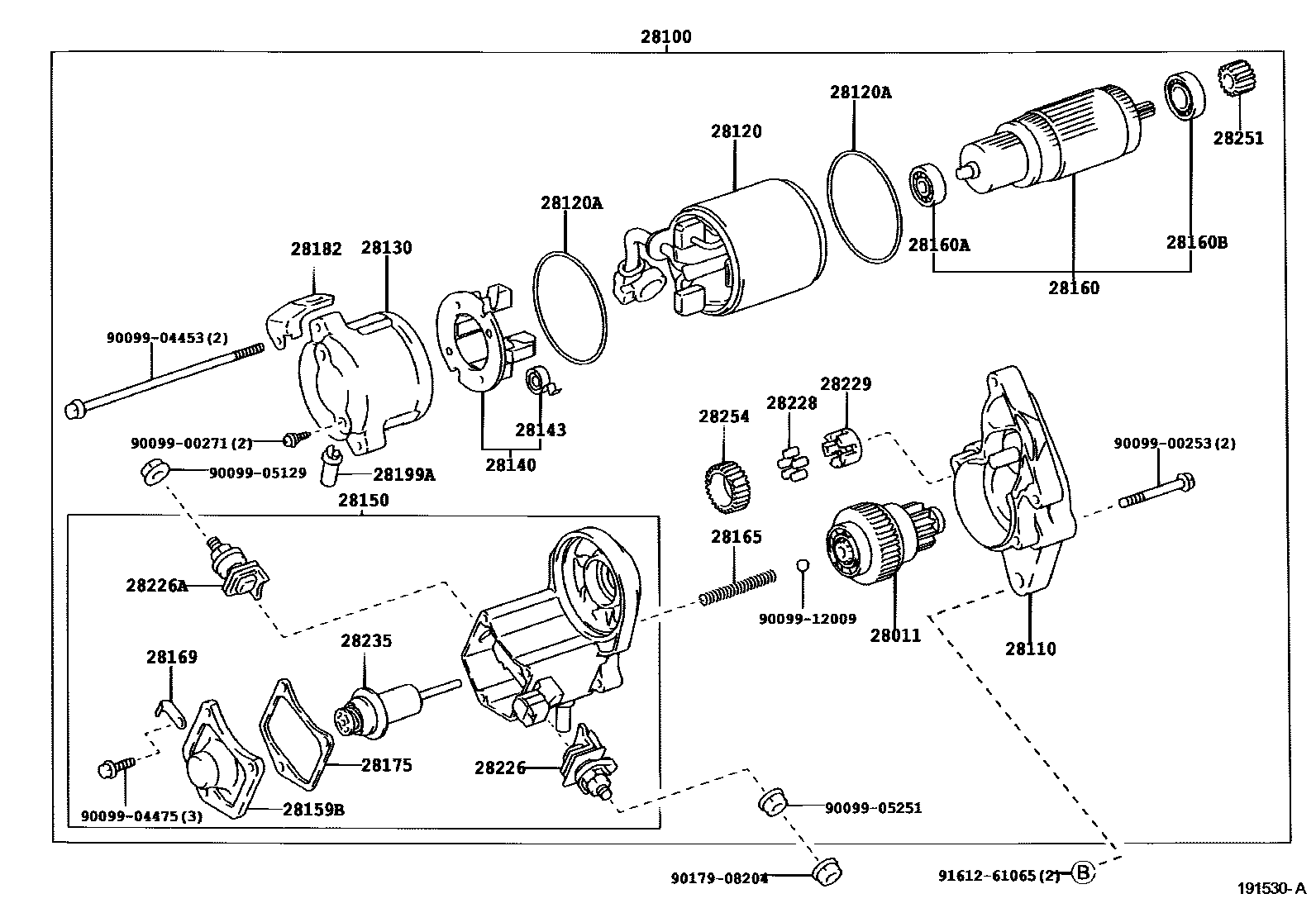

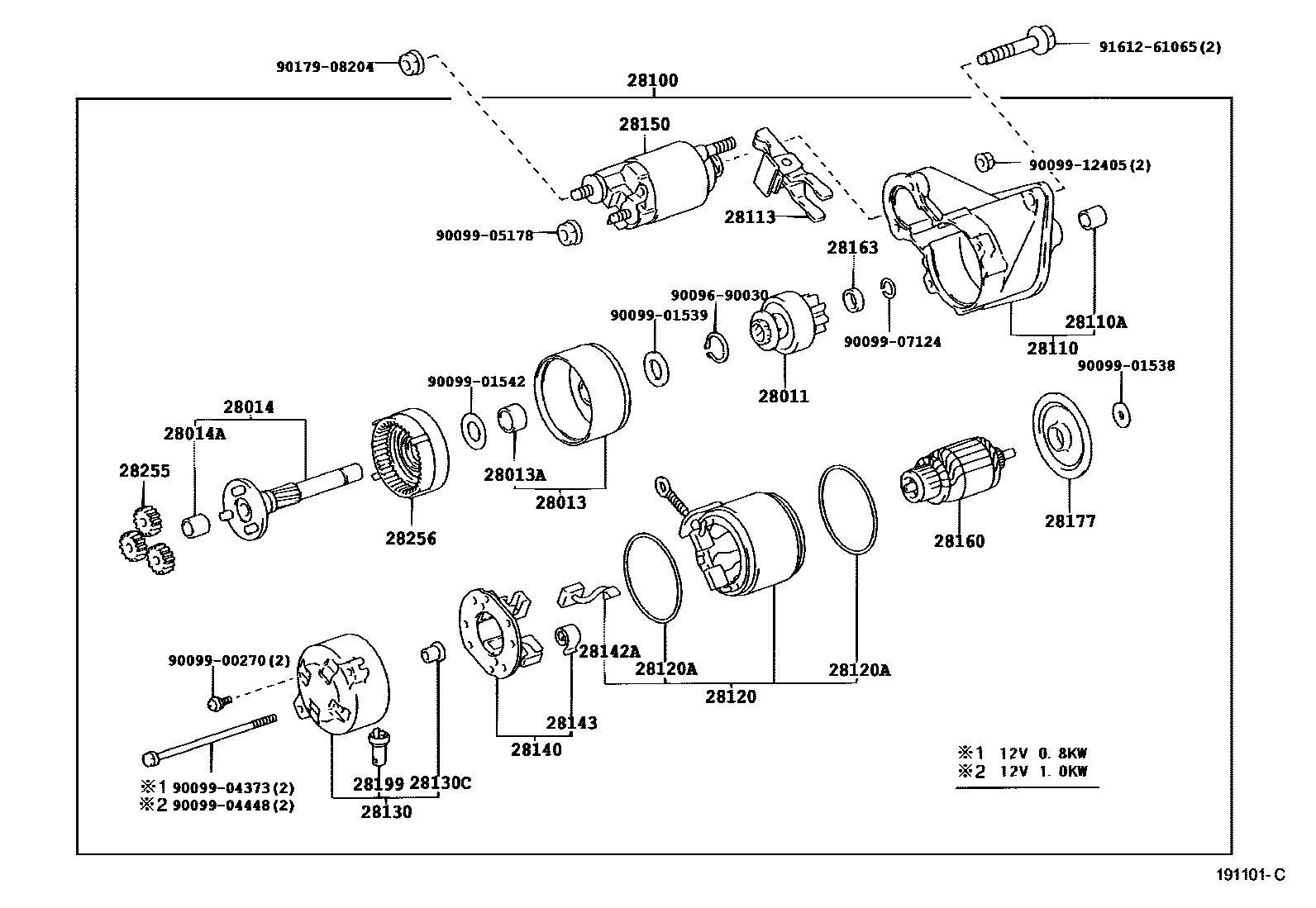

Toyota YARIS EPC diagram 1904, 起动机, with 8 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-55050 · 28011-55060 · 28011-70020 · 28011-76070 |
| 28013 | No. 1 starter intermediate bearing and shock absorber | 28013-70020 · 28013-70030 |
| 28013A | No. 2 starter intermediate bearing and shock absorber | 90099-10181 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-70020 |
| 28014A | Planet gear carrier shaft bushing or bearing | 90099-10180 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 |
| 28100 | Starter assembly | 28100-21020 · 28100-21030 · 28100-21040 · 28100-21060 · 28100-21061 · 28100-21062 · 28100-33040 · 28100-33050 |
| 28110 | Starter drive end housing assembly | 28110-21020 · 28110-21040 · 28110-21060 · 28110-21061 · 28110-33040 · 28110-33050 |
| 28110A | Bearings (for starter housing) | 90099-10171 |
| 28113 | starter pinion drive rod | 28113-70020 |
| 28114 | starter drive lever | 28114-21060 |
| 28120 | Starter yoke assembly | 28120-28040 · 28120-54380 · 28120-66040 · 28120-70020 · 28120-70050 |
| 28120A | O-ring (for starter yoke) | 90099-14064 · 90099-14092 |
| 28130 | Starter commutator end frame assembly | 28130-13080 · 28130-21060 · 28130-21061 · 28130-33040 · 28130-46220 |
| 28130C | Starter flange bearing | 90099-10183 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-54380 · 28140-70020 · 28140-76070 |
| 28142A | starter components | 28142-70020 |
| 28143 | starter brush spring | 28143-54380 · 28143-70020 · 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-16160 · 28150-33040 · 28150-46220 |
| 28159B | Electromagnetic switch cover | 28159-54380 · 28159-55050 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-54380 · 28160-70021 · 28160-70050 · 28160-74070 |
| 28160A | starter armature bearing | 90099-10196 · 90099-10208 |
| 28160B | Starter armature bearing No. 2 | 90099-10197 |
| 28163 | Starter pinion snap nut or snap ring | 28163-70020 |
| 28165 | Starter solenoid switch return spring | 28165-76070 |
| 28169 | Starter motor lead clamp | 28169-54380 |
| 28175 | Starter bearing cap seal | 28175-54380 |
| 28175A | Electromagnetic switch cover gasket | 28175-55050 |
| 28177 | Plate (for starter armature) | 28177-28040 · 28177-70020 |
| 28182 | Starter commutator end frame bracket | 28182-33040 · 28182-33050 |
| 28199 | starter cover | 28199-46080 |
| 28199A | Starter dust protection device | 28199-74110 |
| 28226 | battery terminal starter assembly | 28226-22050 · 28226-54340 |
| 28226A | Motor terminal starter assembly | 28226-72010 · 28226-74070 |
| 28226B | starter magnetic switch | 28226-21060 · 28226-22060 · 28226-22061 · 28226-28050 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-54380 · 28235-55050 |
| 28251 | Starter drive pinion | 28254-54380 |
| 28254 | Starter idler pinion | 28254-64130 · 28254-74070 |
| 28255 | Planetary gear | 28255-28040 · 28255-70020 |
| 28256 | Starter internal gear | 28256-70020 |
