Toyota YARIS 点火线圈和火花塞 — Figure 1901

Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 2 images and 5 PNC and OE references.

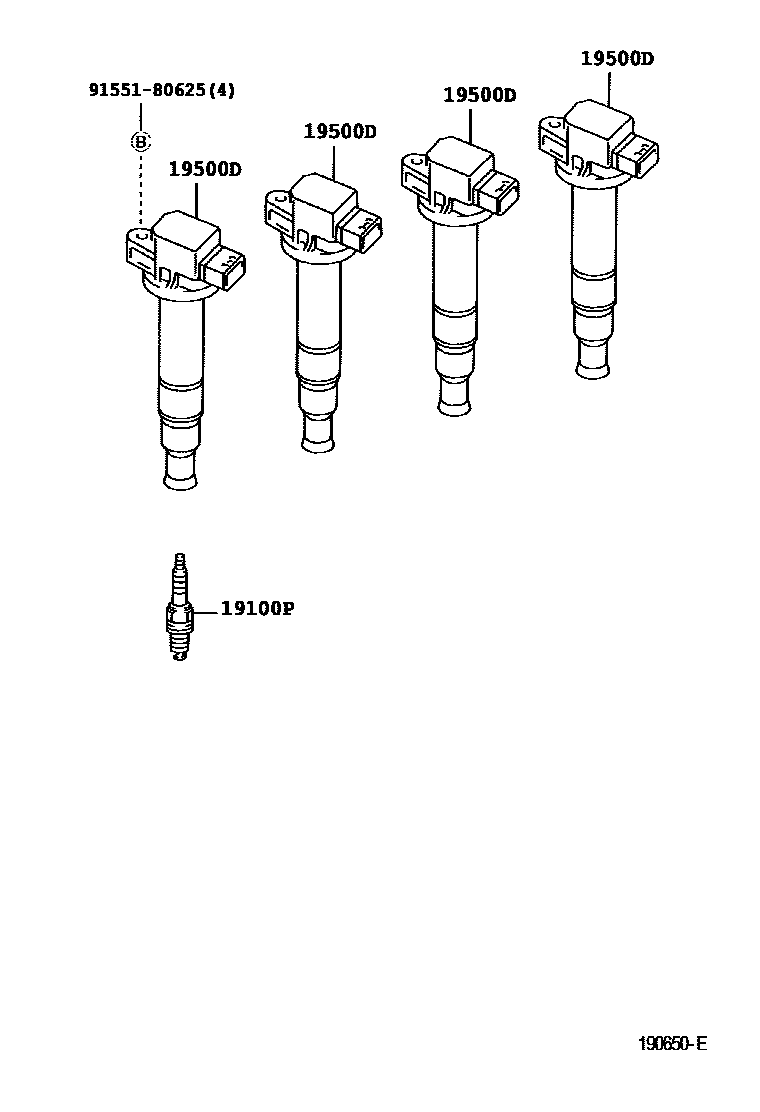

Toyota YARIS 点火线圈和火花塞 EPC diagram — 190650E
点火线圈和火花塞 — 190650E (199908 – 999999)

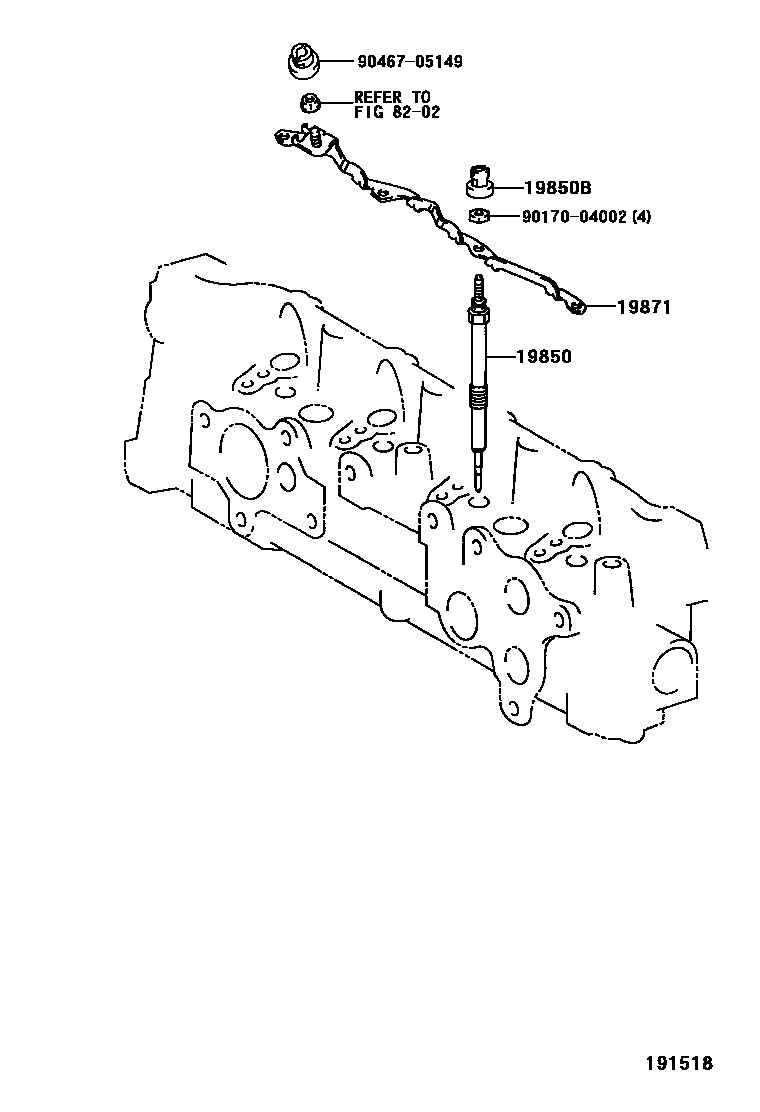

Toyota YARIS 点火线圈和火花塞 EPC diagram — 191518
点火线圈和火花塞 — 191518 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01164 · 90919-01176
19500DNo. 1 ignition coil90919-02240
19850Glow plug assembly19850-0W010
19850BScrew seal (for glow plug)90189-04024
19871Glow plug connector No. 119871-33010
