Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 6 PNC and OE references.

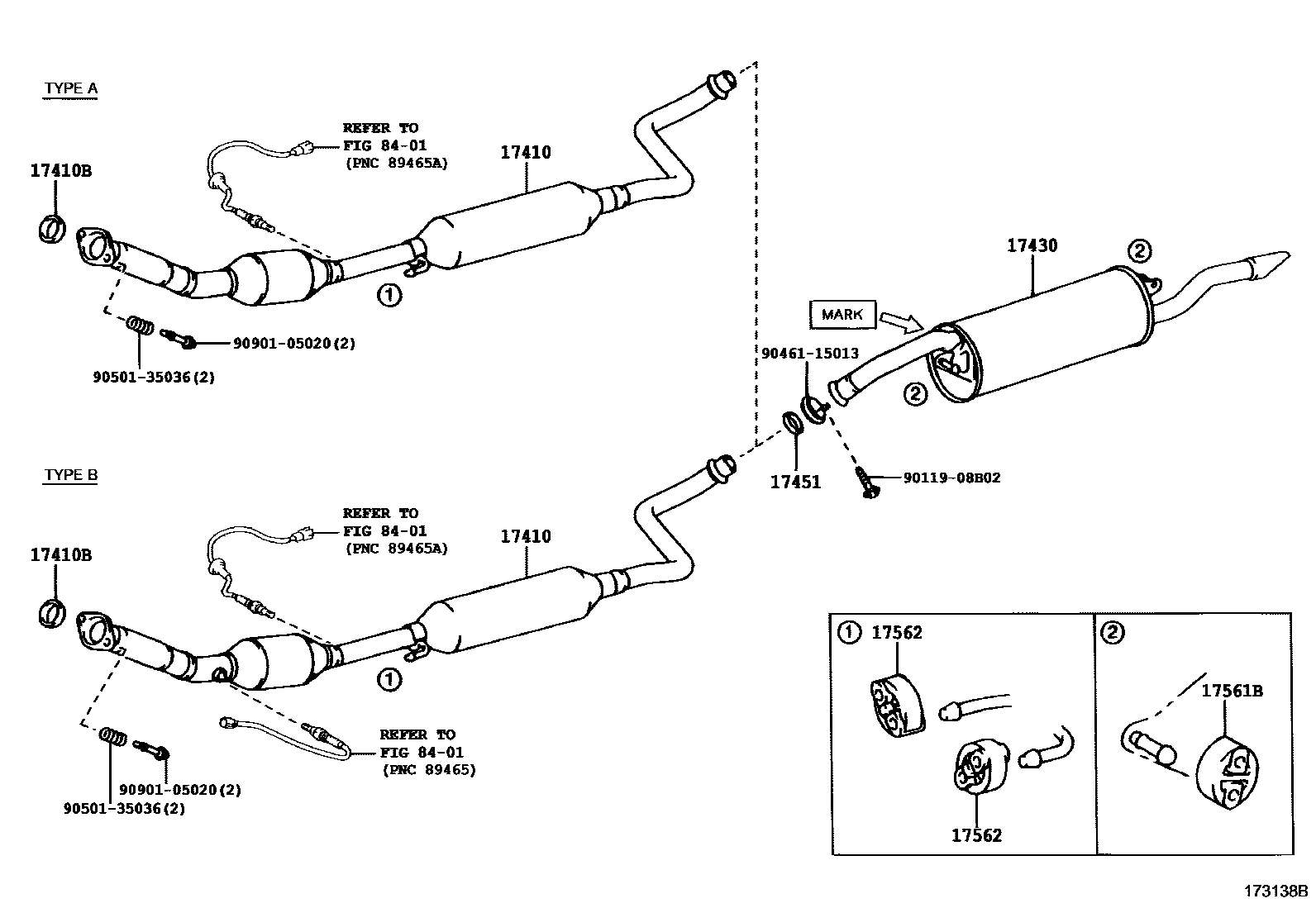

Toyota YARIS Exhaust Pipe EPC diagram — 173138B — Exhaust Pipe — 173138B (199908 – 200509)

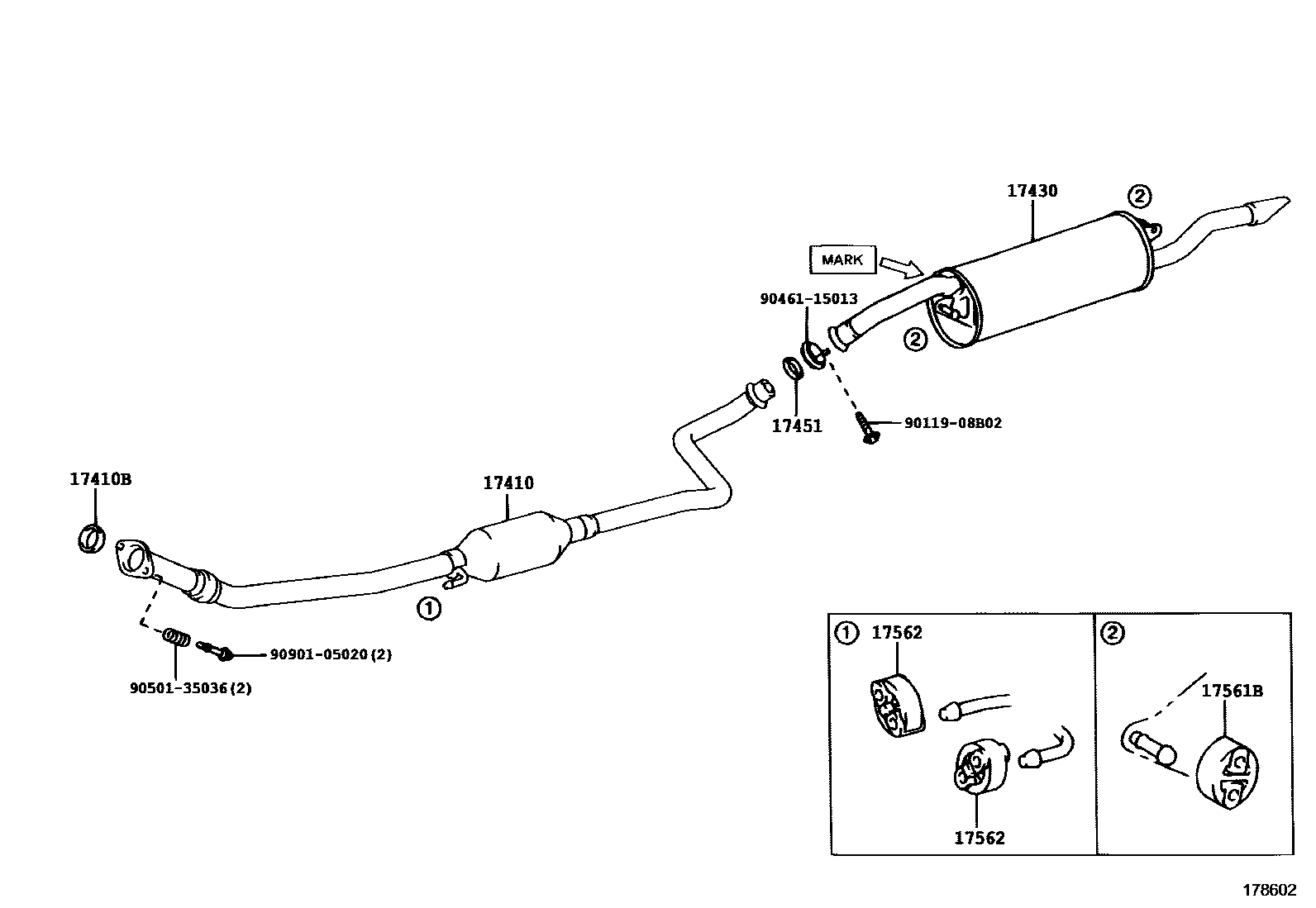

Toyota YARIS Exhaust Pipe EPC diagram — 178602 — Exhaust Pipe — 178602 (200110 – 200509)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-21100 · 17410-21110 · 17410-21170 · 17410-21361 · 17410-21560 · 17410-21570
17410B	Exhaust pipe gasket	17451-21030
17430	Exhaust tailpipe assembly	17430-21040 · 17430-21050 · 17430-21051 · 17430-21271 · 17430-21420
17451	Exhaust pipe gasket	90917-06082
17561B	No. 1 exhaust pipe lifting lug	17565-74280
17562	No. 2 exhaust pipe lifting lug	17562-23040
