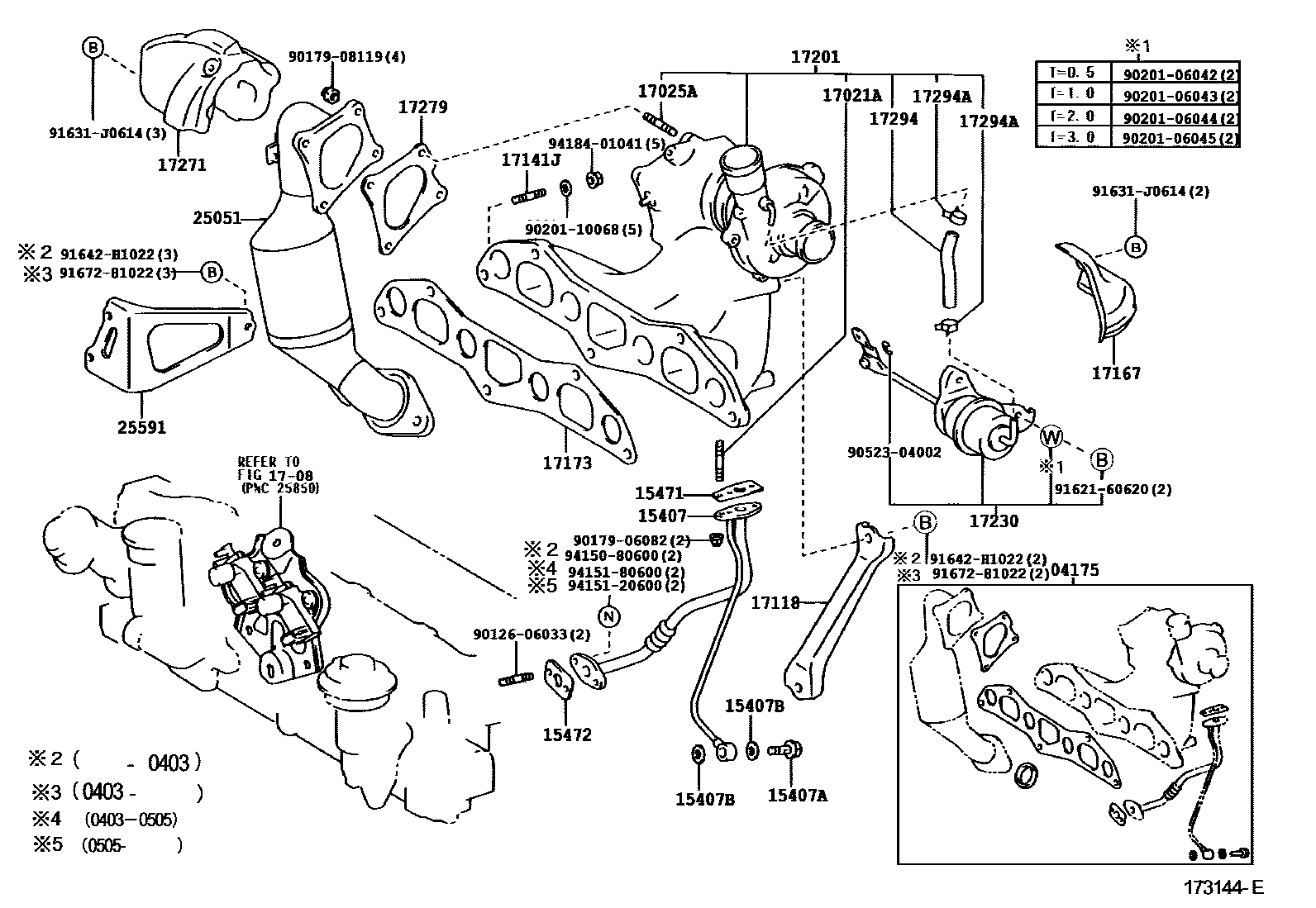

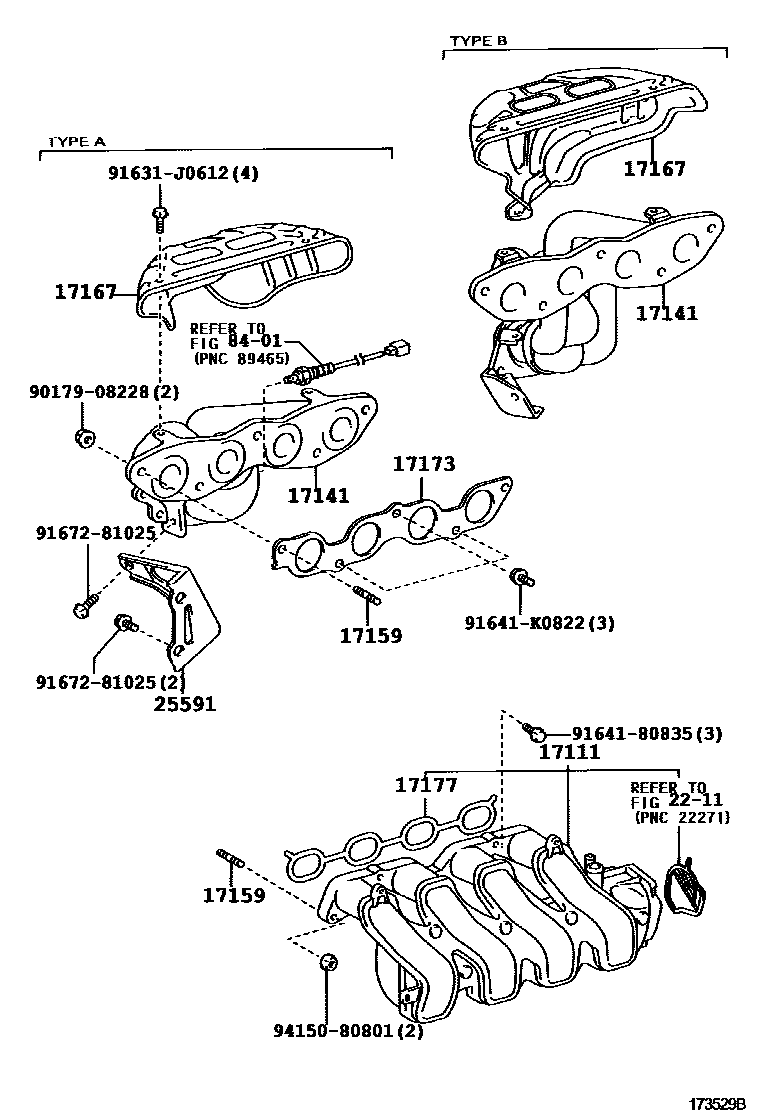

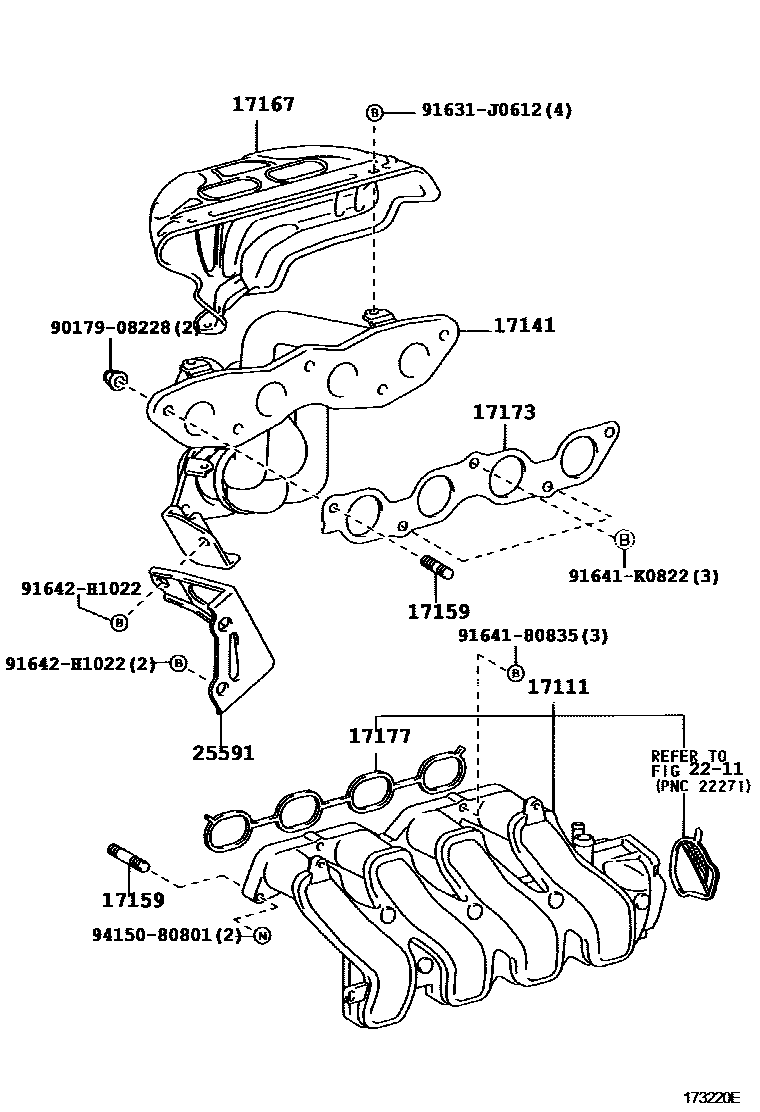

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-33010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-33010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-10065 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10027 |
| 15471 | Turbine oil inlet pipe gasket | 15471-30010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-33010 |
| 17021A | Stud bolts (for bearing housing) | 90116-06048 |
| 17025A | Stud bolts (for turbine housing) | 90116-08260 |
| 17111 | Intake Manifold | 17101-21020 · 17101-21030 · 17120-21010 · 17120-21020 |
| 17118 | Manifold stays | 17118-33010 |
| 17141 | exhaust manifold | 17141-21040 · 17141-21060 · 17141-21090 · 17141-21100 |
| 17141J | Studs (for right exhaust manifold) | 90126-10018 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08013 · 90126-08026 · 90126-08037 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-21020 · 17167-21030 · 17167-21060 · 17167-33010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-21020 · 17173-33010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-21020 |
| 17201 | Turbocharger sub-assembly | 17201-33010 |
| 17230 | Actuator assembly with bracket | 17230-39015 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-33010 |
| 17279 | Turbine outlet elbow gasket | 17279-33010 |
| 17294 | Actuator hose | 90445-12158 |
| 17294A | Clamp (for actuator hose) | 96132-41100 · 96132-51100 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-33010 |
| 25591 | Manifold bracket | 25591-21020 |
