Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.

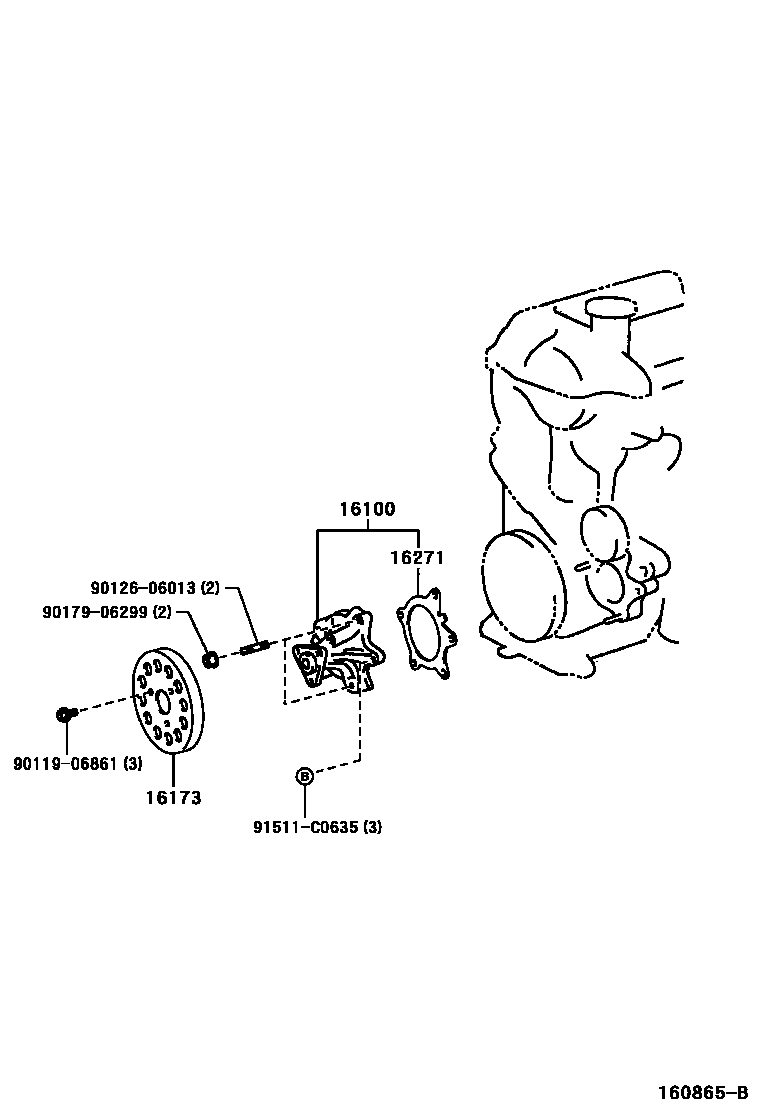

Toyota YARIS Water Pump EPC diagram — 160865B
Water Pump — 160865B (199908 – 999999)

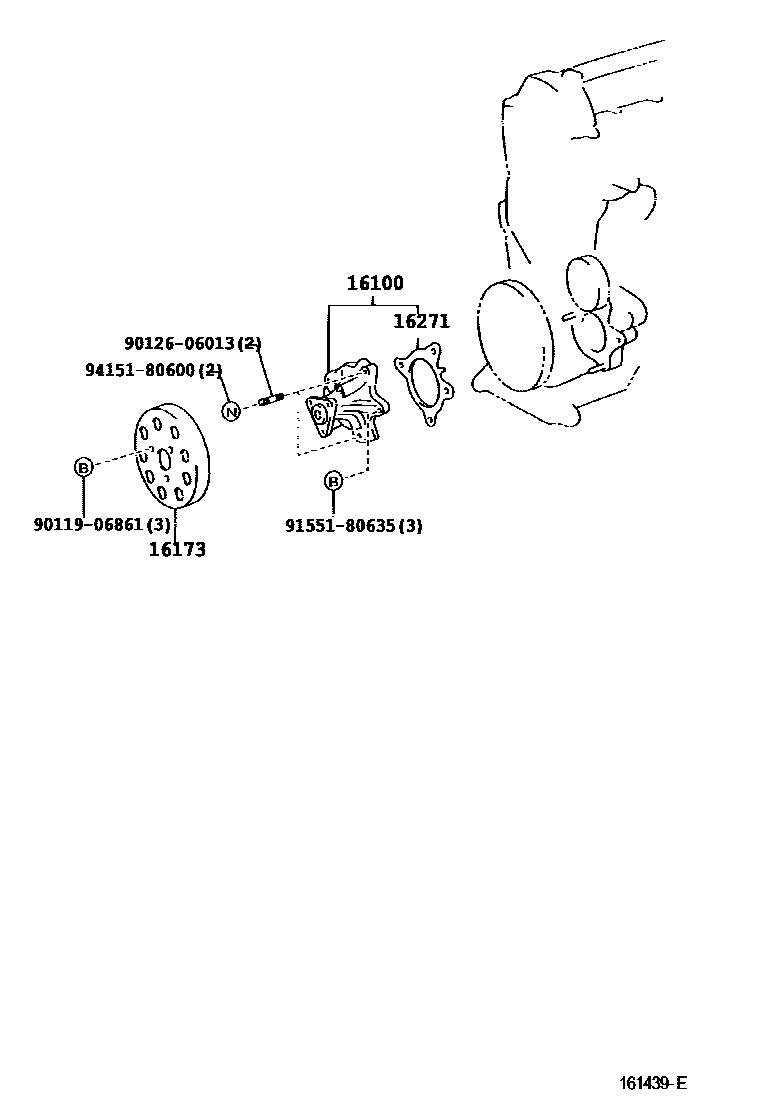

Toyota YARIS Water Pump EPC diagram — 161439E
Water Pump — 161439E (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-29155 · 16100-29156 · 16100-29195 · 16100-29196
16173water pump pulley16173-21020 · 16173-33010
16271water pump gasket16271-21020 · 16271-33020
