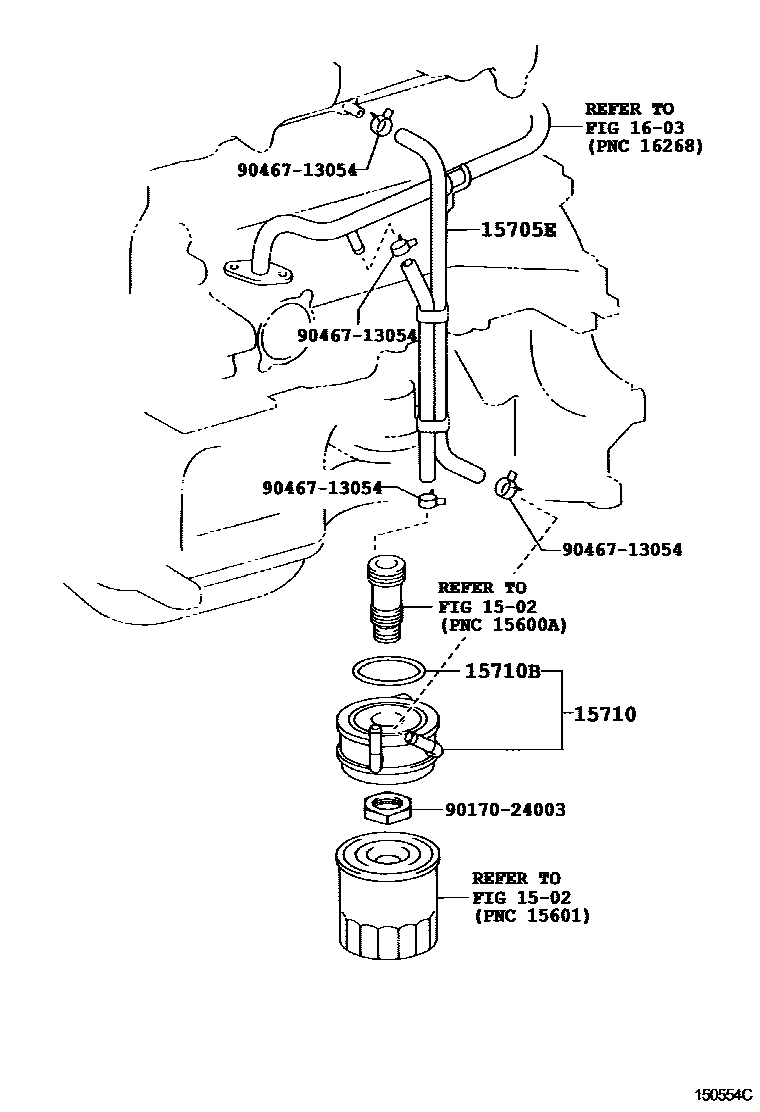

Toyota YARIS Engine Oil Cooler — Figure 1503
Toyota YARIS EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15705E | Oil cooler hose sub-assembly | 15705-33010 |
| 15710 | Oil cooler assembly | 15710-33010 |
| 15710B | O-ring (for oil cooler) | 90301-58002 |
