Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 2 PNC and OE references.

Toyota YARIS Oil Filter EPC diagram — 150240
Oil Filter — 150240 (199908 – 999999)

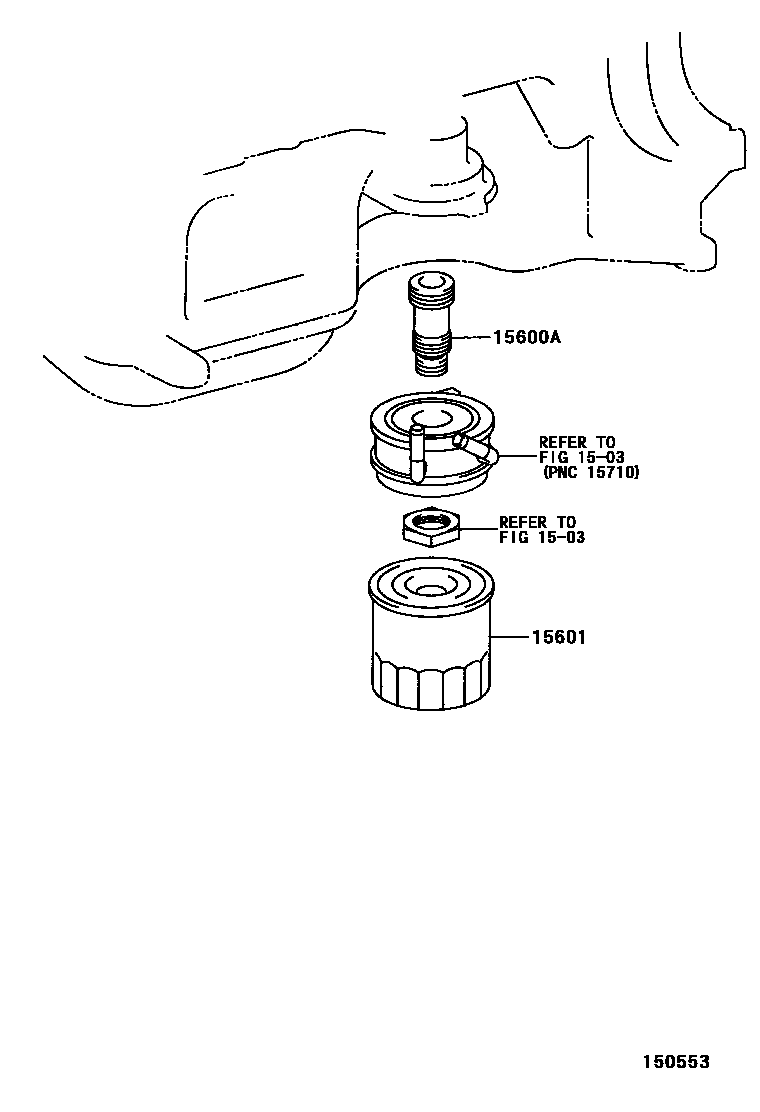

Toyota YARIS Oil Filter EPC diagram — 150553
Oil Filter — 150553 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04004 · 90904-04007
15601Oil filter sub-assembly90915-10001 · 90915-10003 · 90915-20003
