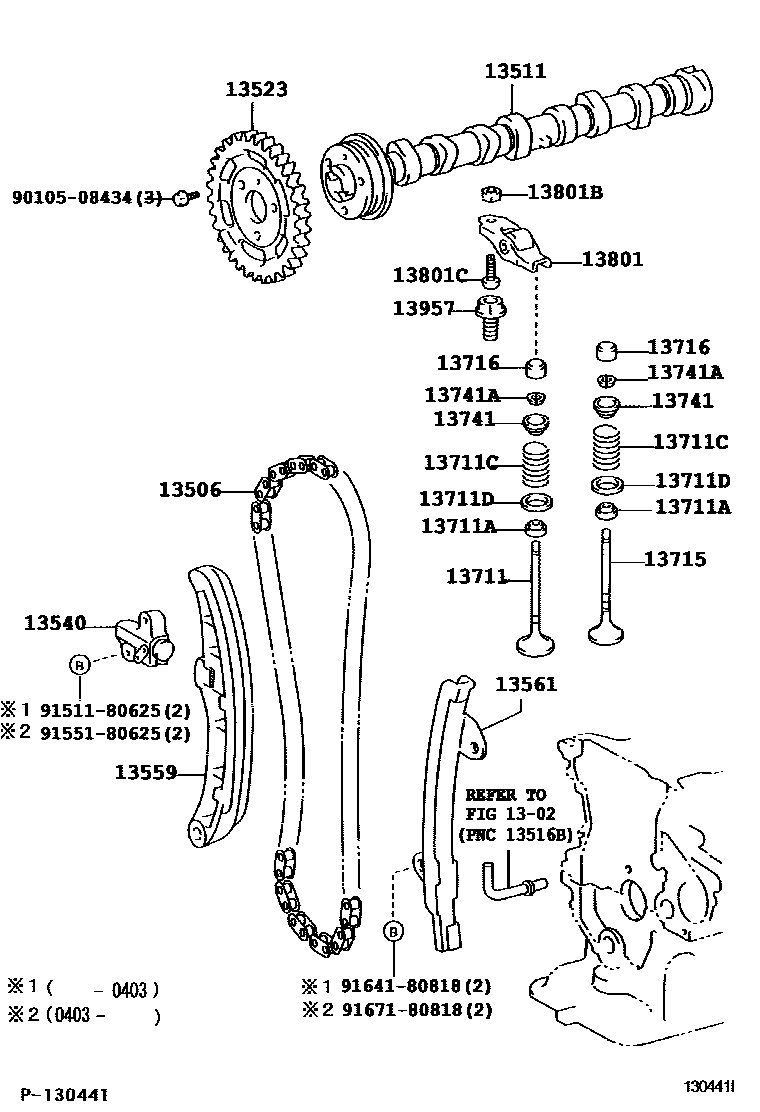

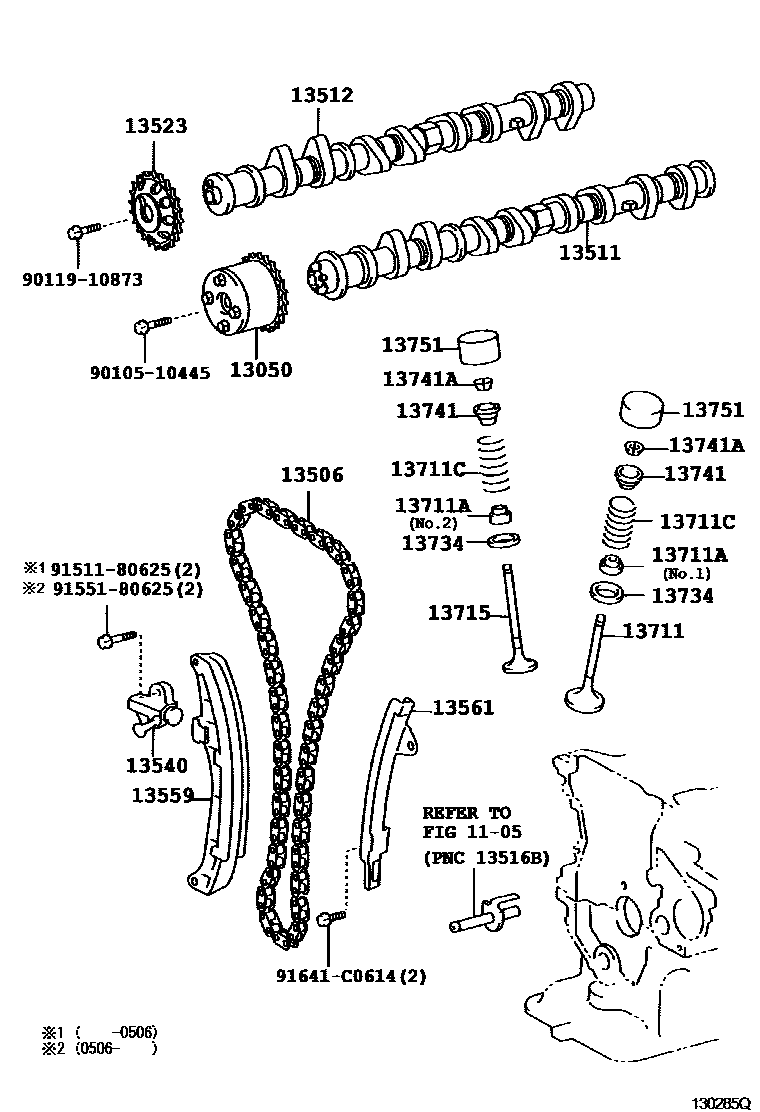

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-21020 · 13050-21040 |
| 13506 | Chain sub-assembly | 13506-21020 · 13506-21030 · 13506-21040 · 13506-33020 |
| 13511 | camshaft | 13501-21030 · 13501-33010 |
| 13512 | Camshaft No. 2 | 13502-21020 · 13502-21021 · 13502-21030 · 13502-21031 |
| 13523 | Camshaft timing gear or sprocket | 13523-21020 · 13523-22020 · 13523-33020 · 13523-33021 |
| 13540 | No. 1 chain tensioner assembly | 13540-21010 · 13540-21020 · 13540-33020 |
| 13559 | chain tensioner guide plate | 13559-21010 · 13559-33010 |
| 13561 | No. 1 chain shock absorber | 13561-21010 · 13561-33020 |
| 13711 | intake valve | 13711-21010 · 13711-33030 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02092 · 90913-02093 · 90913-02121 |
| 13711C | Compression spring (for outside) | 90501-36006 · 90905-01049 |
| 13711D | Flat washer (for valve spring seat) | 90201-19008 |
| 13715 | exhaust valve | 13715-21010 · 13715-33040 |
| 13716 | valve stem cover | 13716-33010 |
| 13734 | Valve spring seat | 13734-74010 |
| 13741 | Valve spring seat ring | 13741-10020 · 13741-22020 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03031 |
| 13751 | valve lifter | 13751-22040 · 13751-22050 · 13751-22060 · 13751-22070 · 13751-22080 · 13751-22090 · 13751-22100 · 13751-22110 · 13751-22120 · 13751-22130 · 13751-22140 · 13751-22150 · 13751-22160 · 13751-22170 · 13751-22180 · 13751-22190 · 13751-22200 · 13751-22210 · 13751-22220 · 13751-22230 · 13751-22240 · 13751-22250 · 13751-22260 · 13751-22270 · 13751-22280 · 13751-22290 · 13751-22300 · 13751-22310 · 13751-22320 · 13751-22330 · 13751-22340 · 13751-22350 · 13751-22360 · 13751-22370 · 13751-22380 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-33020 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-33010 |
| 13957 | valve rocker arm pivot | 13957-33010 |
