Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

Toyota YARIS Ventilation Hose EPC diagram — 120118B
Ventilation Hose — 120118B (199908 – 999999)

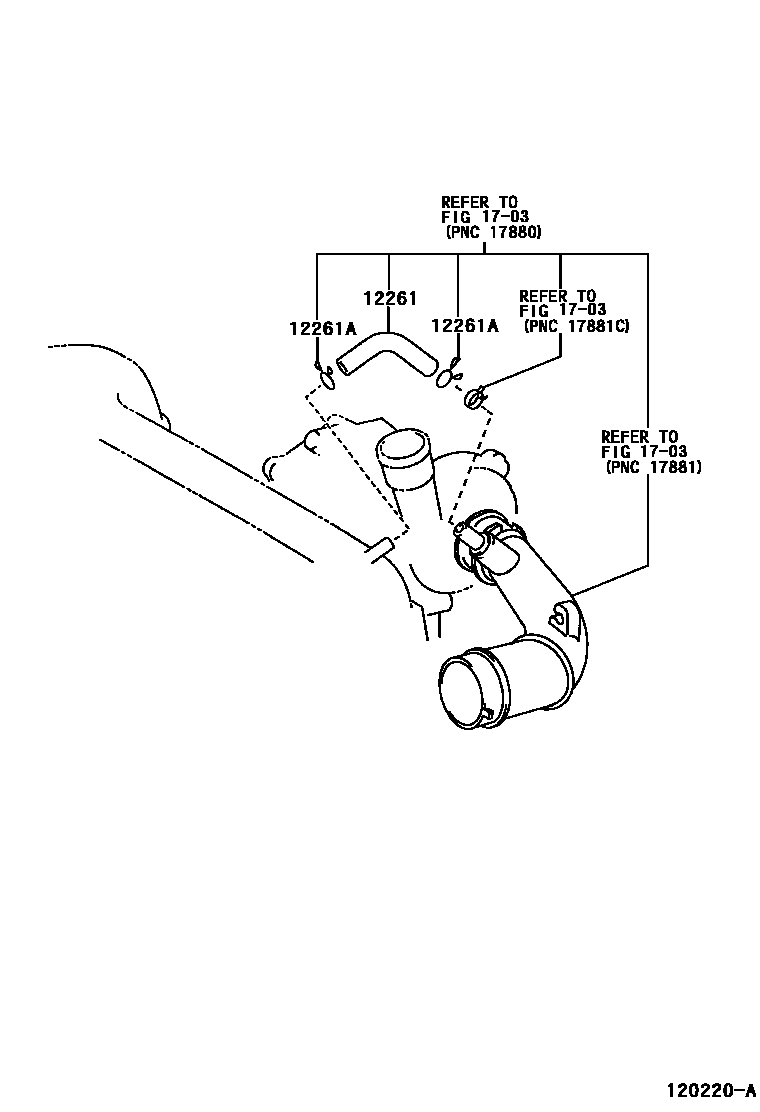

Toyota YARIS Ventilation Hose EPC diagram — 120220A
Ventilation Hose — 120220A (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21010 · 12204-21011
12261Ventilation Hose12261-21030 · 12261-33040
12261AClip or clip (for vent hose)90467-15019 · 90467-15120 · 90467-21004 · 90467-23007 · 90467-24038 · 96134-42300
12262Ventilation hose No. 212262-21020
12262AClamp (for vent hose No. 2)16581-21050 · 90467-21004
