Toyota YARIS Cylinder Block — Figure 1105

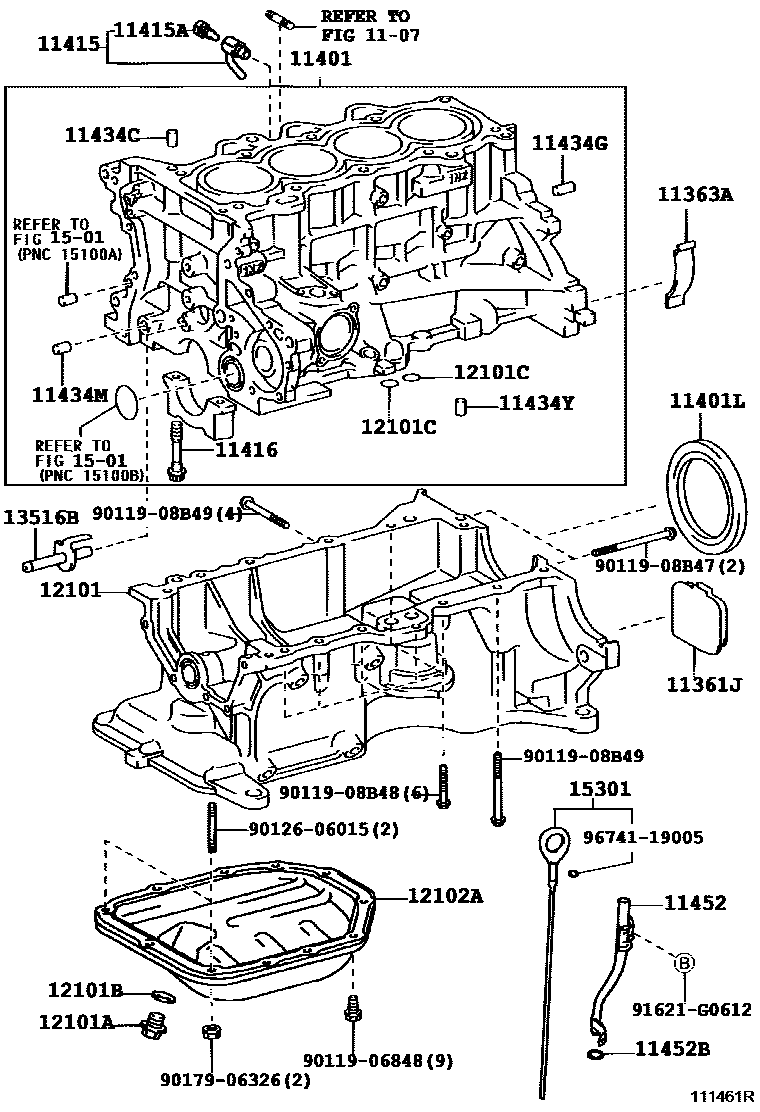

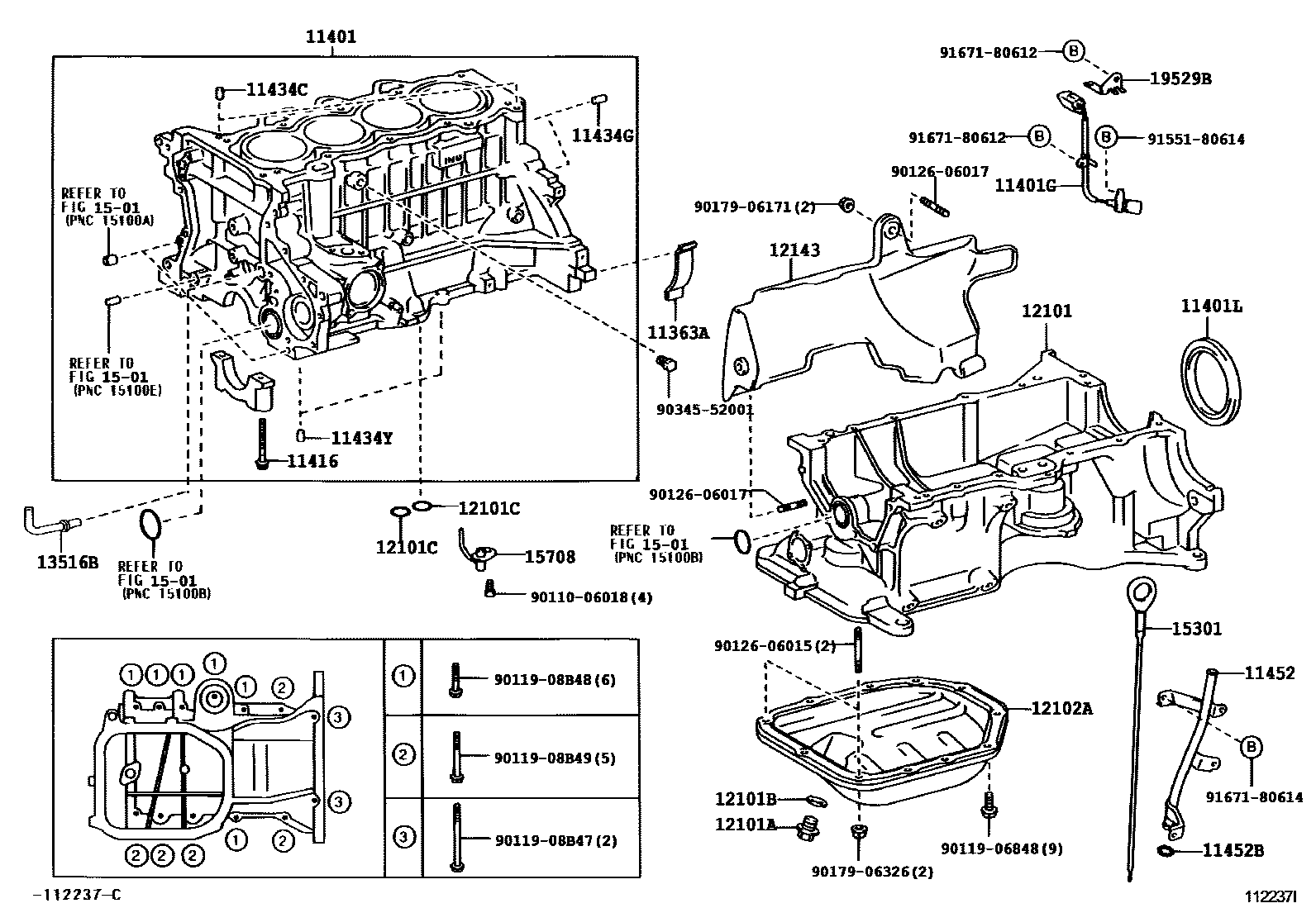

Toyota YARIS EPC diagram 1105, Cylinder Block, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21010 · 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11401-29675 · 11401-29685 · 11401-29686 · 11401-29687 · 11401-29845 · 11401-29855 · 11401-39545 · 11401-39615 · 11401-39715 · 11401-39716 |
| 11401G | crankshaft position sensor | 90919-05056 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75016 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02125 · 90910-02147 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11452 | Engine oil level gauge guide | 11452-21030 · 11452-33010 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12111-21030 · 12111-21031 · 12111-21032 · 12111-21033 · 12111-33020 · 12111-33050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 96722-24020 |
| 12102A | No. 2 oil pan sub-assembly | 12102-21010 |
| 12143 | oil pan cover | 12143-33010 |
| 13516B | oil nozzle | 13516-21010 · 13516-21020 |
| 15301 | Engine oil level scoring assembly | 15301-21030 · 15301-33020 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-33010 |
| 19529B | card holder | 19529-33010 |
