Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

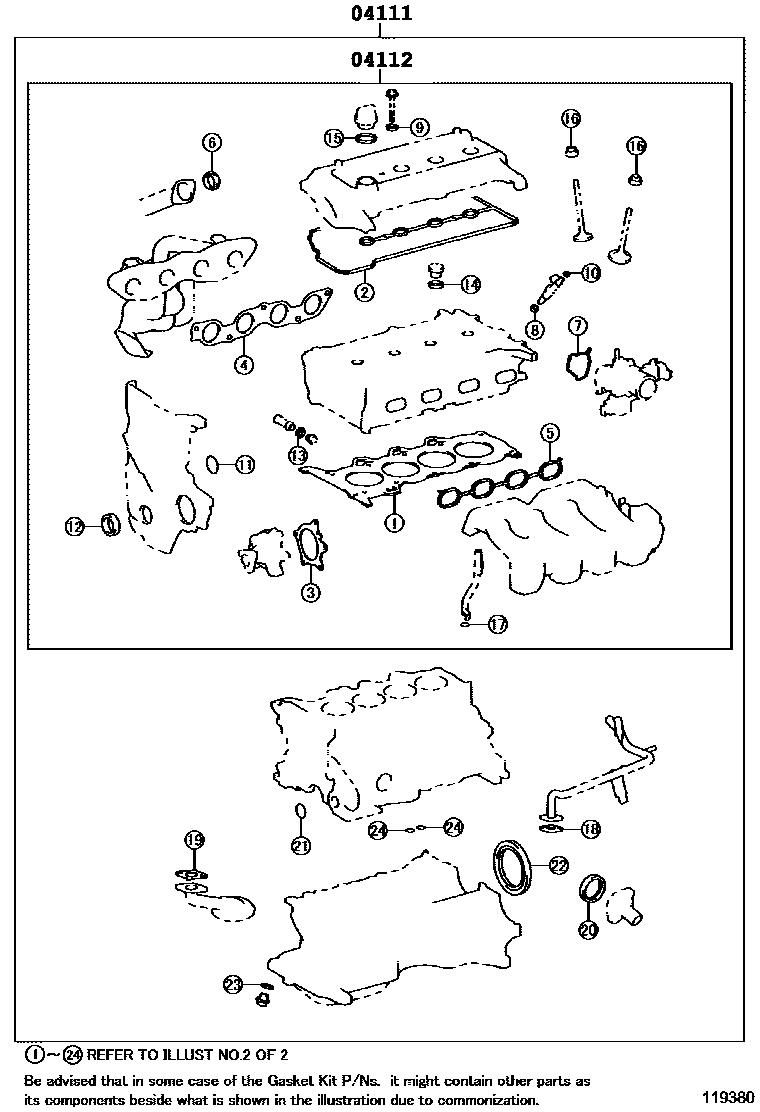

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119380
Engine Overhaul Gasket Kit — 119380 (199908 – 200509)

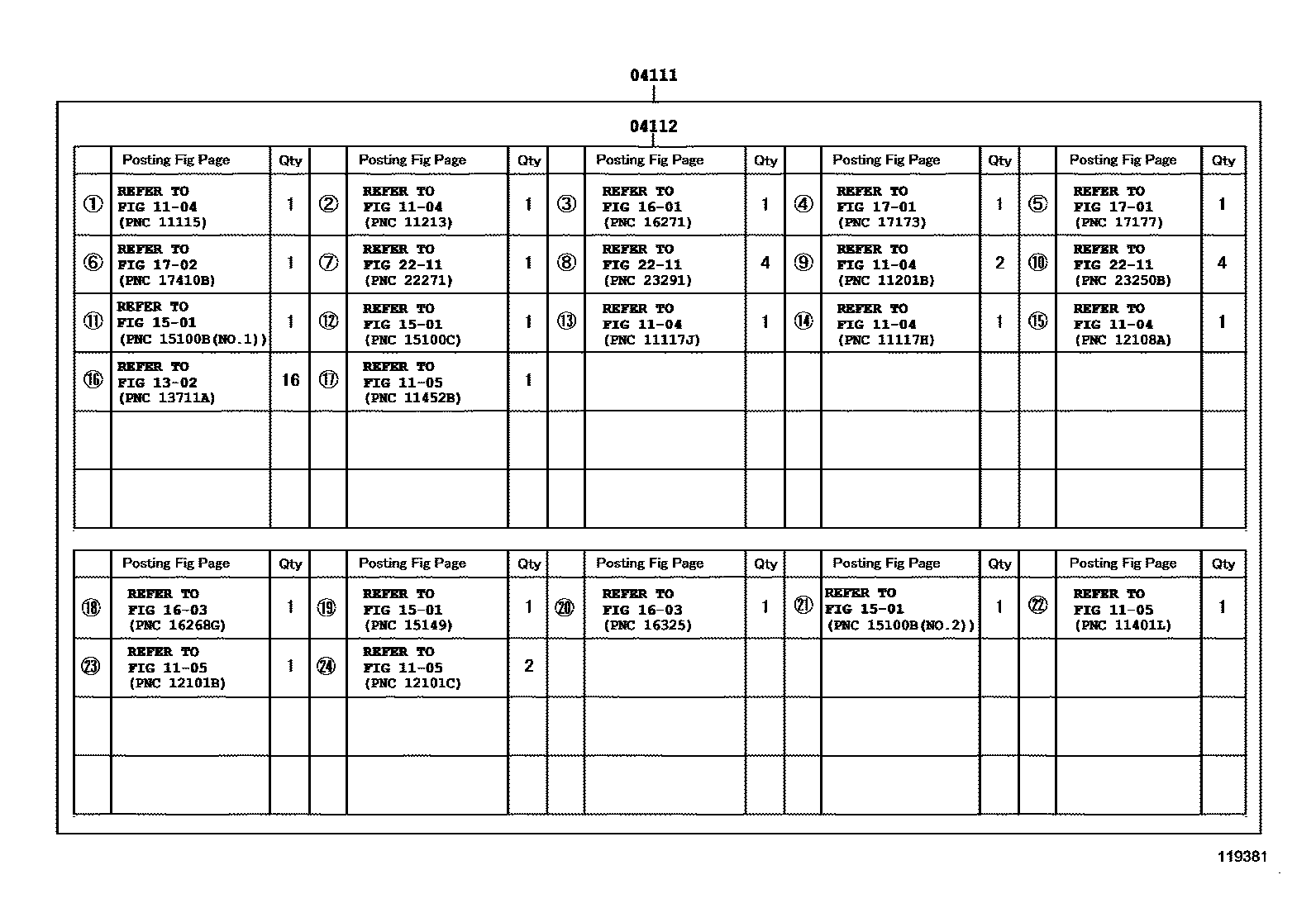

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119381
Engine Overhaul Gasket Kit — 119381 (199908 – 200509)

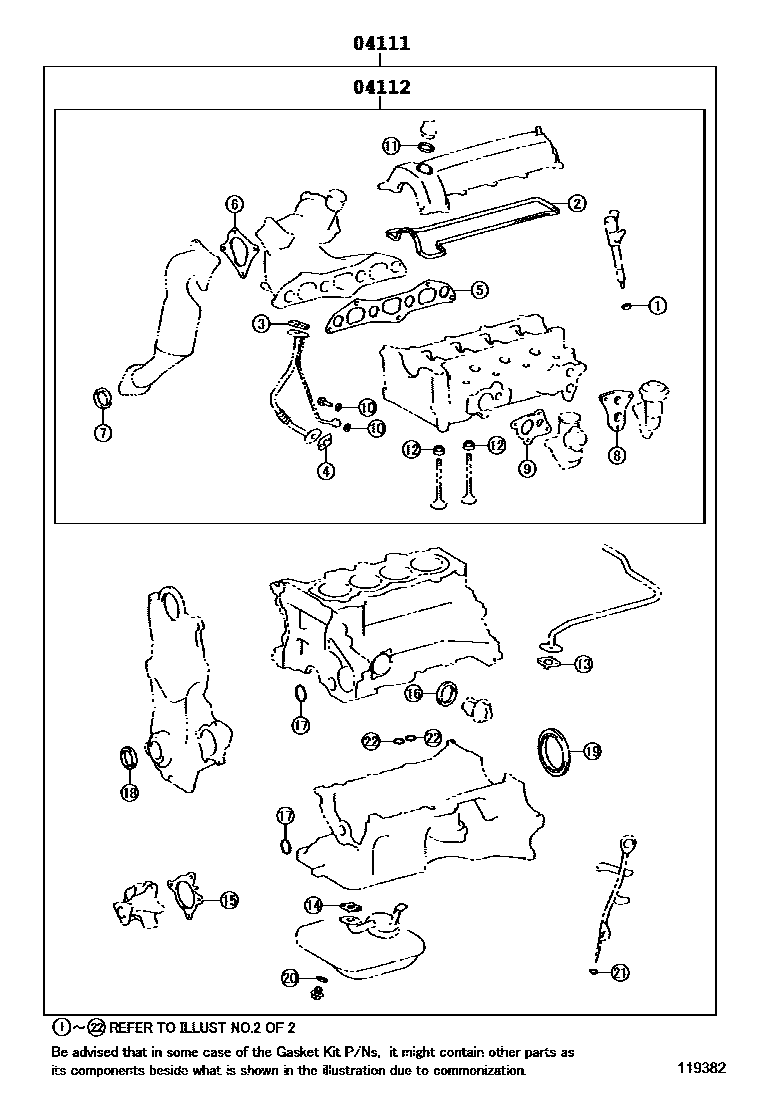

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119382
Engine Overhaul Gasket Kit — 119382 (200110 – 200509)

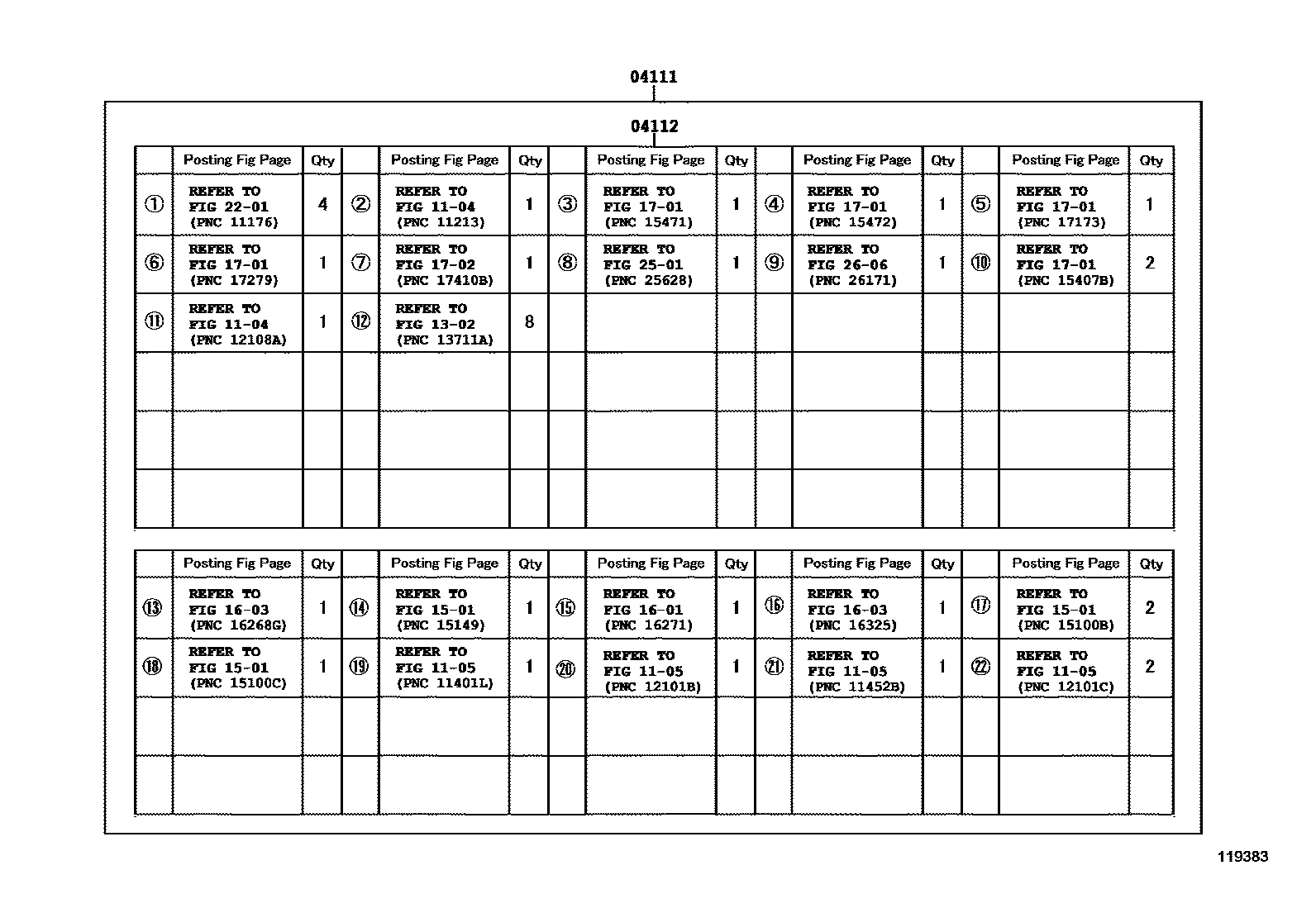

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119383
Engine Overhaul Gasket Kit — 119383 (200110 – 200509)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21040 · 04111-21060 · 04111-21061 · 04111-21062 · 04111-33020 · 04111-33021 · 04111-33022 · 04111-33060
04112Engine valve grinding pad assembly04112-21040 · 04112-21060 · 04112-21061 · 04112-21062 · 04112-33020 · 04112-33021 · 04112-33060
