Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

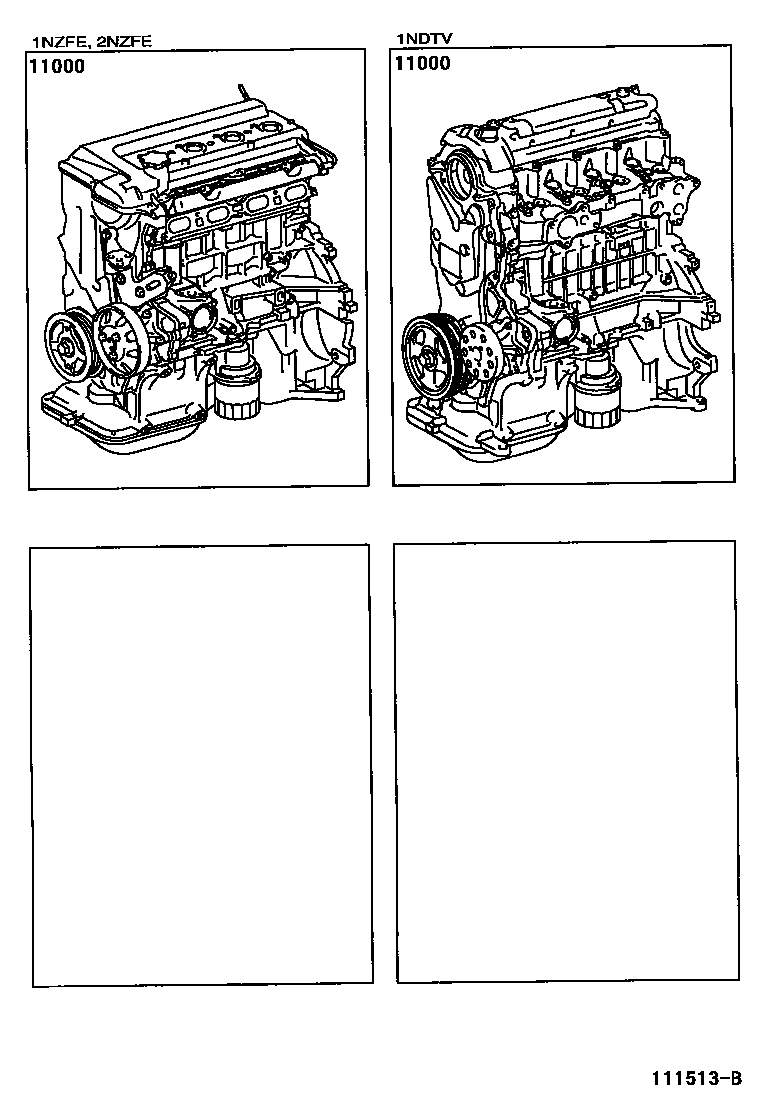

Toyota YARIS Partial Engine Assembly EPC diagram — 111513B
Partial Engine Assembly — 111513B (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21040 · 19000-21041 · 19000-21140 · 19000-21160 · 19000-21191 · 19000-21210 · 19000-21230 · 19000-21231 · 19000-33050
