Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

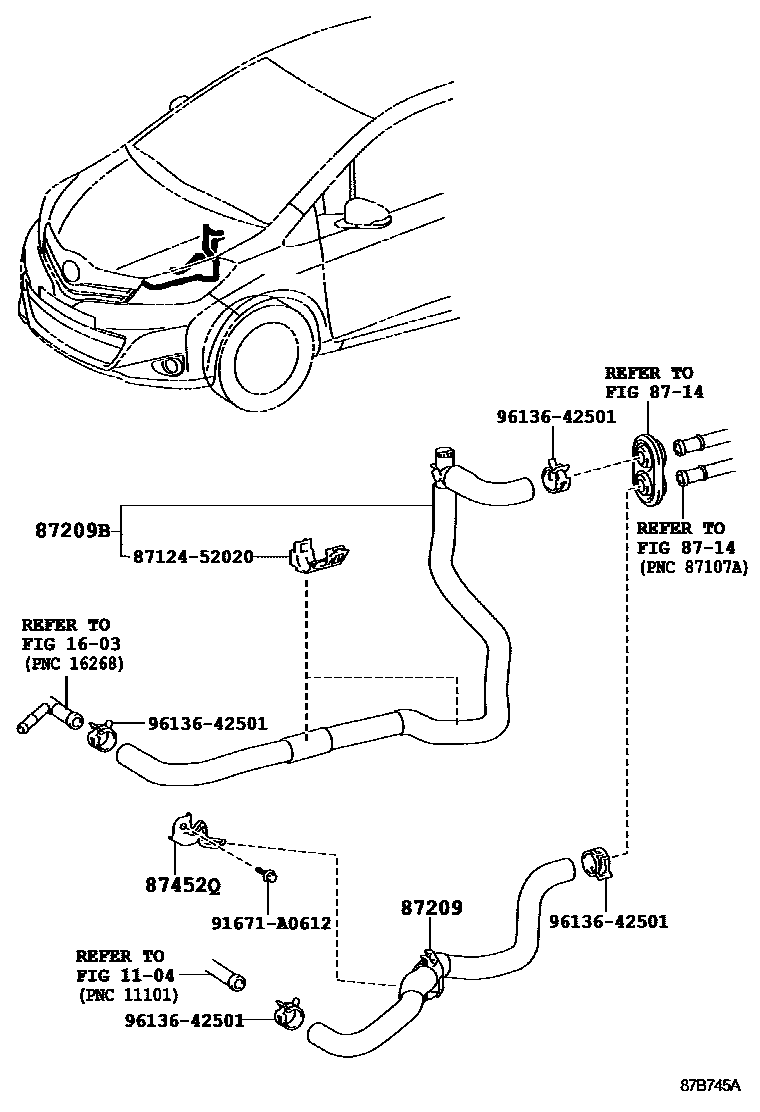

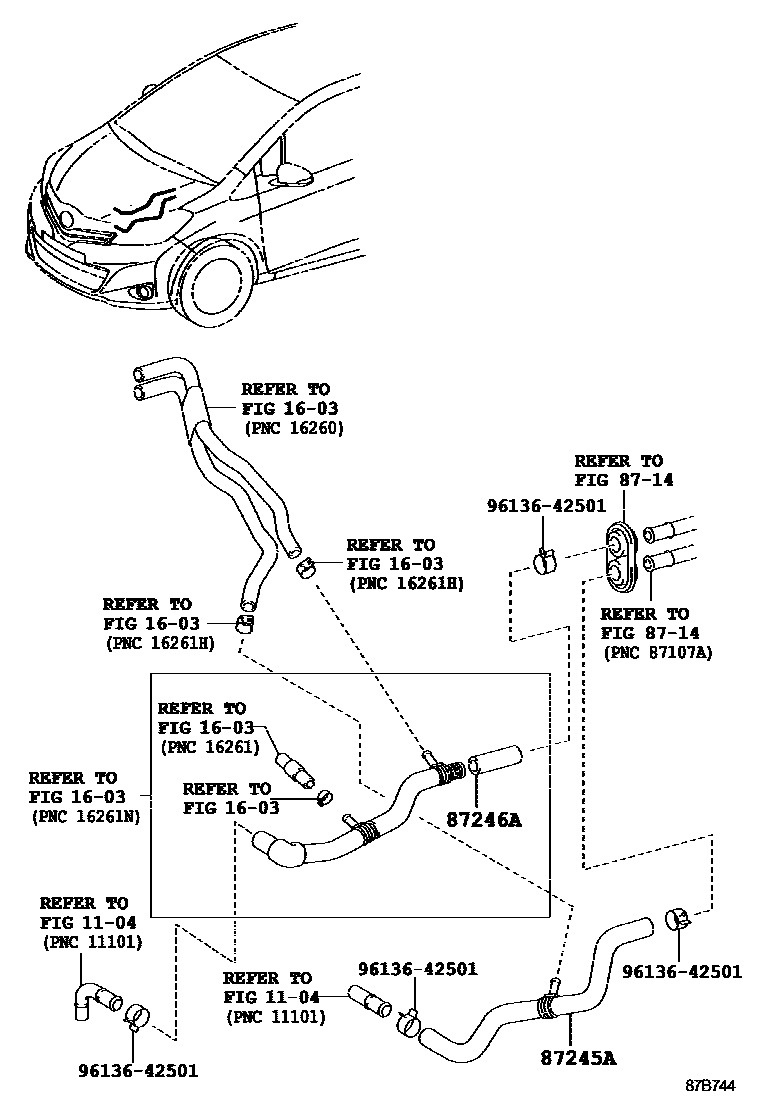

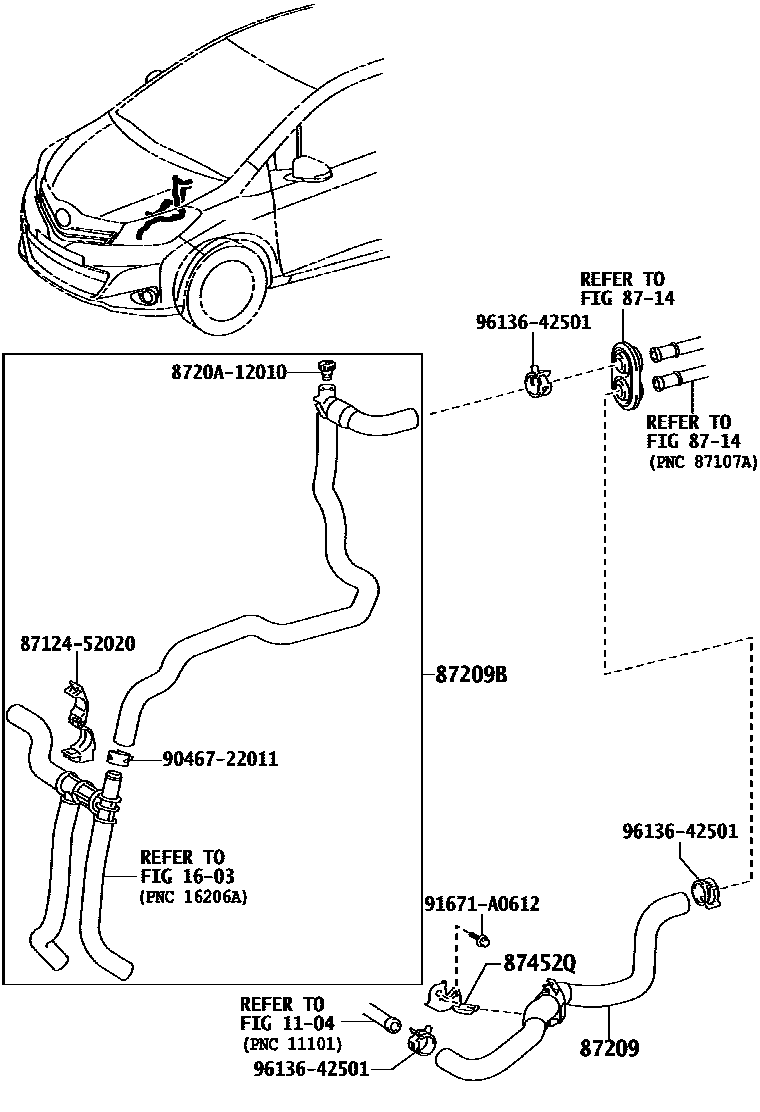

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-52260 |
| 87209B | Water hose sub-assembly B | 87209-52270 · 87209-52280 |
| 87245A | Heater water inlet hose A | 87209-52160 |
| 87246A | Heater outlet hose A | 87245-52190 |
| 87452Q | Heater Bracket No. 1 | 87452-52070 |
