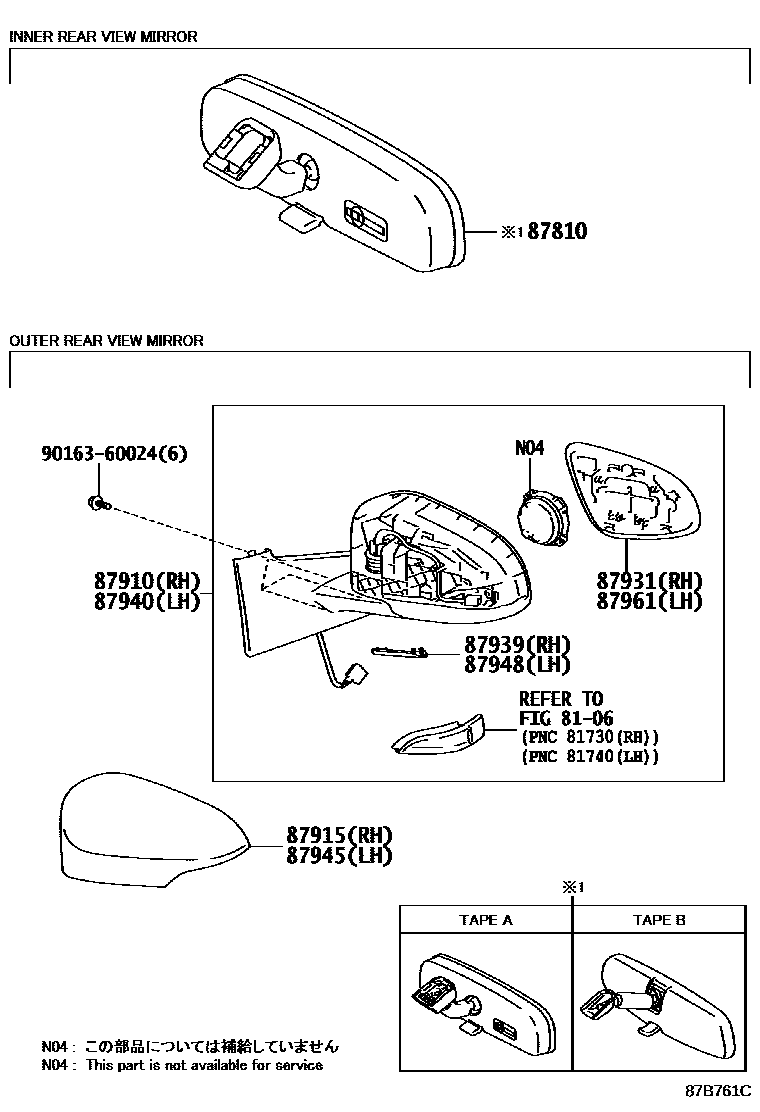

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52041 · 87810-AA011 |
| 87910 | Right exterior rearview mirror assembly | 87910-52C50 · 87910-52D00 · 87910-52D20 · 87910-52D30 · 87910-52D40 · 87910-52D50 |
| 87915 | Right exterior rearview mirror cover | 87915-52150 |
| 87931 | Right exterior rearview mirror | 87931-52B90 · 87931-52C50 |
| 87939 | Right exterior rearview mirror hole cover | 87939-52B90 |
| 87940 | Left exterior rearview mirror assembly | 87940-52C30 · 87940-52C80 · 87940-52D00 · 87940-52D10 · 87940-52D20 · 87940-52D30 |
| 87945 | Left exterior rearview mirror cap | 87945-52150 |
| 87948 | Left exterior rearview mirror hole cover | 87948-52B30 |
| 87961 | Left exterior rearview mirror | 87961-52B30 · 87961-52C30 |
