Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

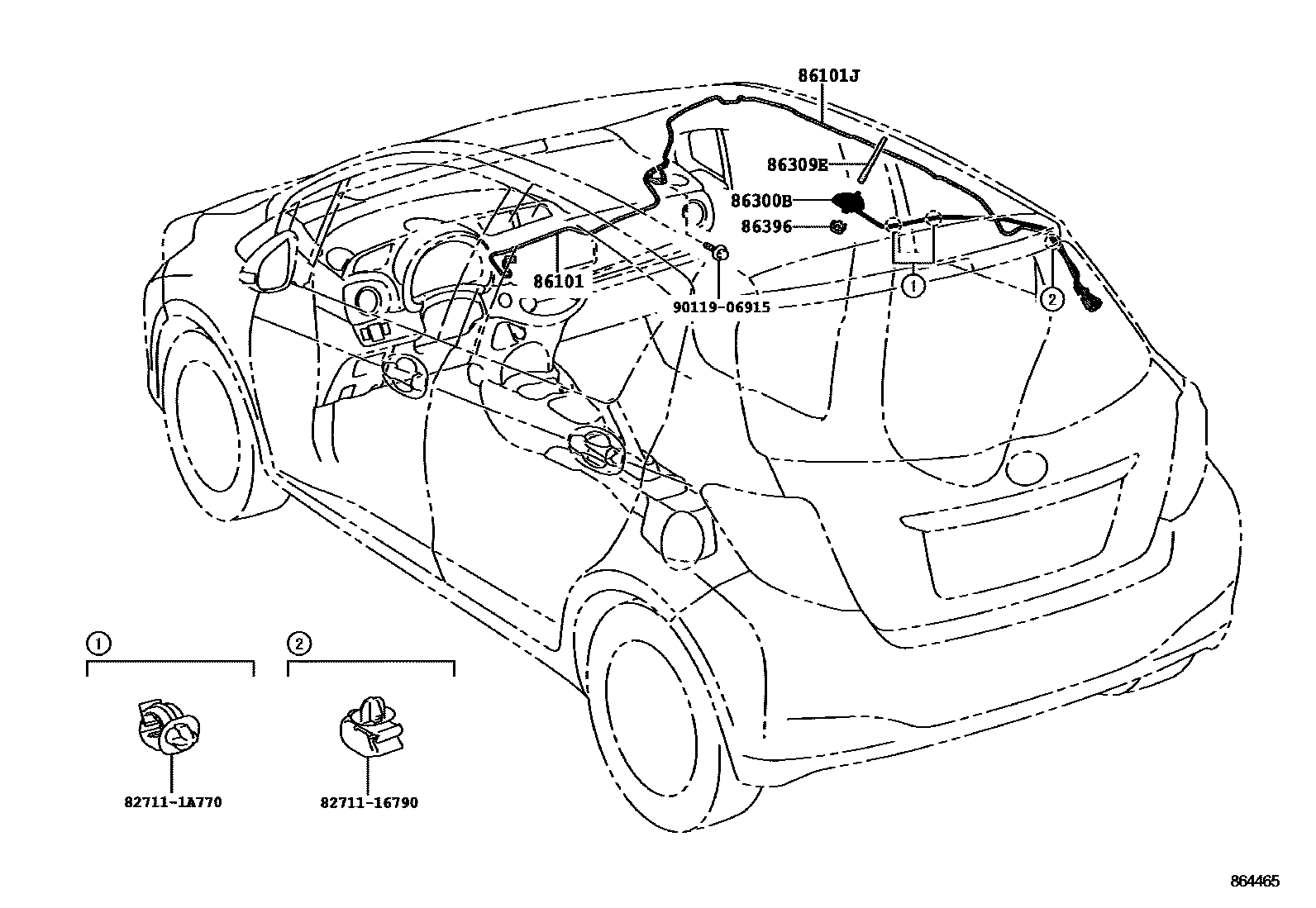

Toyota YARIS antenna EPC diagram — 864465
antenna — 864465 (201108 – 999999)

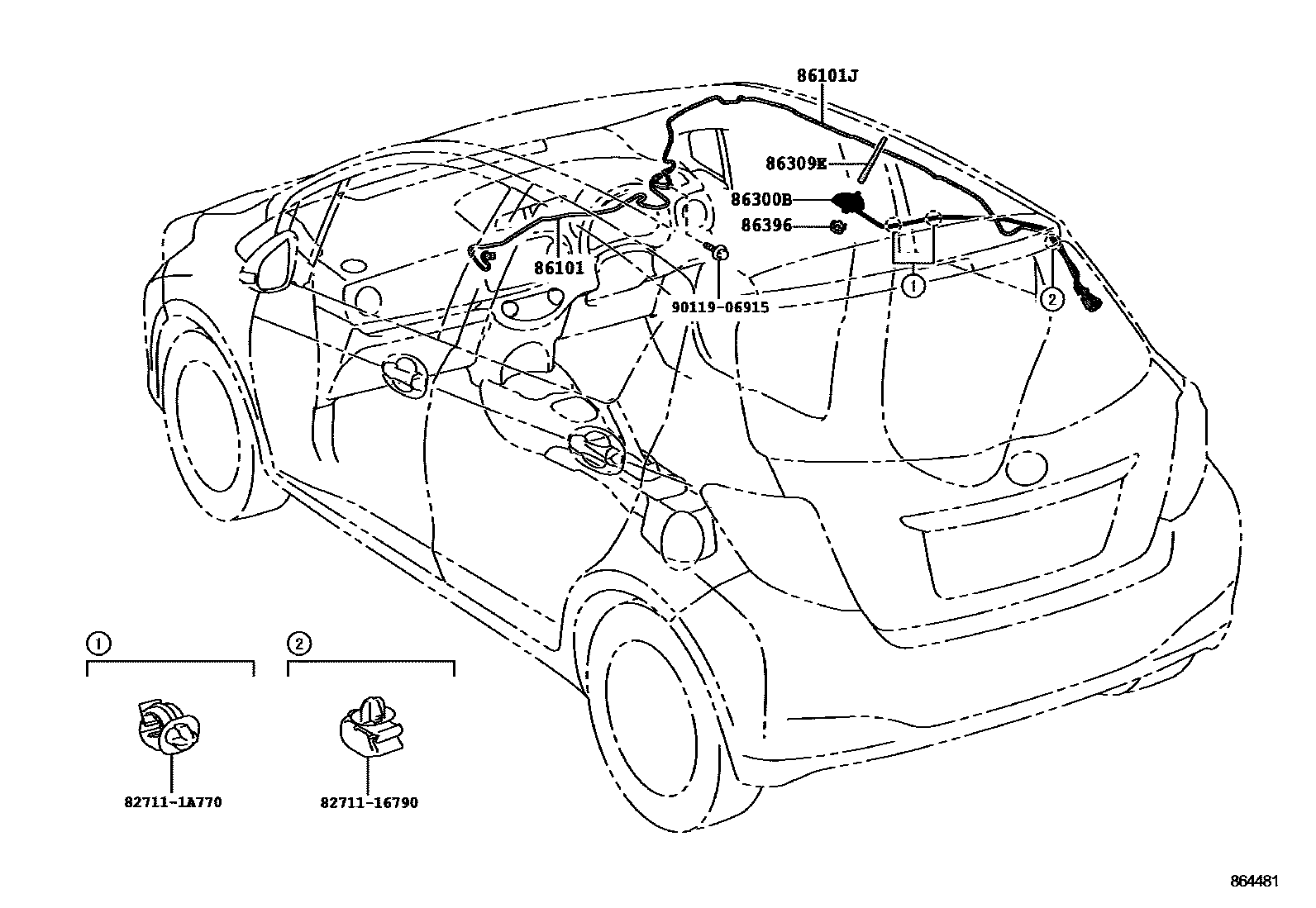

Toyota YARIS antenna EPC diagram — 864481
antenna — 864481 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-52860 · 86101-52890
86101JNo. 2 antenna wire sub-assembly86101-52830
86300BAmplifier antenna assembly86300-52520 · 86300-52590
86309ERoof antenna sub-assembly86309-42080 · 86309-47020
86396Antenna nut86396-47010
