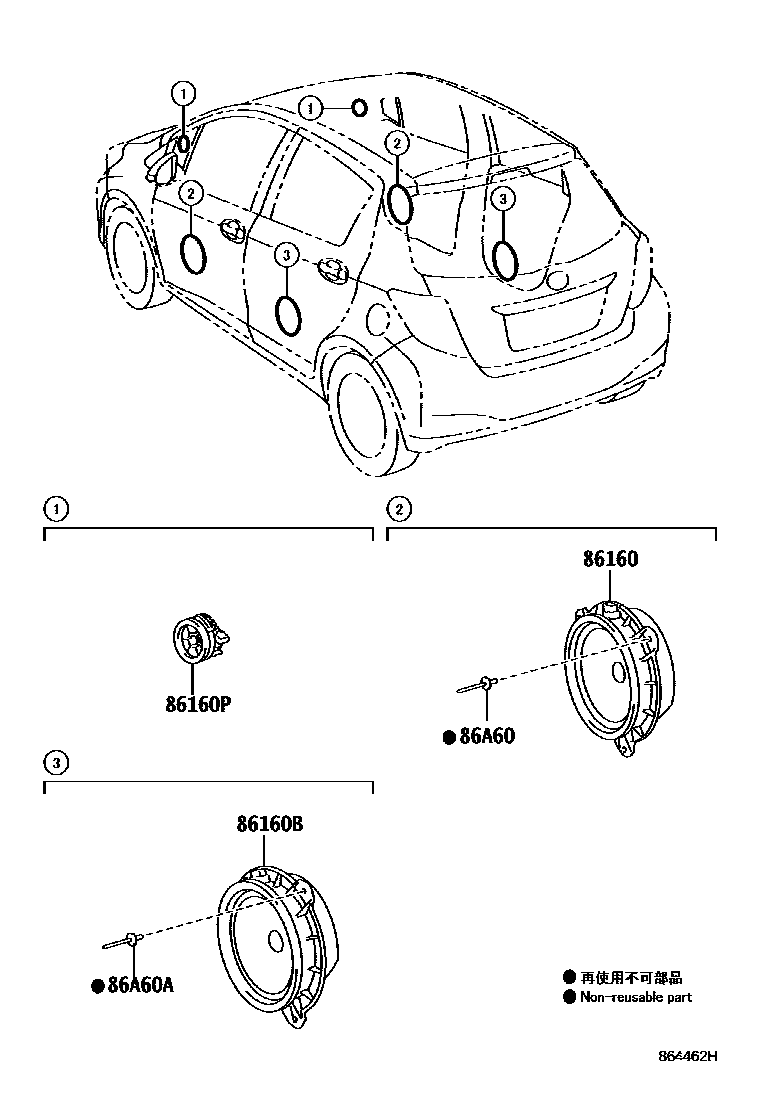

Toyota YARIS 扬声器 — Figure 8602
Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-52310 · 86160-52330 |
| 86160B | Rear speaker assembly | 86160-52310 · 86160-52330 |
| 86160P | No. 2 front speaker assembly | 86160-52340 |
| 86A60 | RIVET (HAUT-PARLEUR RADIO) | 90269-05034 |
| 86A60A | RIVET (HAUT-PARLEUR RADIO) | 90269-05034 |
