Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 9 PNC and OE references.

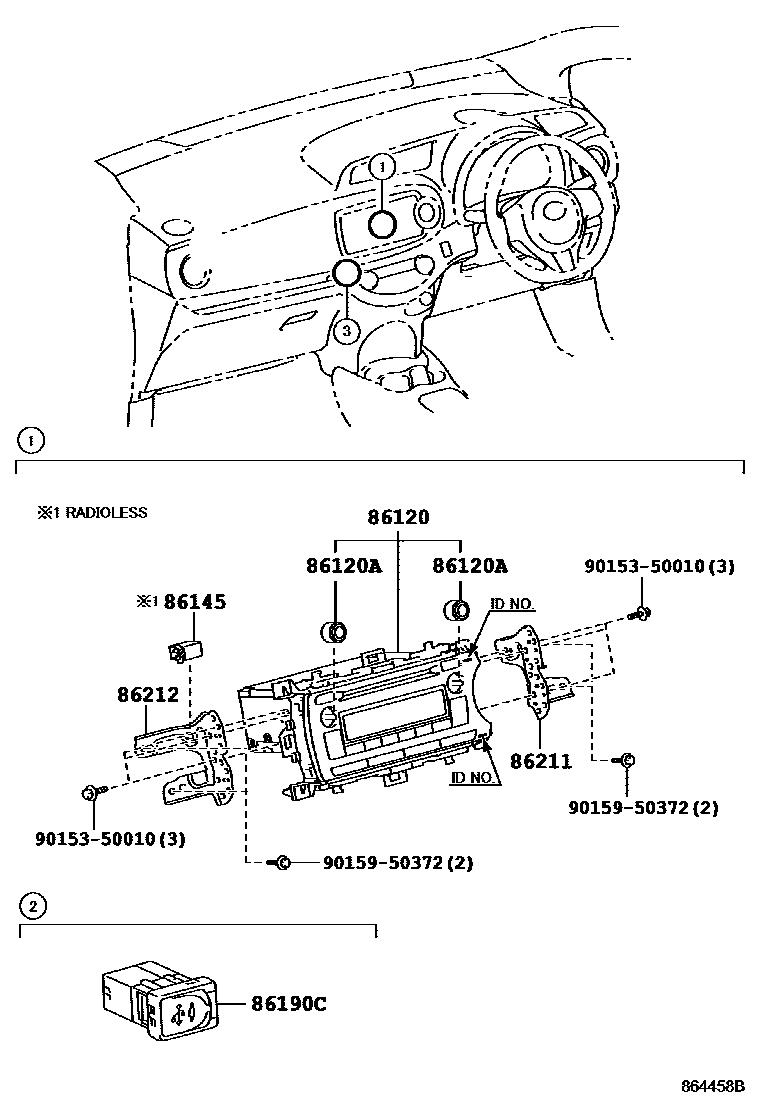

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 864458B
收音机、放大器和冷凝器 — 864458B (201108 – 999999)

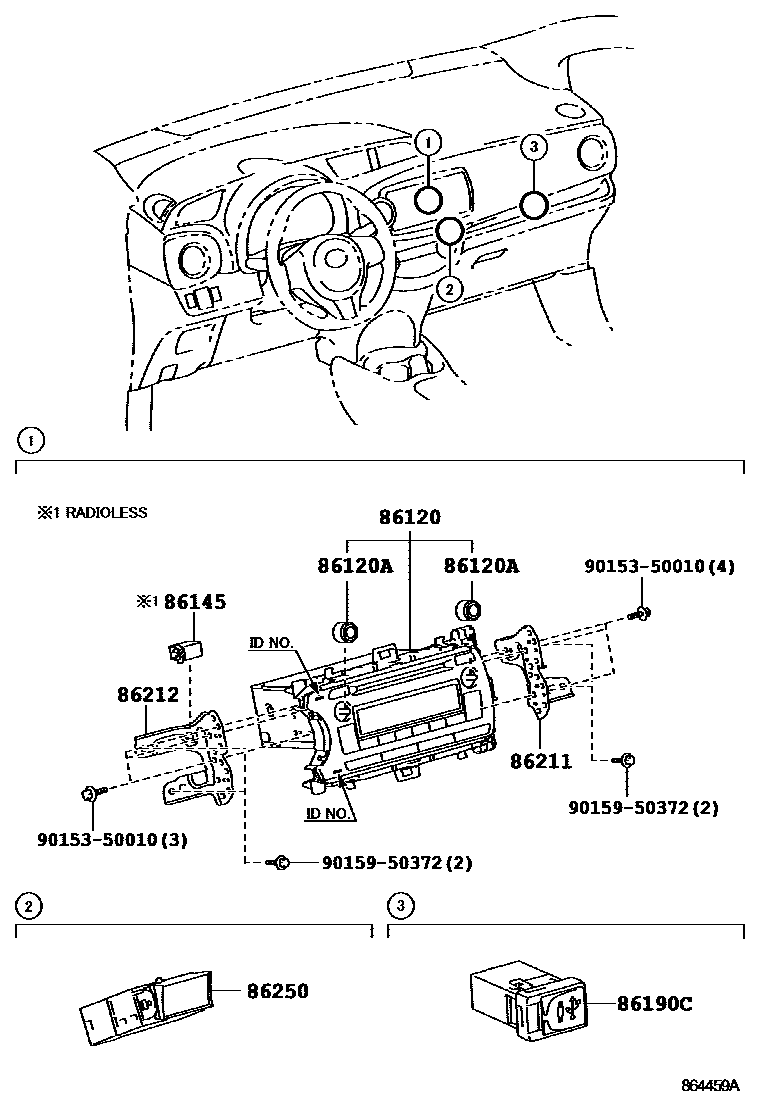

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 864459A
收音机、放大器和冷凝器 — 864459A (201108 – 999999)

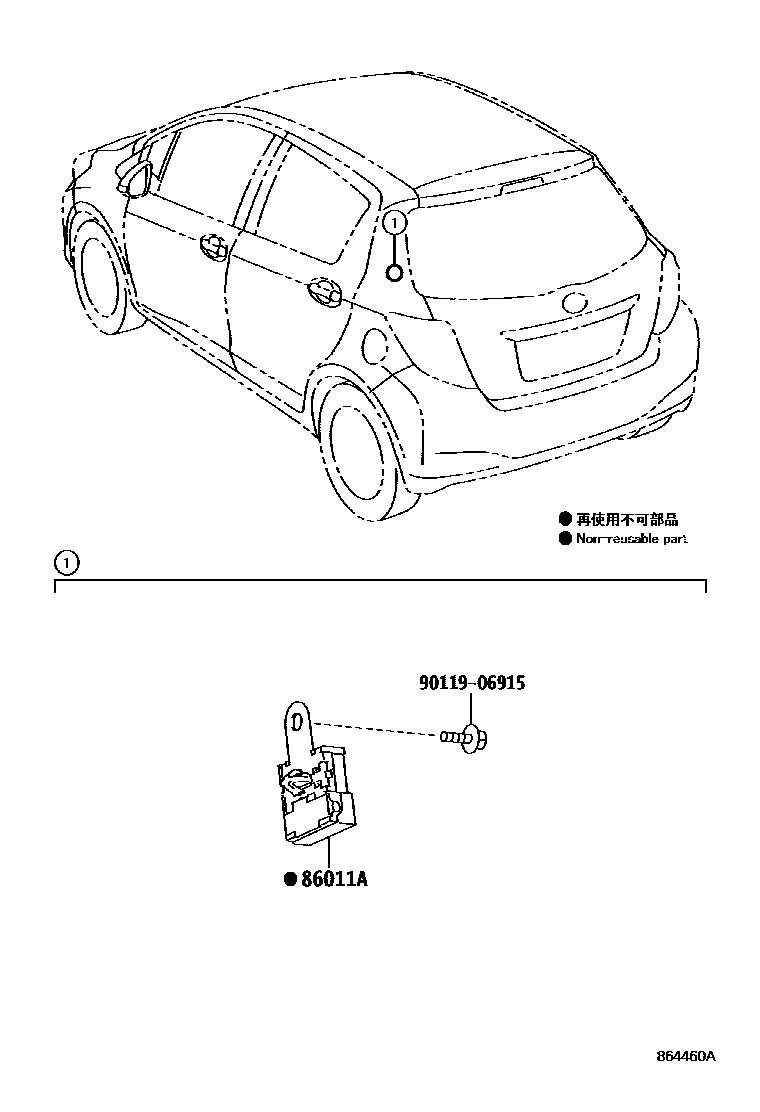

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 864460A
收音机、放大器和冷凝器 — 864460A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04189
86120Radio assembly86120-52B40 · 86120-52B60 · 86140-52030 · 86140-52040
86120ARadio switch knob90010-23033 · 90010-24149
86145Antenna connector86145-52010
86190CStereo socket connector assembly No. 186190-52060
86211No. 1 radio bracket86211-52250
86212No. 2 radio bracket86212-52180
86250amplifier loudspeaker assembly86250-52070
86995Dwarning label86995-52010
