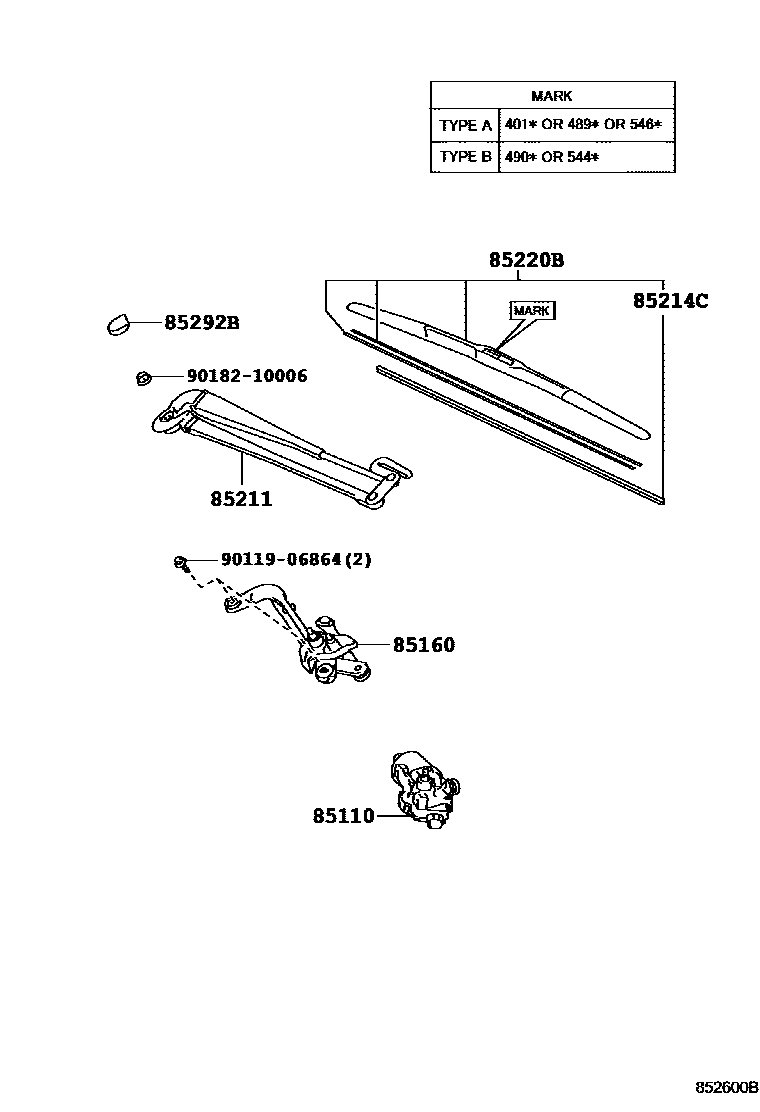

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-52610 · 85110-52620 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52530 · 85150-52550 |
| 85211 | front wiper arm | 85211-52400 · 85211-52401 · 85211-52530 · 85221-52360 · 85221-52361 |
| 85214C | Central wiper blade rubber strip | 85214-28080 · 85214-52070 · 85214-52080 |
| 85220B | front wiper blade | 85212-52260 · 85212-52270 · 85212-52271 · 85222-52270 · 85222-52280 · 85222-52281 |
| 85292B | Front wiper arm cap | 85292-13010 · 85292-52060 |
