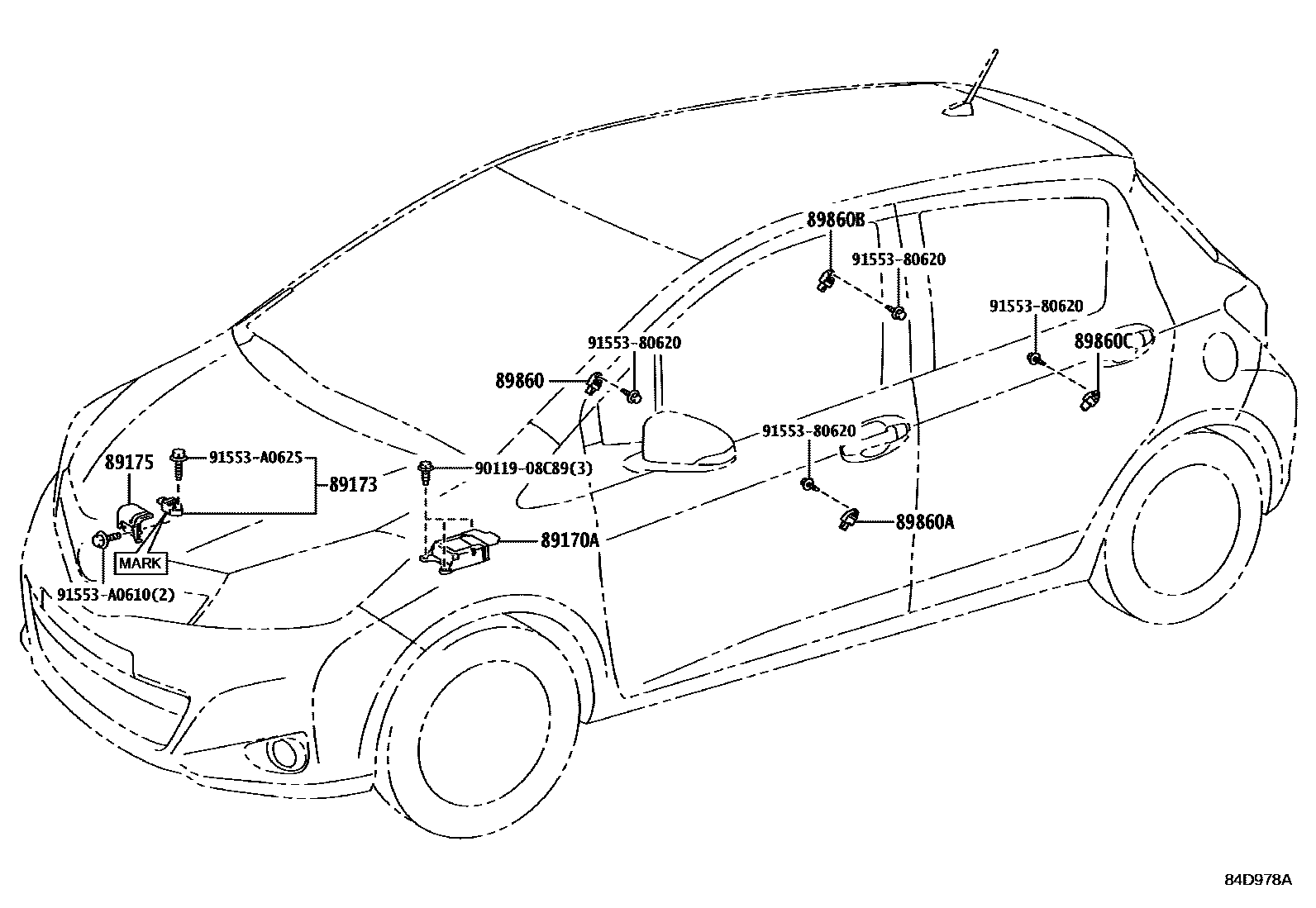

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52F60 · 89170-52F70 |
| 89173 | front airbag sensor | 89173-59265 |
| 89175 | air bag sensor bracket | 89175-52020 |
| 89860 | Right side airbag sensor assembly | 89831-52020 |
| 89860A | Left side air bag sensor assembly | 89831-52020 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-52020 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-52020 |
