Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.

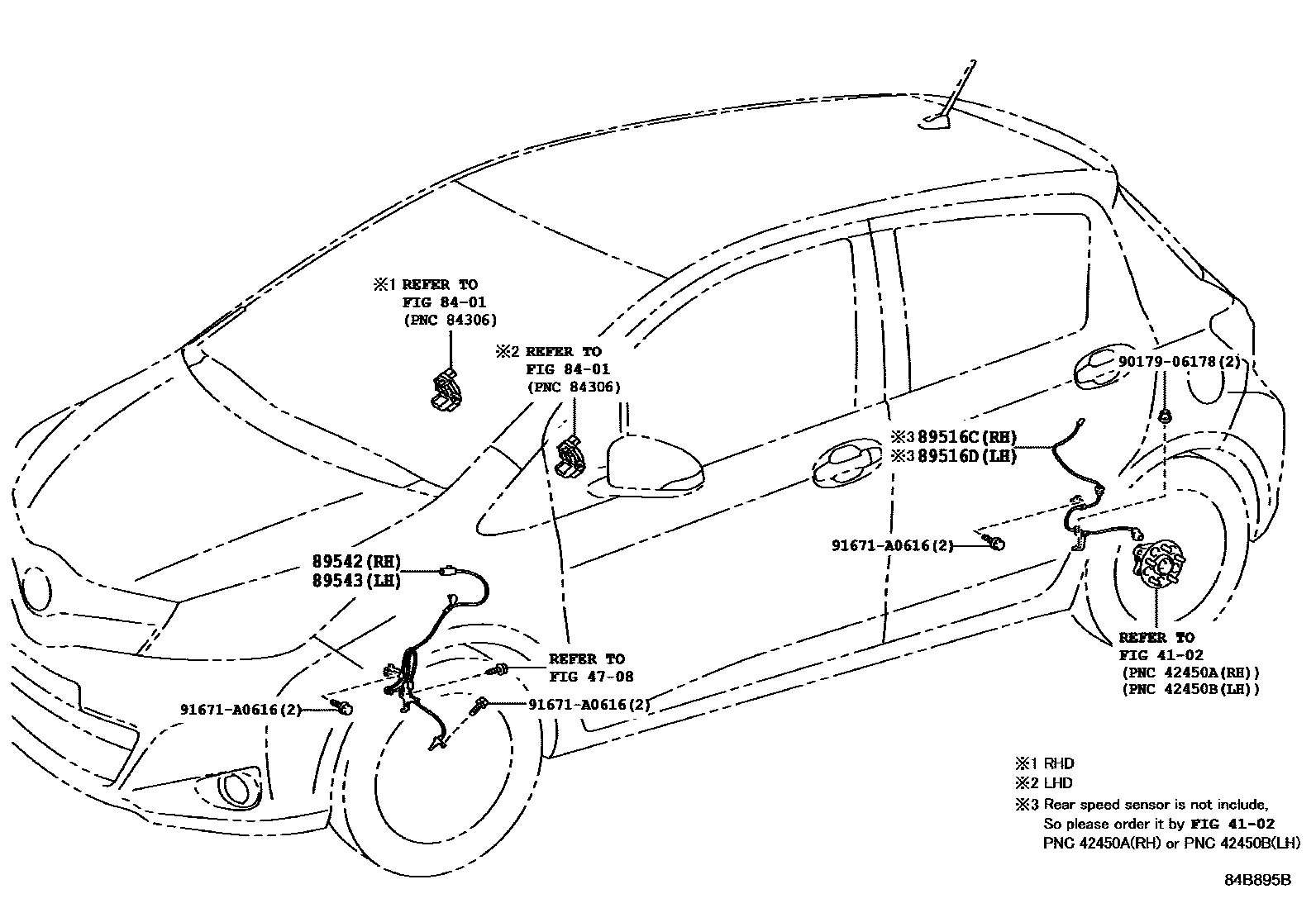

Toyota YARIS ABS 和 VSC EPC diagram — 84B895B
ABS 和 VSC — 84B895B (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516CRight anti-skid control sensor harness89516-52130
89516DLeft anti-skid control sensor wiring harness89516-52140
89542Right front wheel speed sensor89542-52090
89543Left front wheel speed sensor89543-52090
