Toyota YARIS 电子燃油喷射系统 — Figure 8404

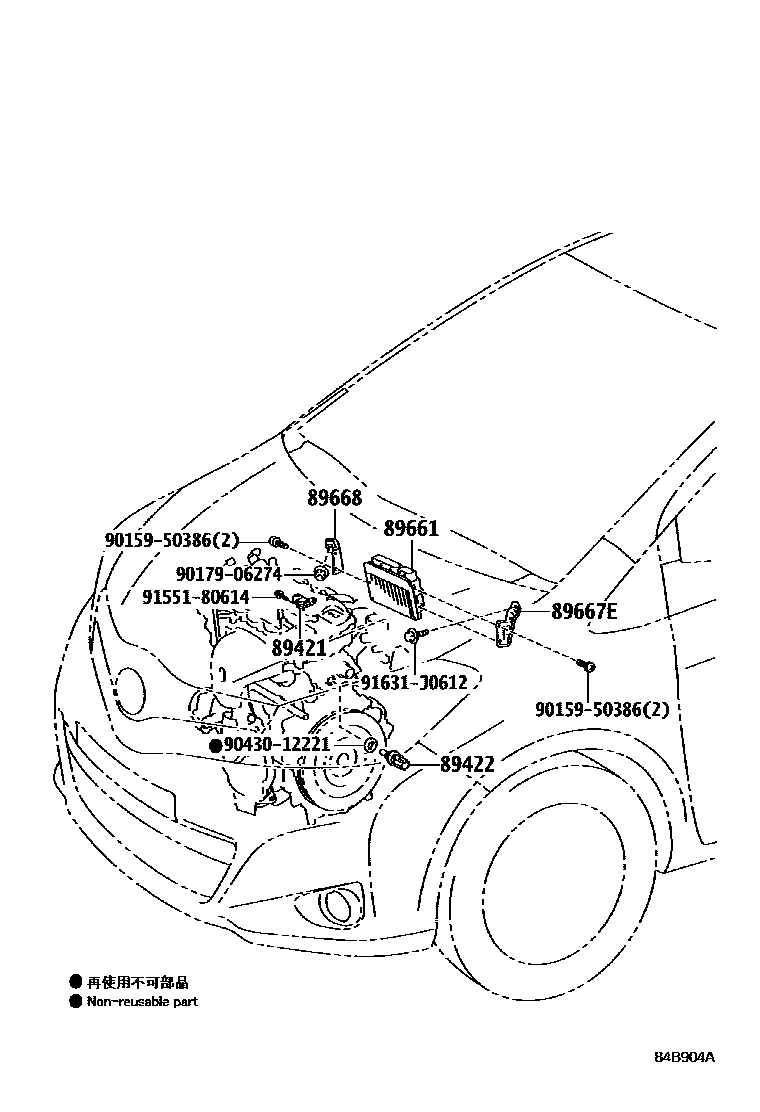

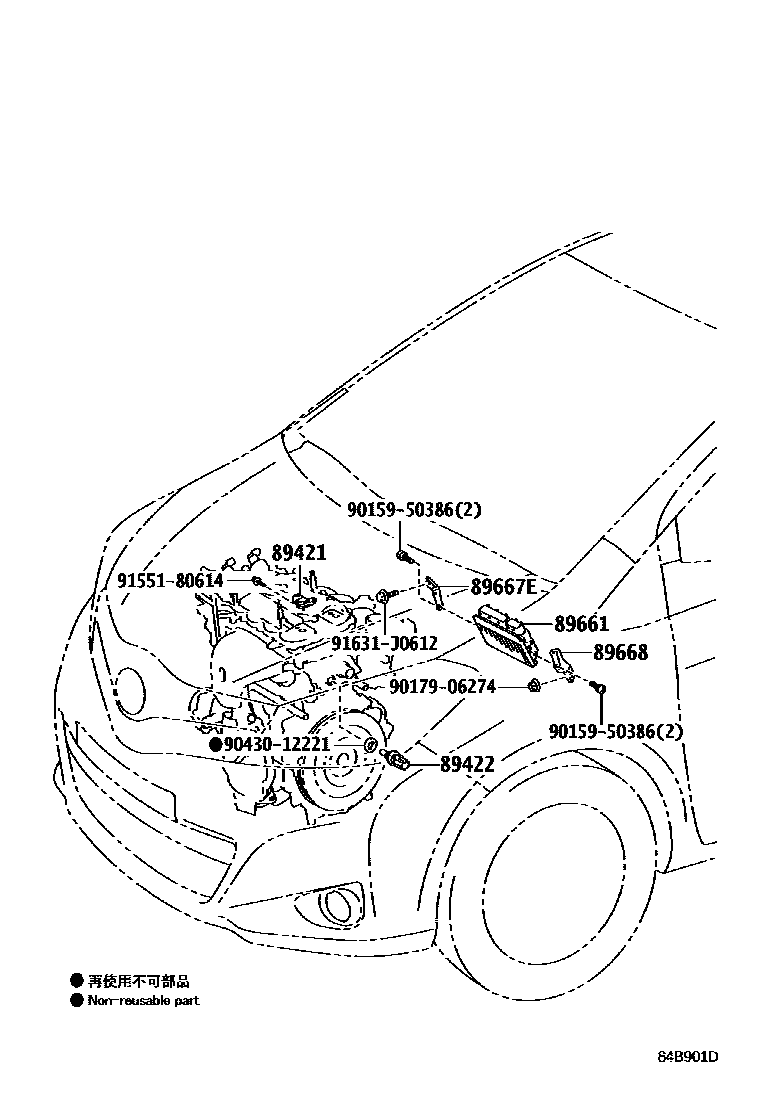

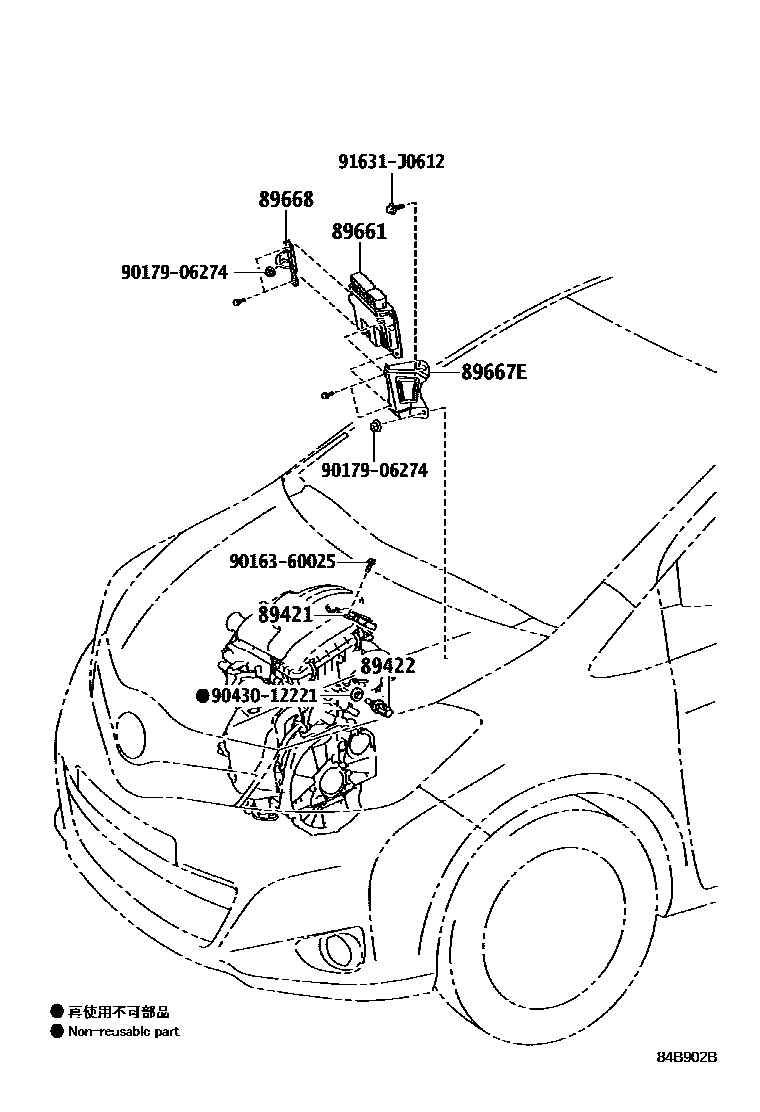

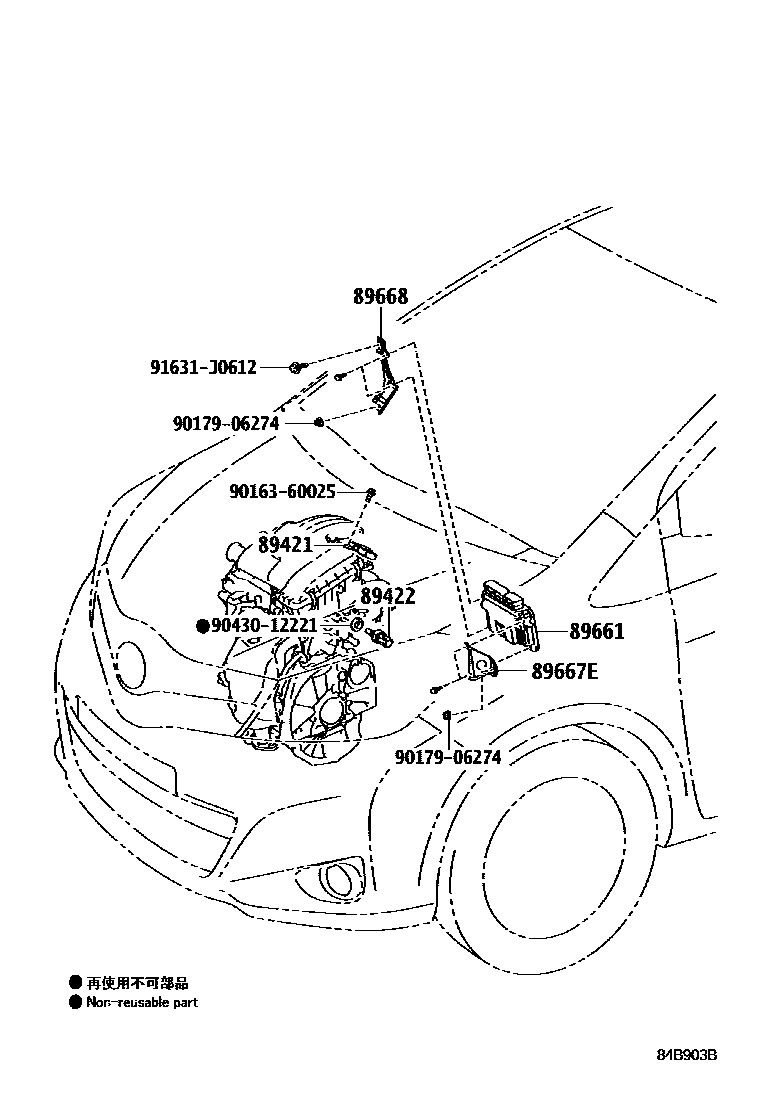

Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 · 89421-52010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-0DF10 · 89661-0DF20 · 89661-52R80 · 89661-52R90 · 89661-52S00 · 89661-52S10 · 89661-52S20 · 89661-52S30 · 89661-52Z90 · 89661-52Z91 |
| 89667E | No. 1 engine control ECU bracket | 89667-52210 · 89667-52220 · 89667-52330 · 89667-52340 |
| 89668 | No. 2 engine control ECU bracket | 89668-52230 · 89668-52240 · 89668-52340 · 89668-52350 |
