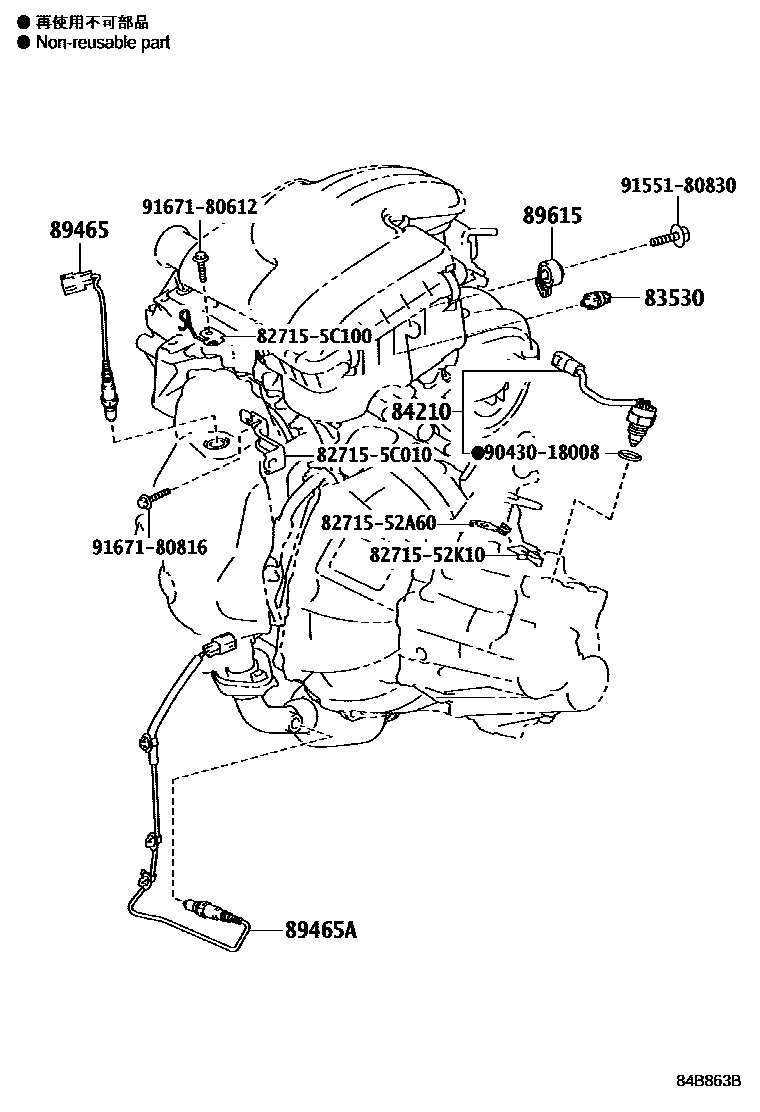

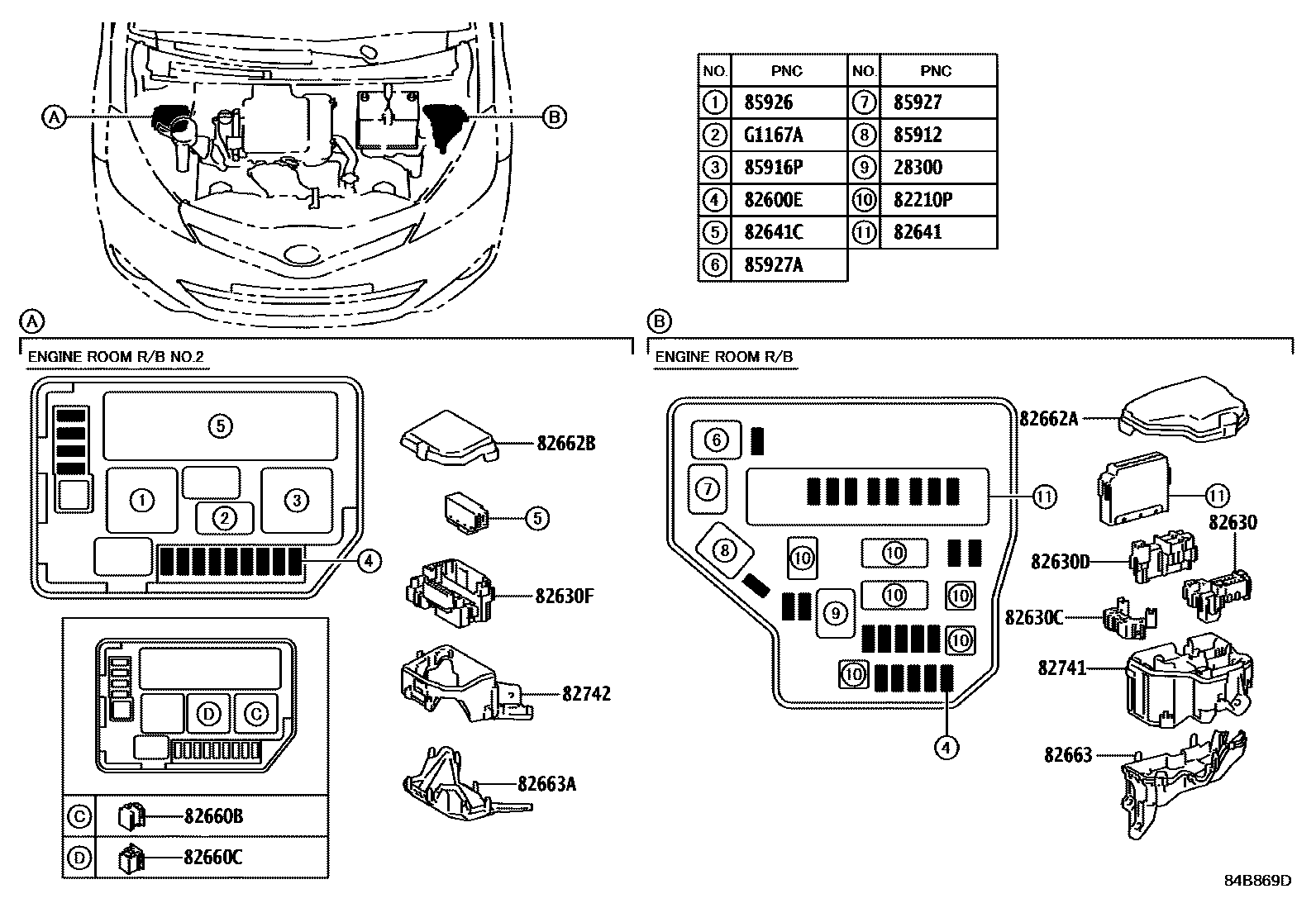

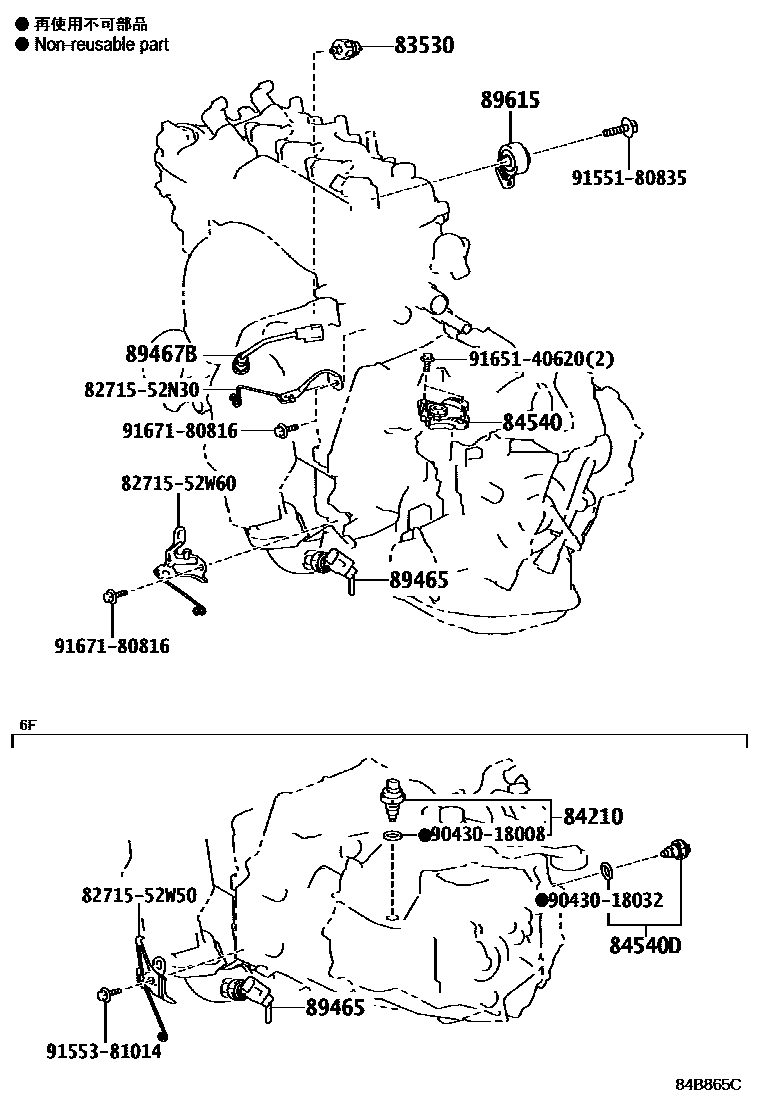

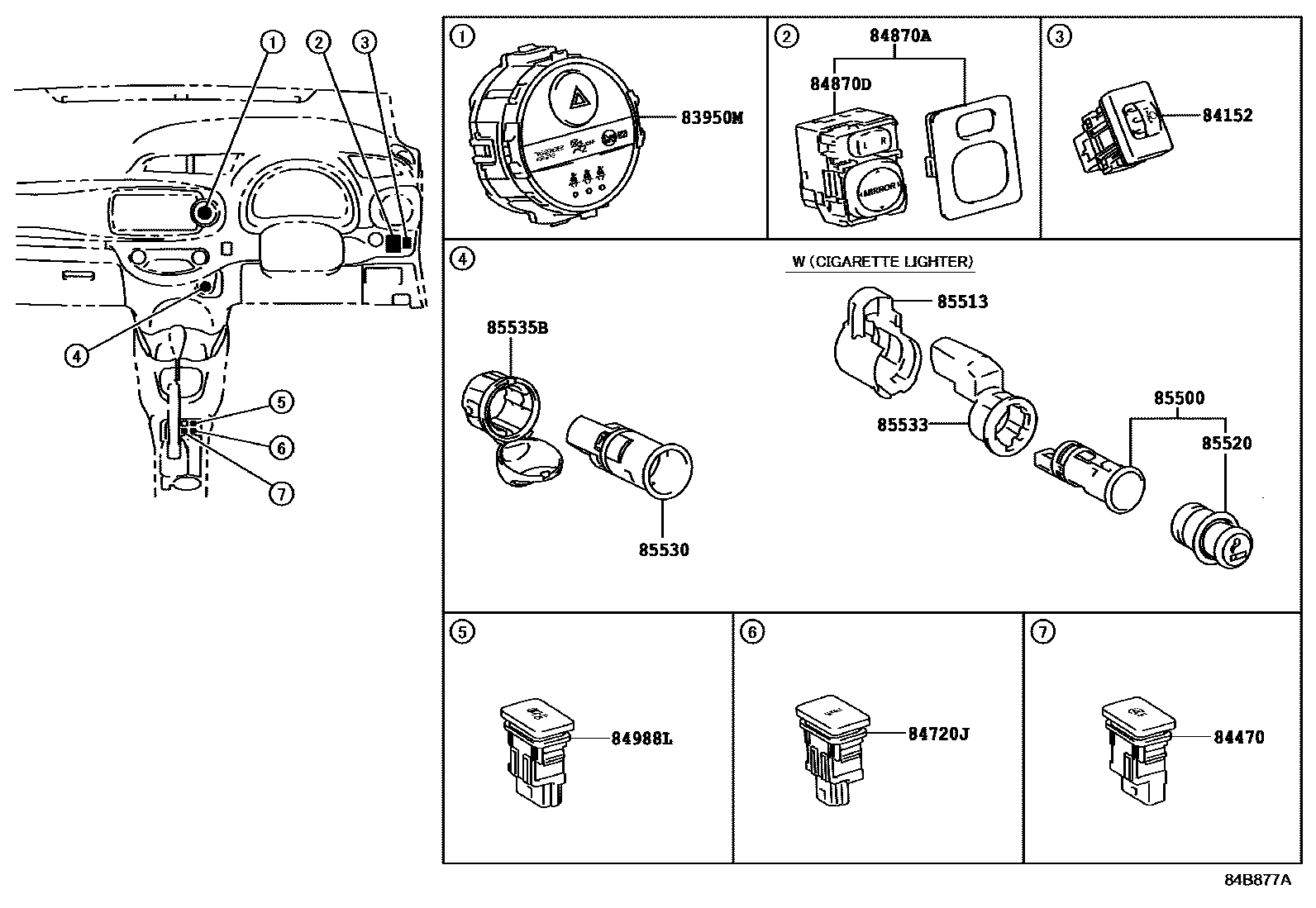

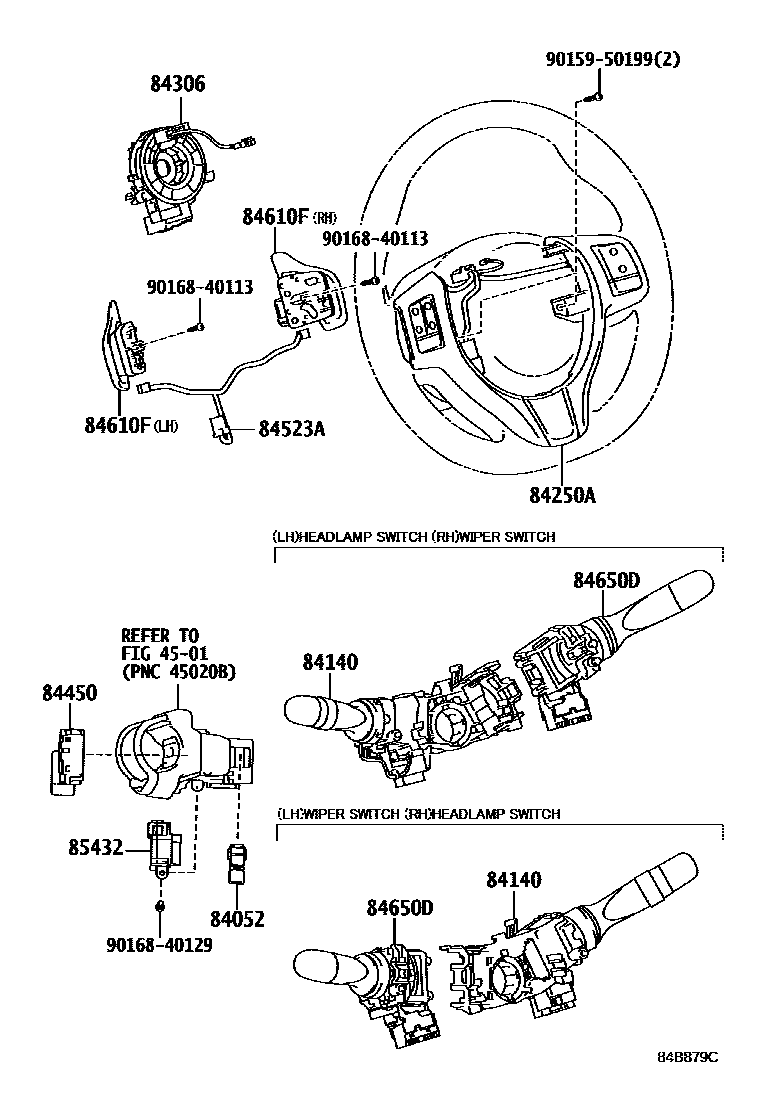

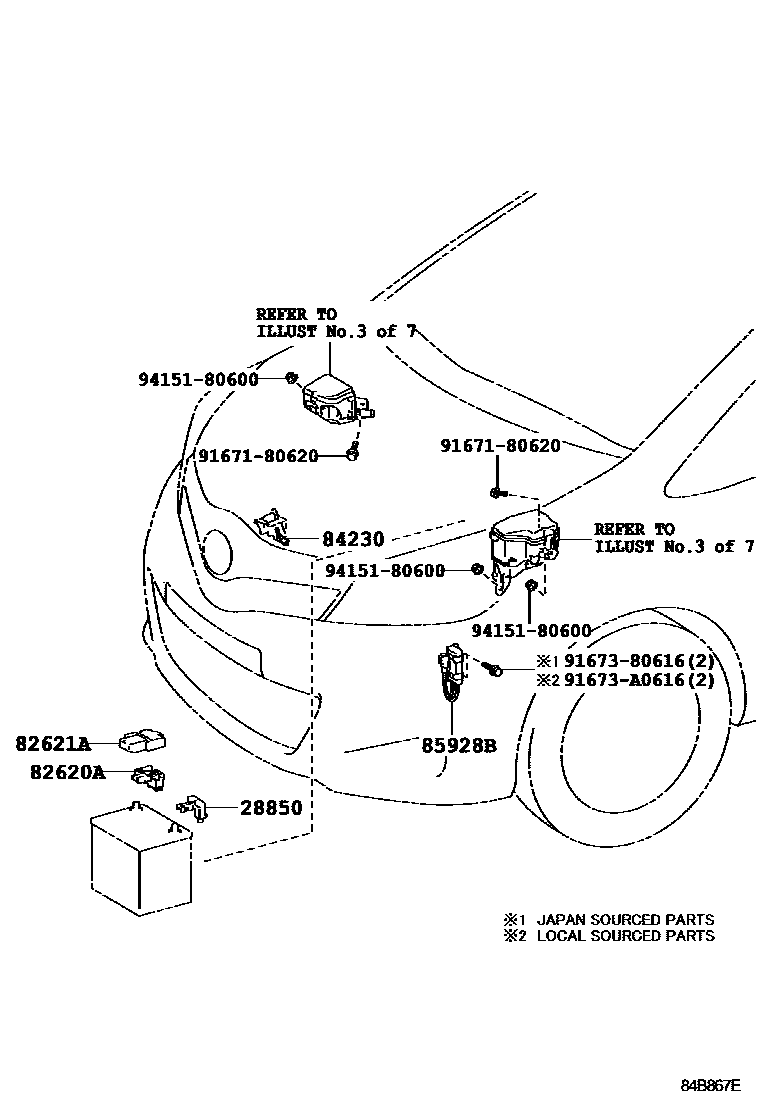

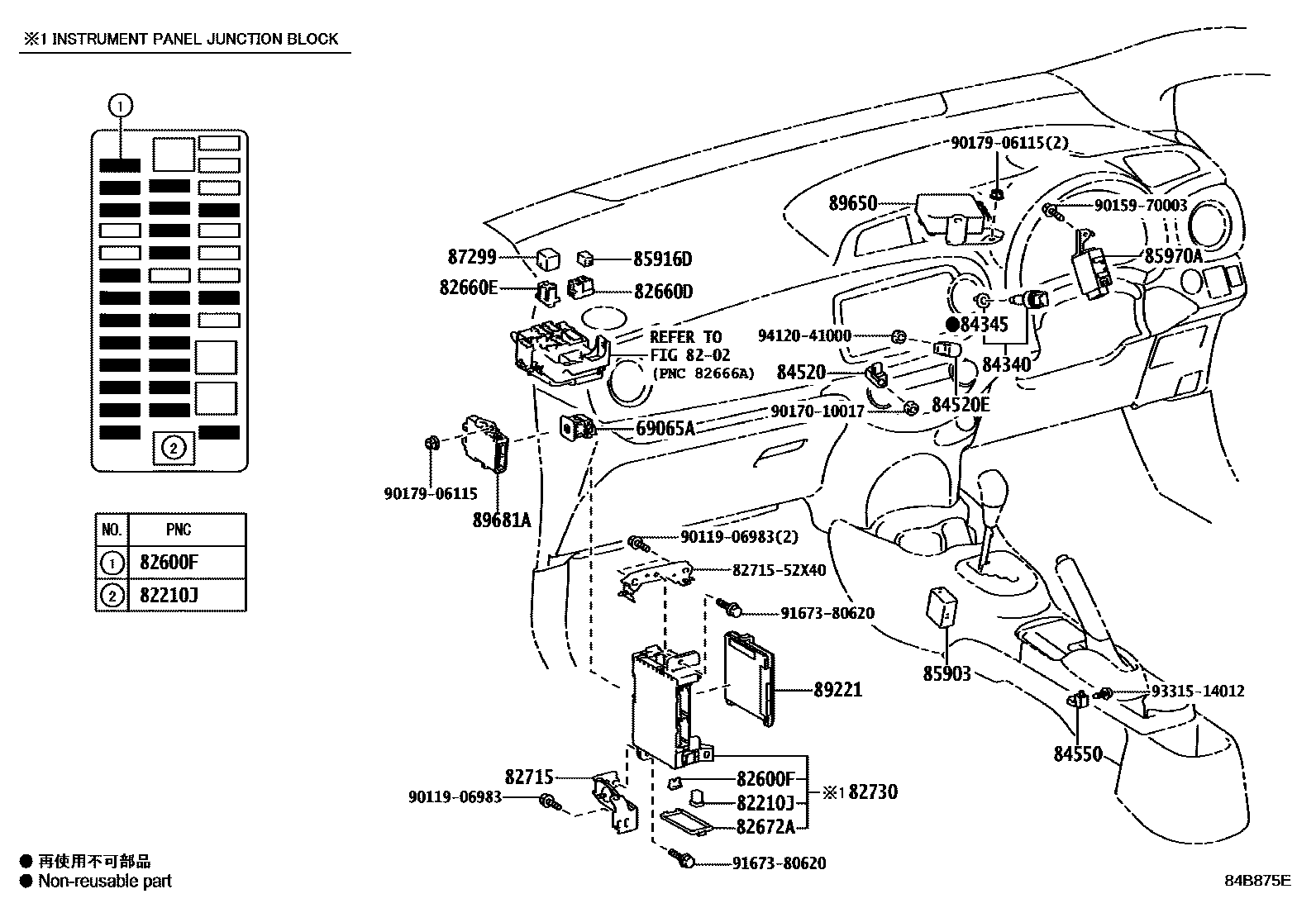

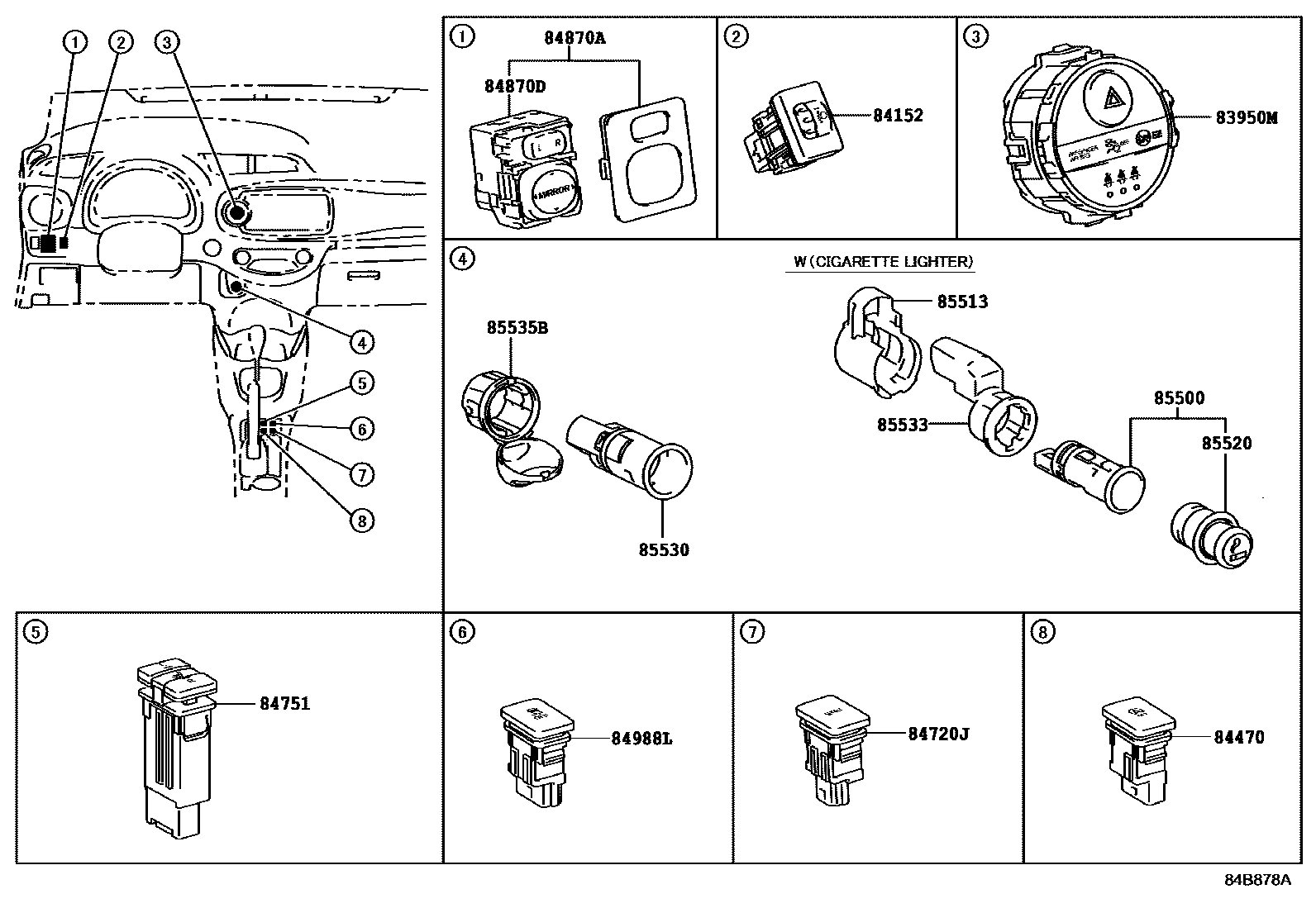

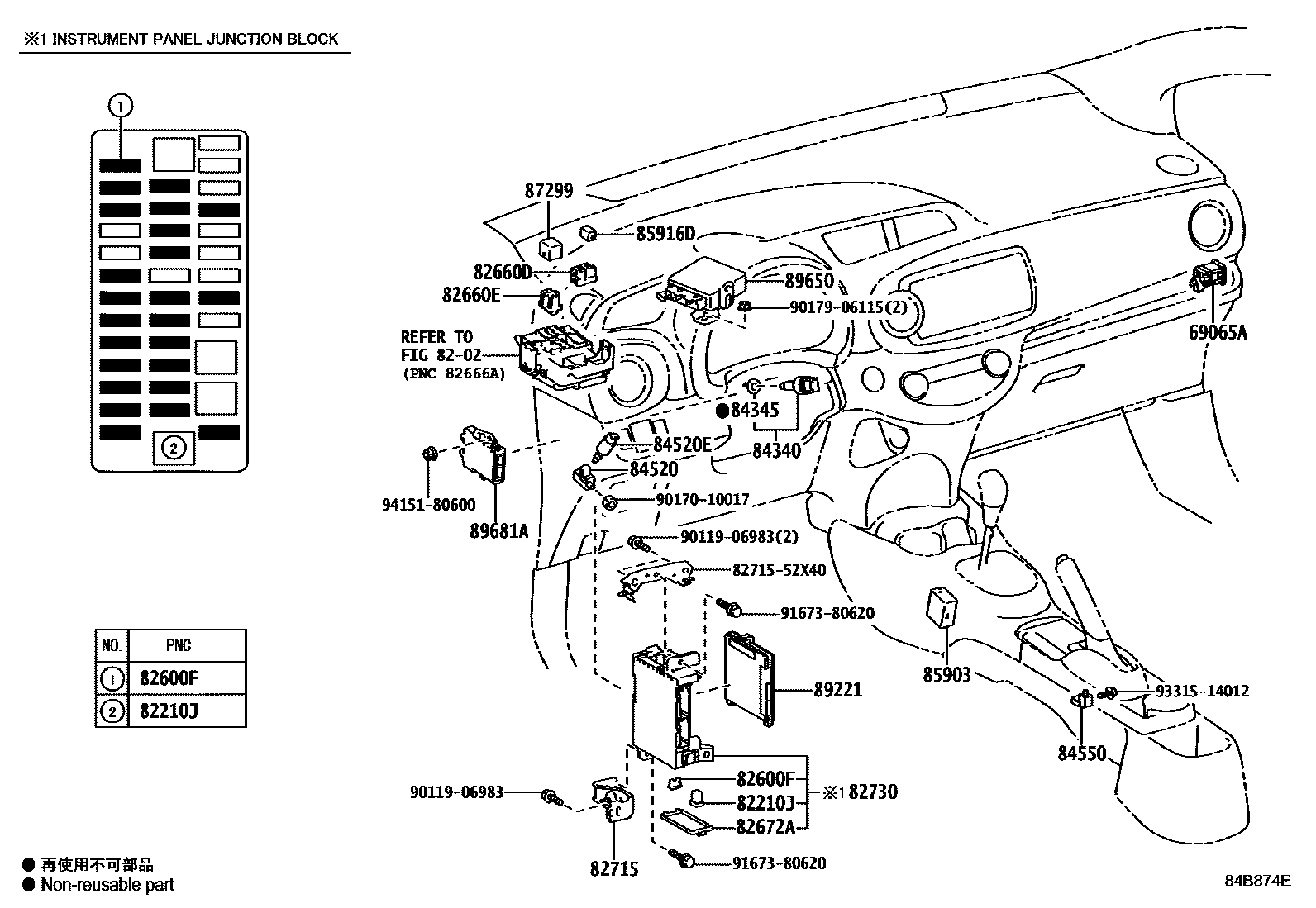

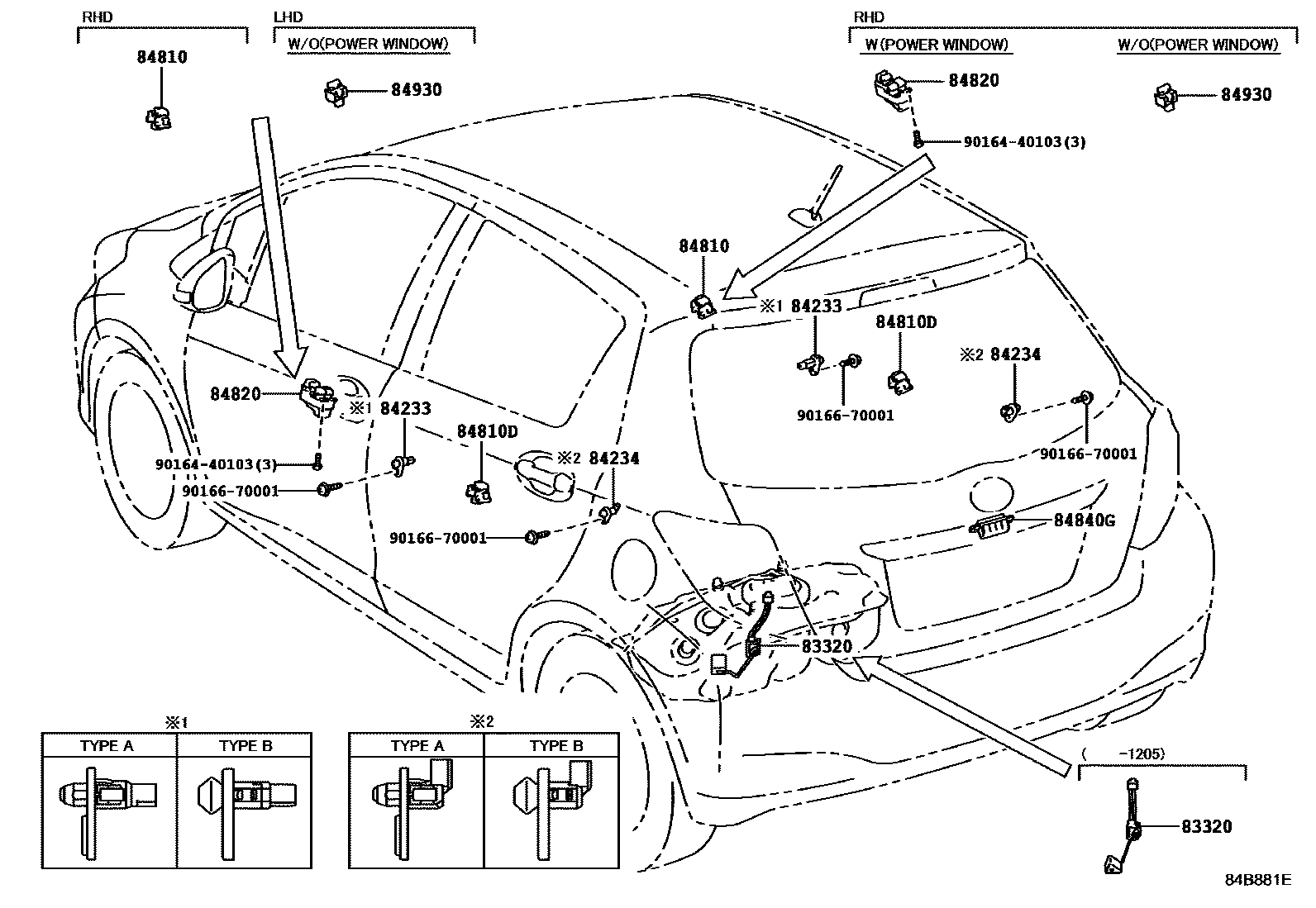

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 10 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28850 | Battery current sensor assembly | 28850-40010 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 · 69065-52040 |
| 82210J | fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08296 · 90982-08300 · 90982-08305 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-52140 |
| 82630 | Fuse holder assembly | 82631-52010 |
| 82630C | Fuse holder assembly | 82631-52020 |
| 82630D | fuse holder | 82631-52030 |
| 82630F | fuse holder | 82631-52040 |
| 82641 | Integrated relay No. 1 | 82641-52020 |
| 82641C | Integrated relay No. 2 | 82641-52060 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-0C110 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-52100 |
| 82662A | No. 1 relay box upper cover | 82662-52480 |
| 82662B | No. 2 relay box upper cover | 82662-52660 · 82662-52661 |
| 82663 | Relay box lower cover | 82663-52080 |
| 82663A | No. 2 relay box lower cover | 82663-52090 |
| 82672A | Junction box cover | 82672-52020 |
| 82715 | Wire harness clamp bracket | 82715-52X30 · 82715-52X50 |
| 82730 | Instrument panel junction box assembly | 82730-52L70 · 82730-52N60 |
| 82741 | Engine room relay box | 82741-52070 |
| 82742 | Engine room No. 2 relay box | 82741-52080 |
| 83320 | Fuel gauge sensor assembly | 83320-52230 · 83320-52270 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-52210 · 83950-52230 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-42050 · 84140-42060 · 84140-42091 · 84140-42101 |
| 84152 | Headlight beam height adjustment switch | 84152-52090 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52030 · 84210-52050 |
| 84230 | Door control light switch assembly (for engine room) | 84230-52100 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 · 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84307-74020 |
| 84340 | brake light switch assembly | 84340-19025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84470 | Warning release switch assembly | 84470-52030 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 · 88280-42010 |
| 84523A | No. 2 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84540D | Neutral start switch assembly | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-52230 · 84652-52280 |
| 84720J | Mode selection switch assembly | 84720-52100 |
| 84751 | Seat heater switch | 84751-52060 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-52430 · 84820-52450 · 84820-52460 |
| 84840G | Back door opener switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-52030 |
| 84930 | Door control switch assembly | 84930-12250 |
| 84988L | VSC off switch | 84988-52080 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85535B | No. 1 power outlet cover | 85535-52051 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52030 |
| 85912 | defogger relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-04010 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 |
| 85970A | Double lock door control relay assembly | 85970-52030 |
| 87299 | heater relay | 90987-04010 |
| 89221 | Multi-channel network body ECU | 89220-0D010 · 89220-0D030 · 89220-0D050 · 89220-52310 |
| 89465 | oxygen sensor | 89465-0H010 · 89465-52540 |
| 89465A | Oxygen sensor No. 2 | 89465-0D130 |
| 89467B | air fuel ratio sensor | 89467-52110 |
| 89615 | knock control sensor | 89615-0H010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52720 · 89650-52721 · 89650-52731 · 89650-52732 · 89650-52760 · 89650-52761 · 89650-52770 · 89650-52771 · 89650-52D80 · 89650-52D90 |
| 89681A | Power management control ECU | 89690-52050 |
| G1167A | Relay (for oil pump motor) | 90987-02027 |
