Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 14 images and 29 PNC and OE references.
PNC and OE references

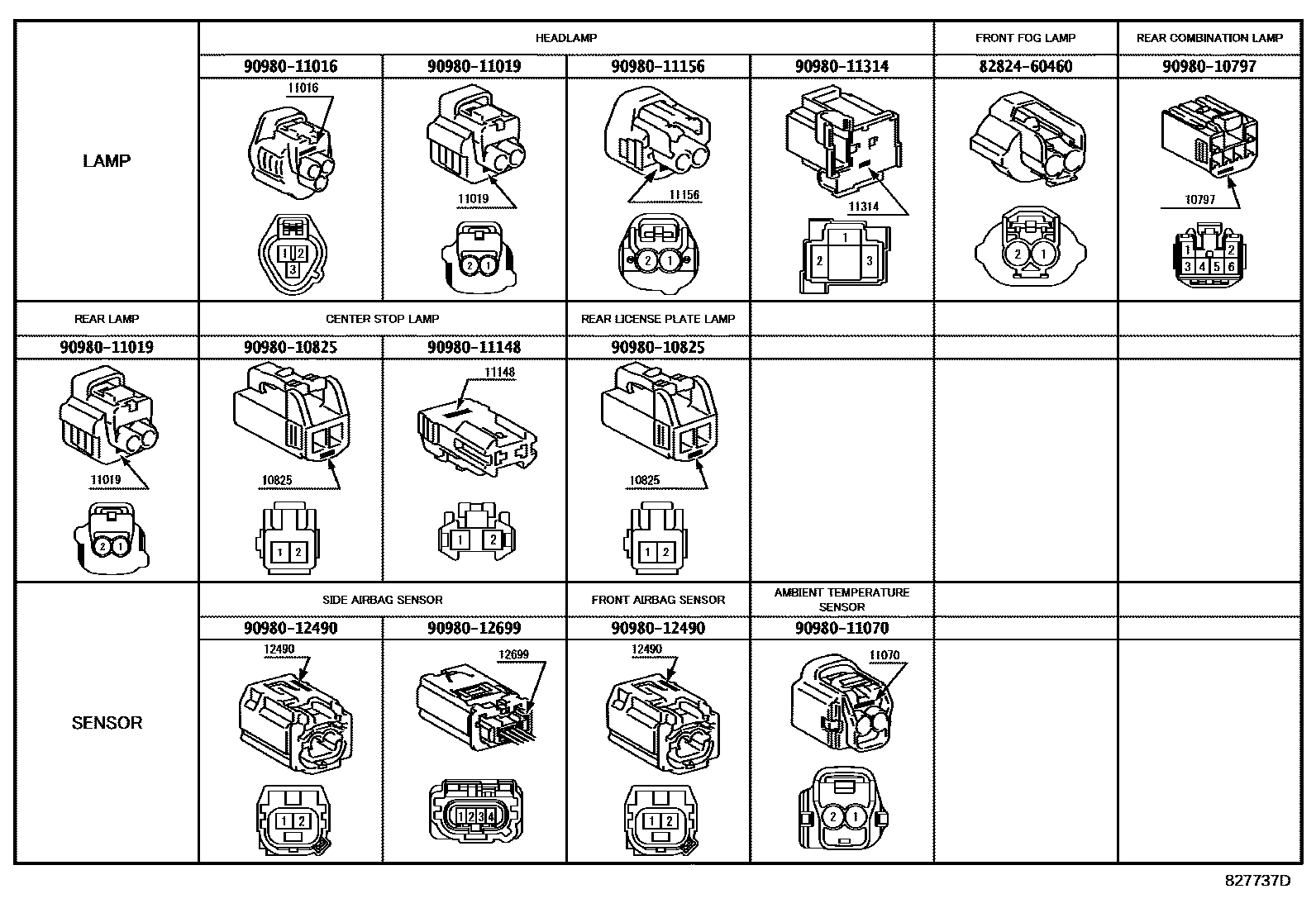

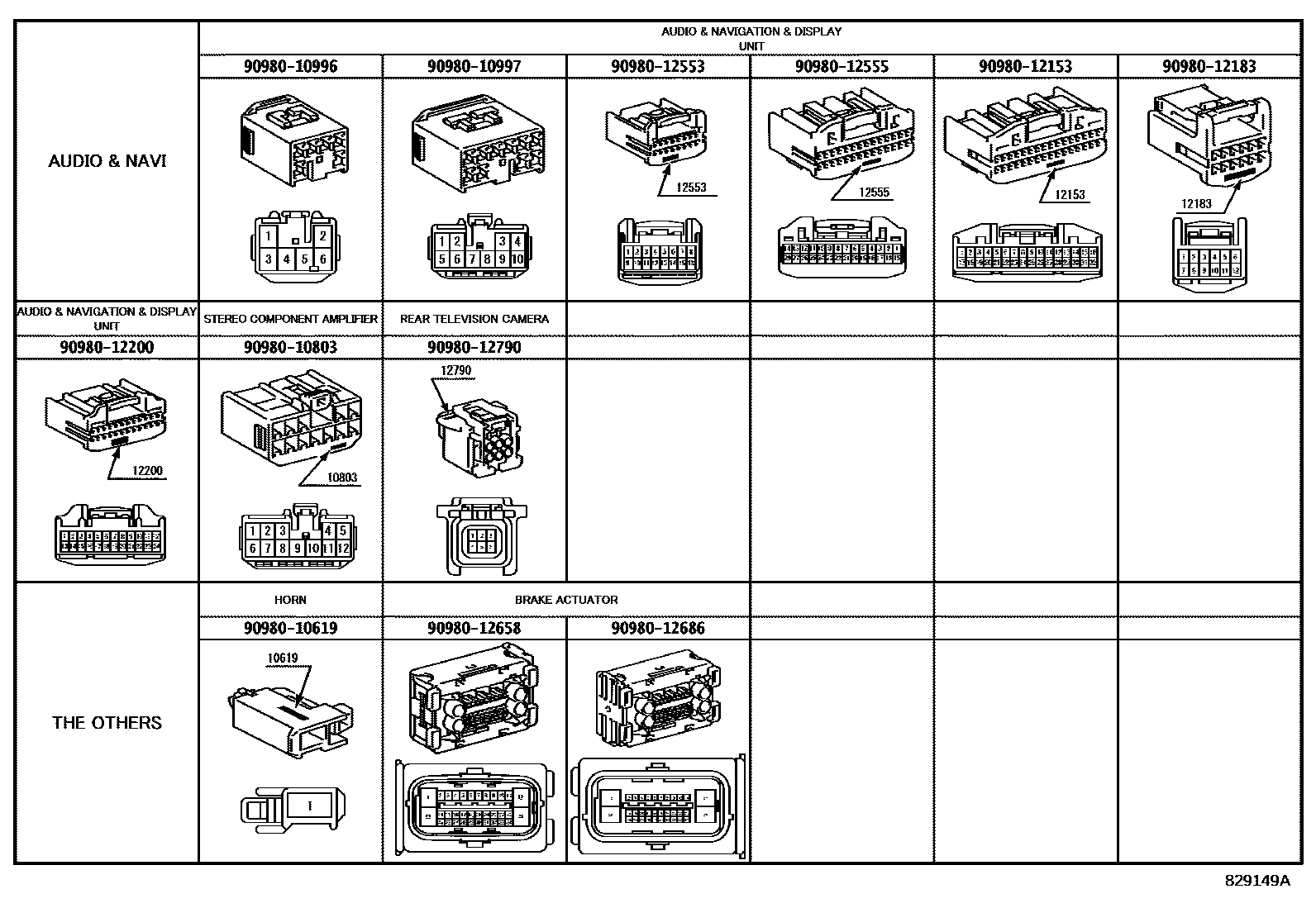

| PNC | Part name | OE numbers |
|---|---|---|

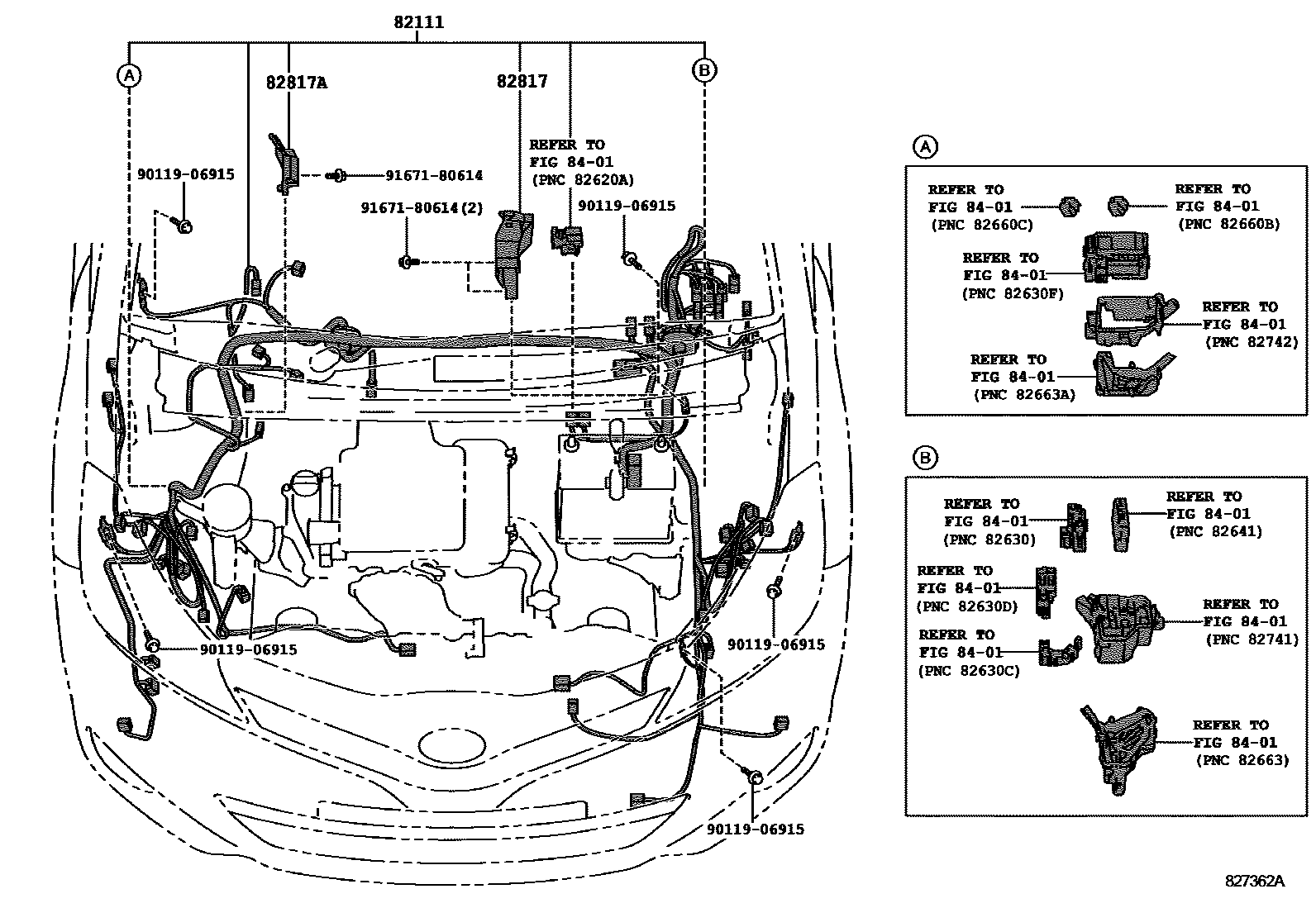

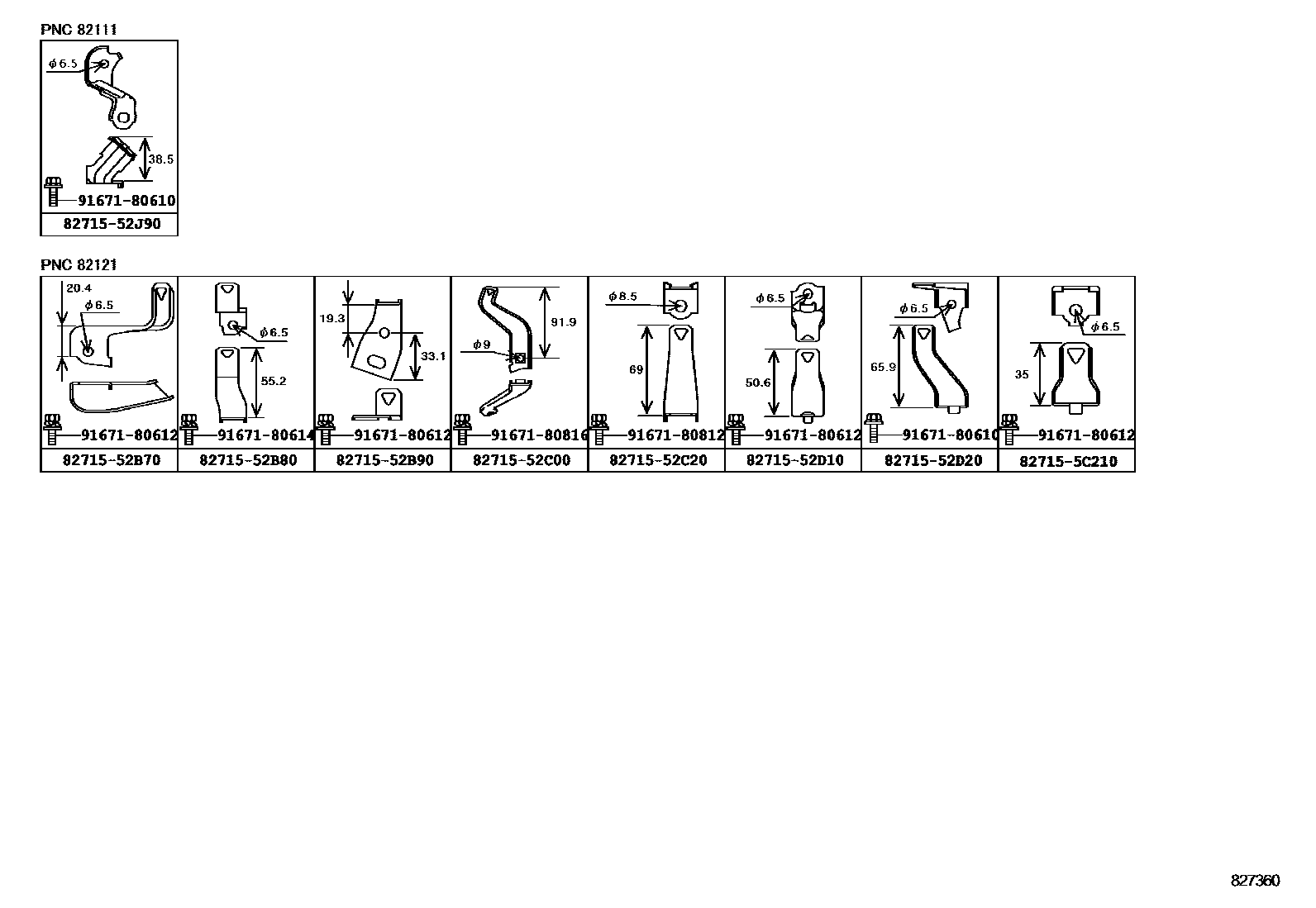

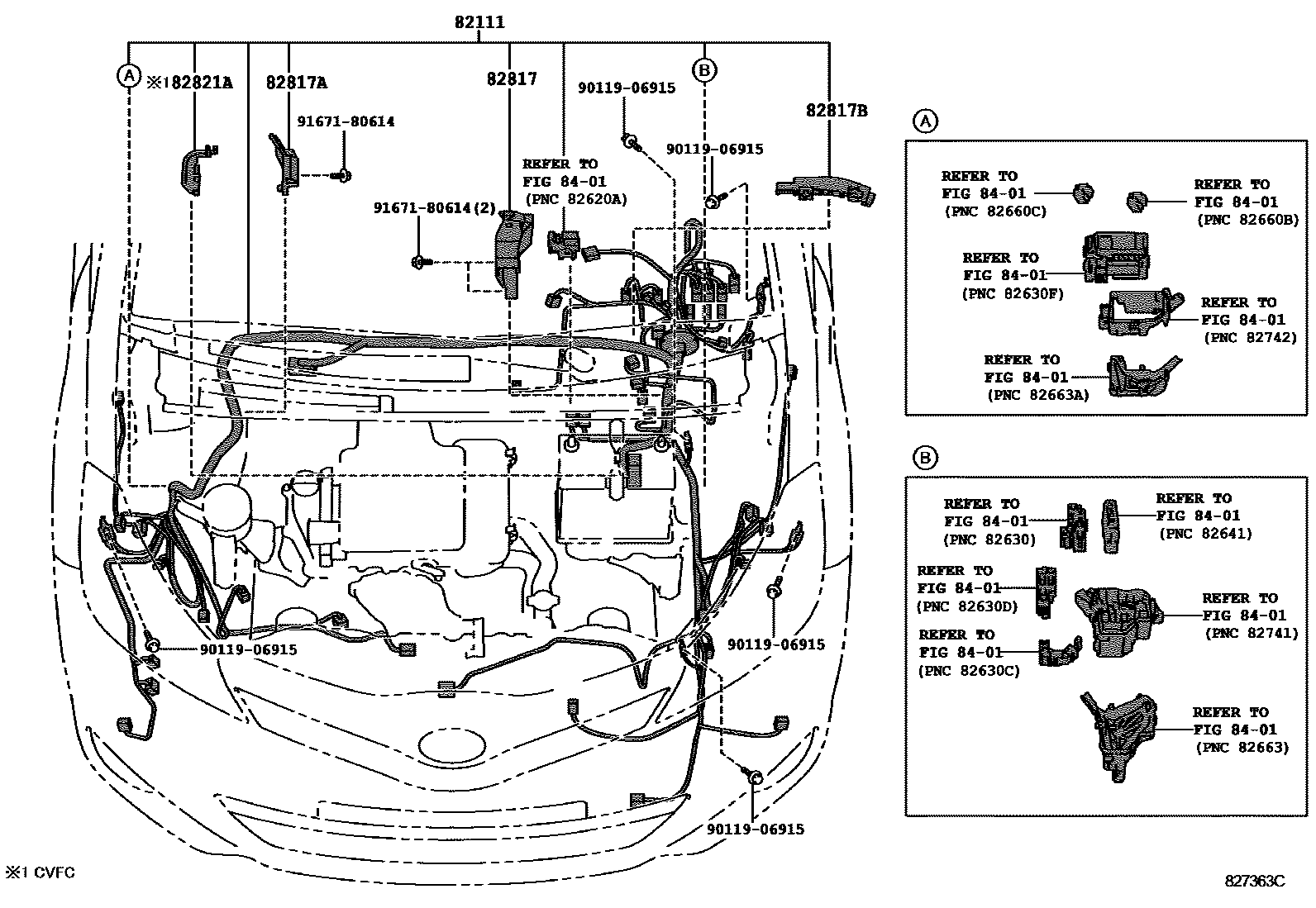

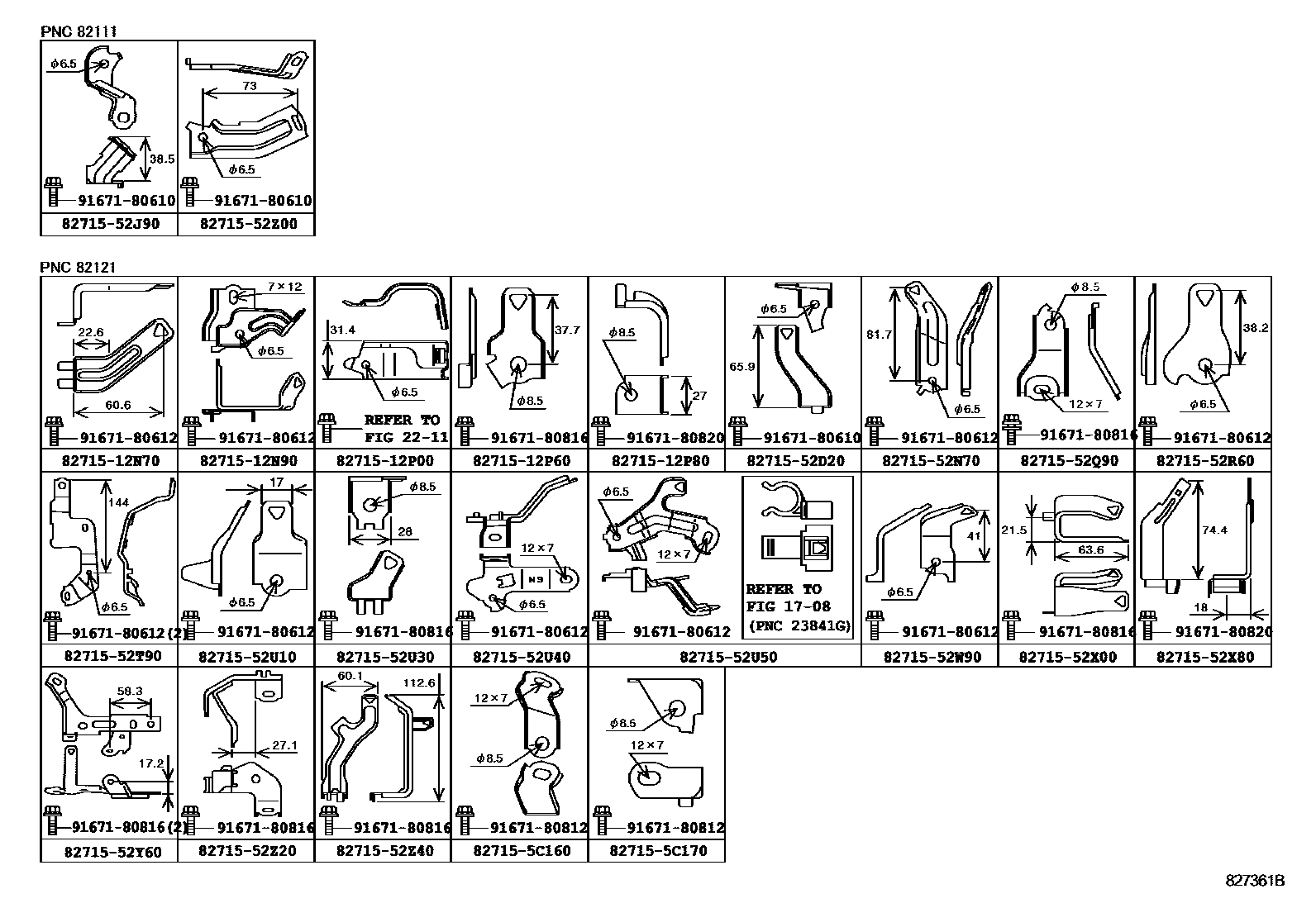

| 82111 | Engine room main wiring harness | 82111-5CF90 · 82111-5CG10 · 82111-5CG30 · 82111-5CG40 · 82111-5CG50 · 82111-5CG70 · 82111-5CG90 · 82111-5CJ00 · 82111-5CJ20 · 82111-5CJ30 |

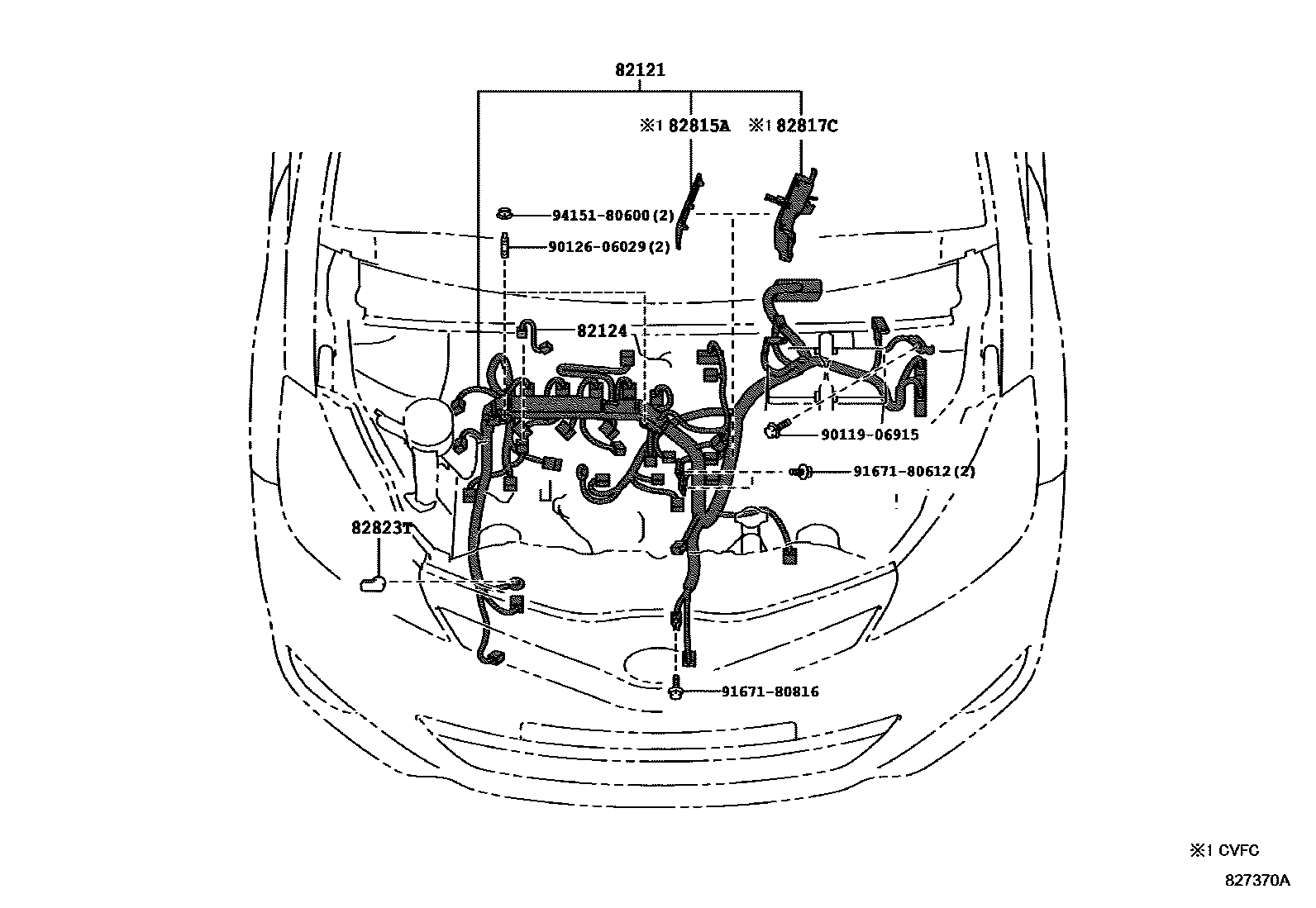

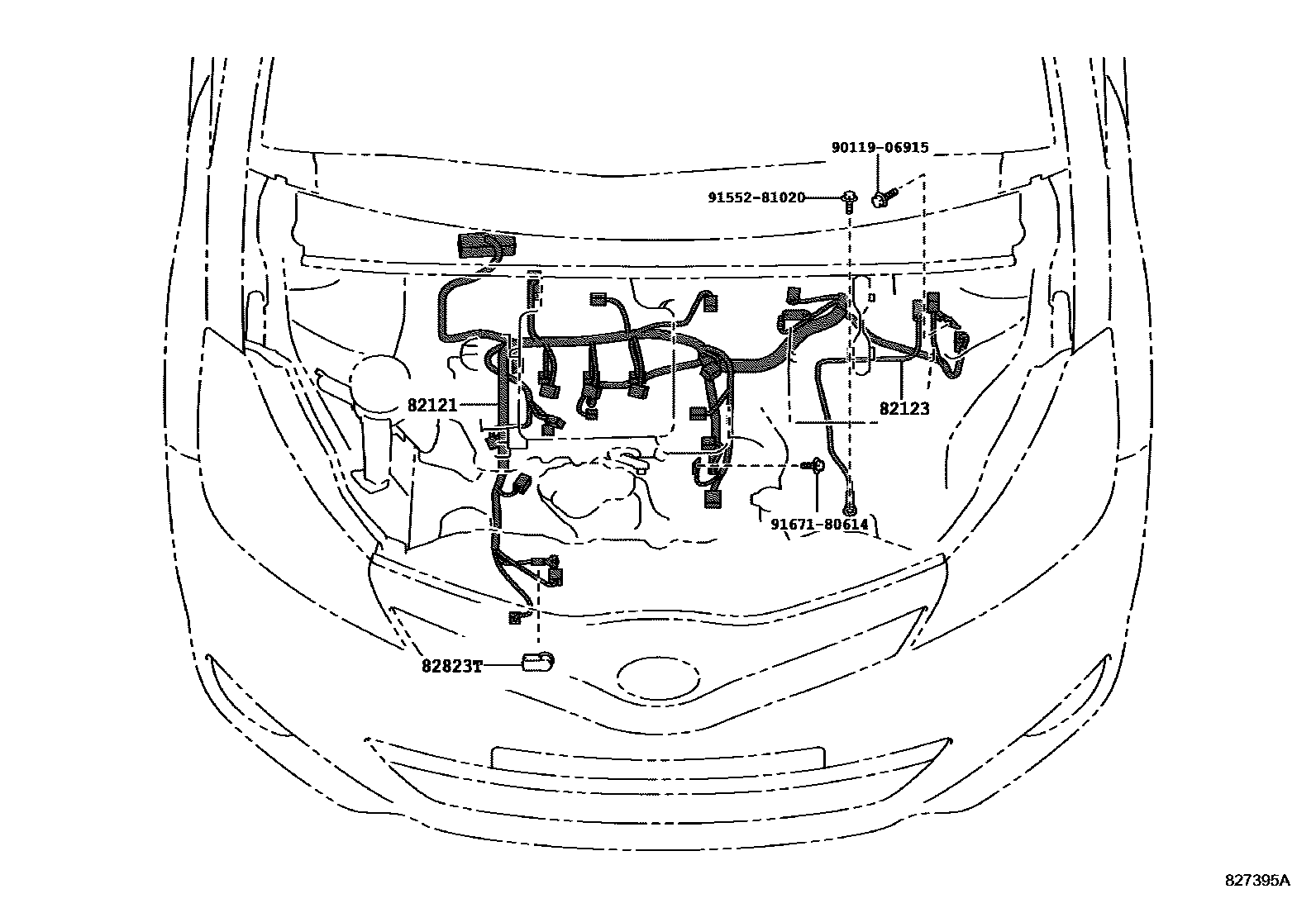

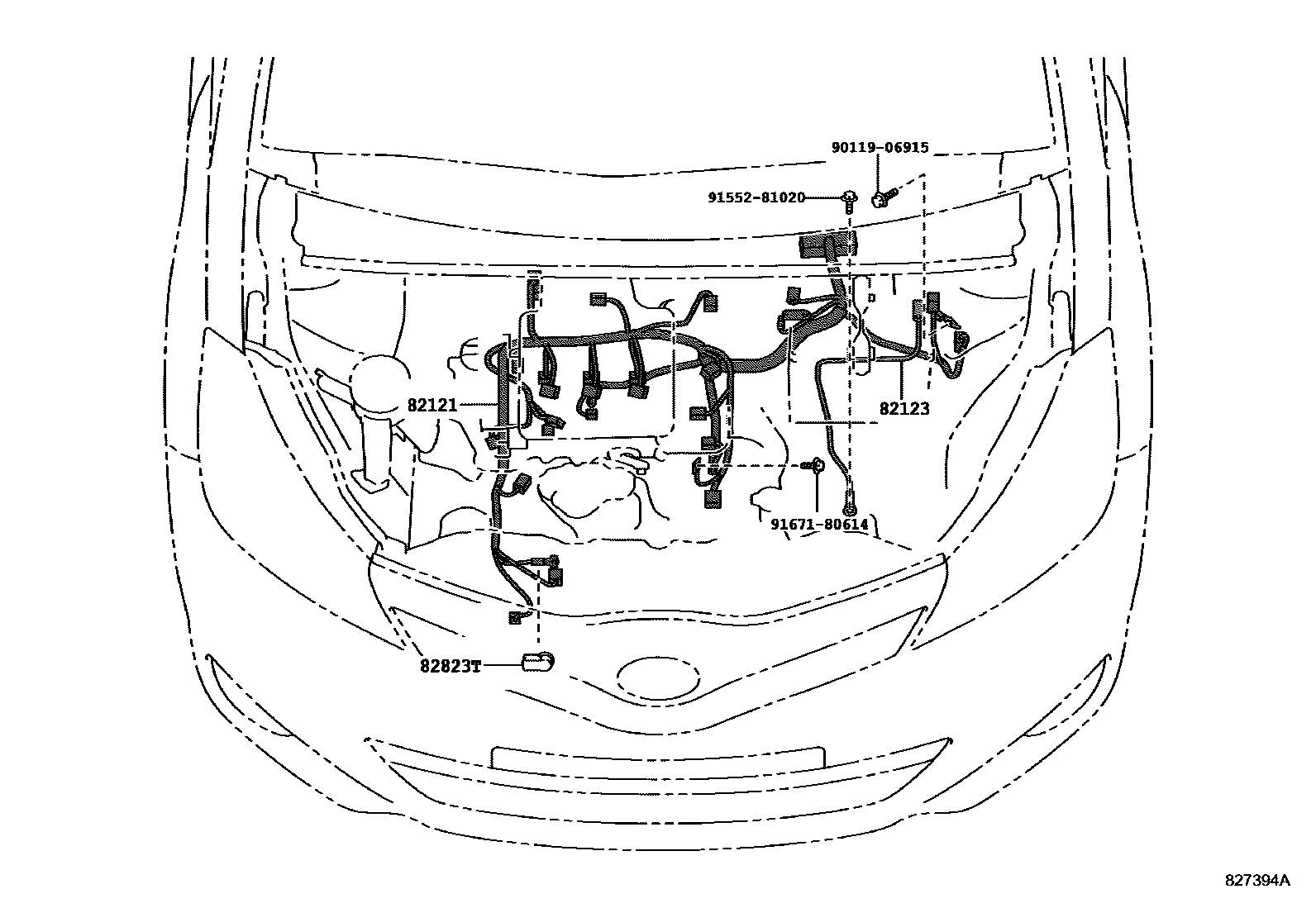

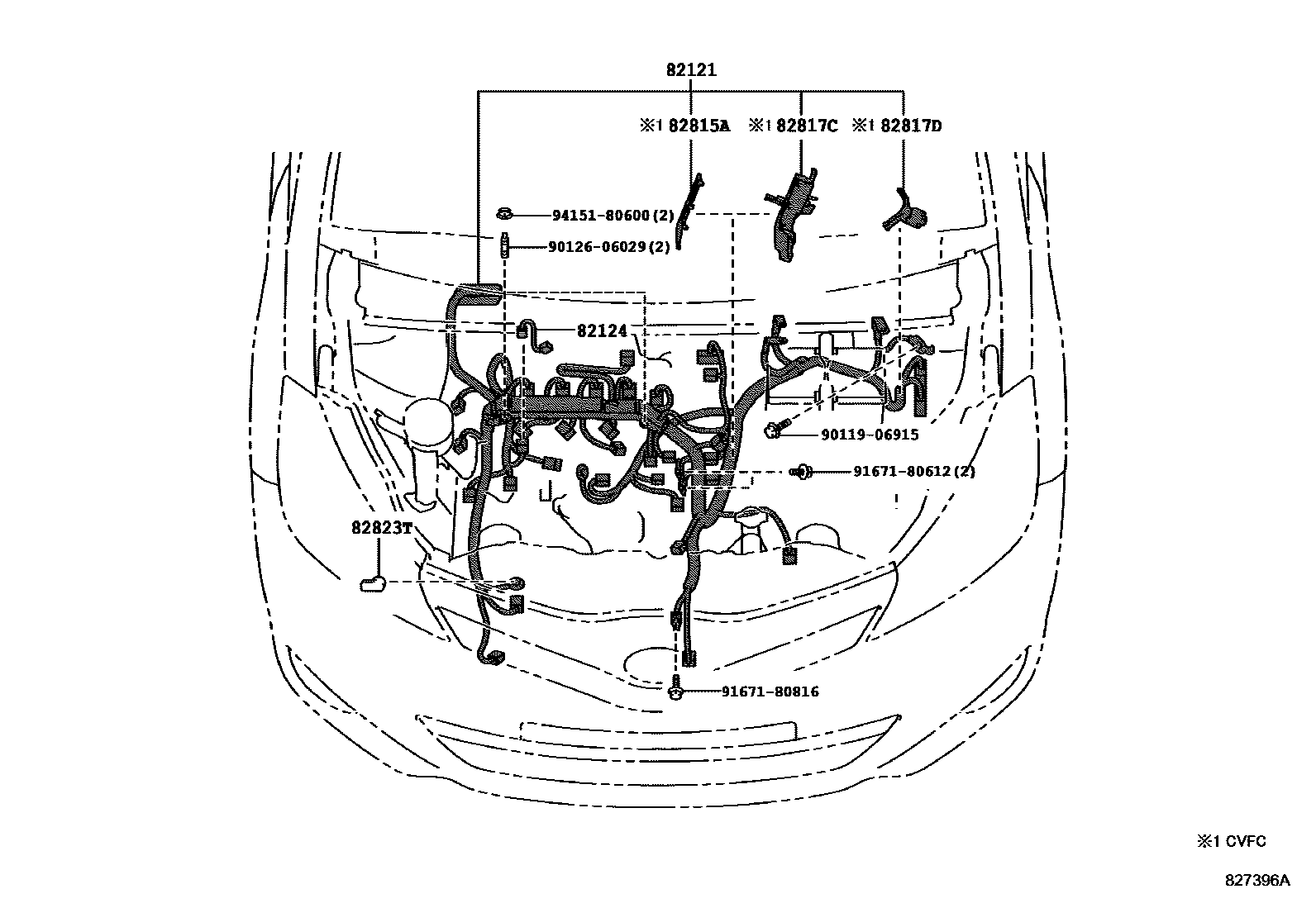

| 82121 | Engine wiring harness | 82121-52K40 · 82121-52K50 · 82121-52K60 · 82121-52L10 · 82121-52L20 · 82121-52M10 · 82121-52M40 · 82121-52M90 · 82121-52N20 · 82121-52R30 |
| 82123 | Engine No. 3 wiring harness | 82123-52350 |
| 82124 | Engine No. 4 wiring harness | 82124-12150 |

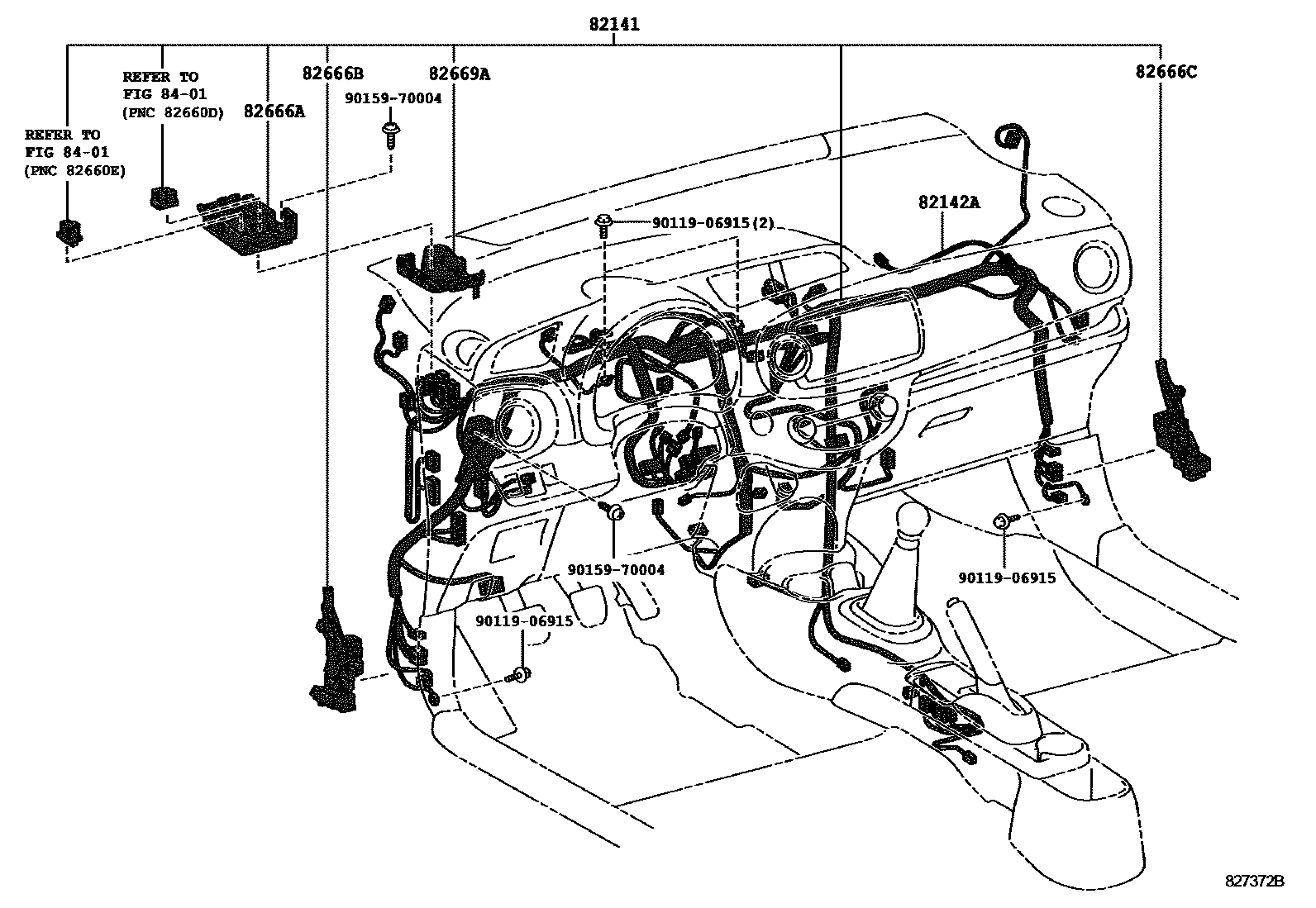

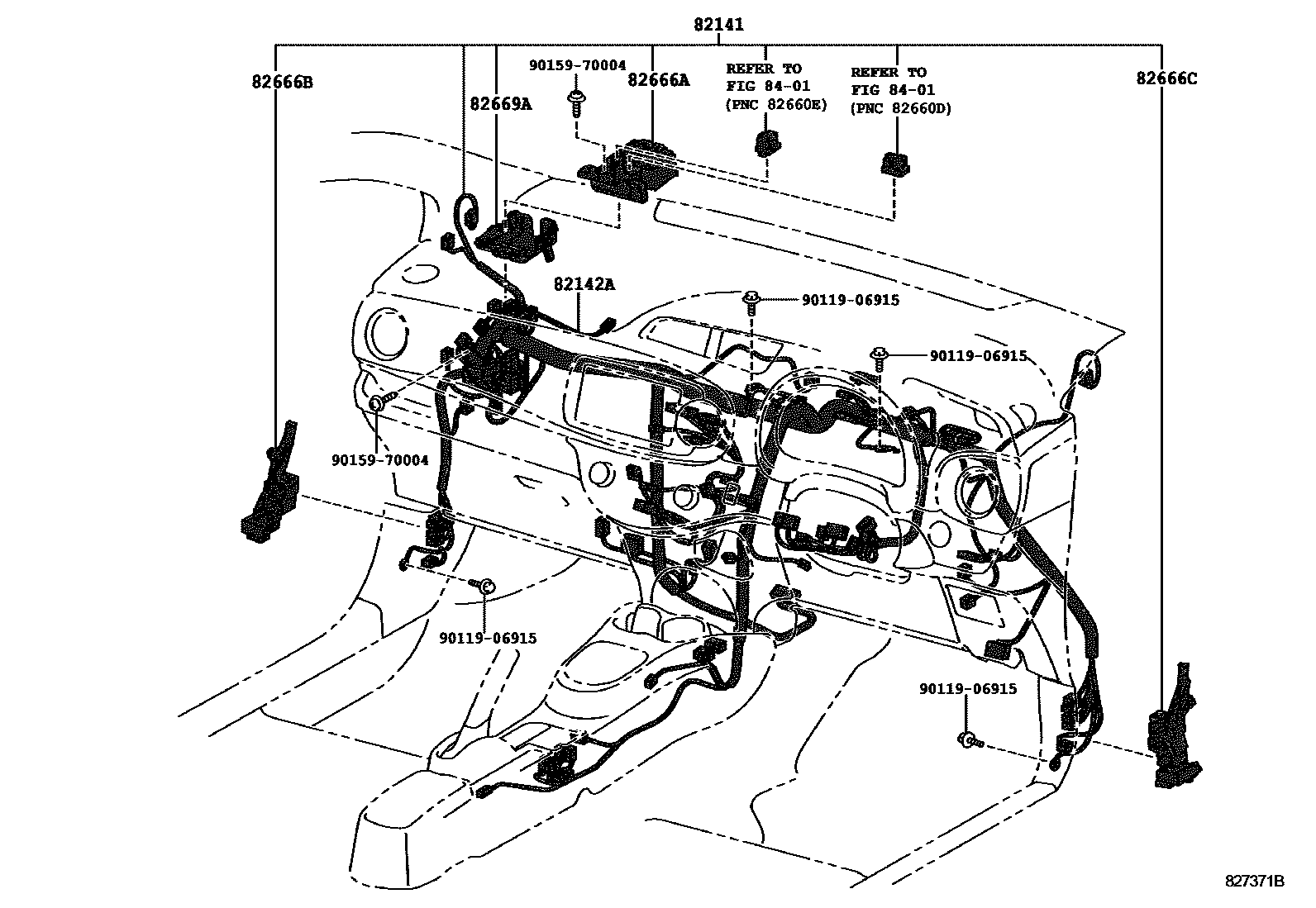

| 82141 | Dashboard wiring harness | 82141-5DS20 · 82141-5DS30 · 82141-5DS40 · 82141-5DS41 · 82141-5DS50 · 82141-5DS51 · 82141-5DS60 · 82141-5DS70 · 82141-5DS80 · 82141-5DS81 · 82141-5DS90 · 82141-5DS91 · 82141-5DT00 · 82141-5DT10 · 82141-5DT20 · 82141-5DT22 · 82141-5DT30 · 82141-5DT32 · 82141-5DT40 · 82141-5DT50 · 82141-5DT60 · 82141-5DT62 · 82141-5DT70 · 82141-5DT72 · 82145-52L20 · 82145-52L21 · 82145-52L30 · 82145-52L40 · 82145-52L42 · 82145-52L43 · 82145-52L50 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-52090 |

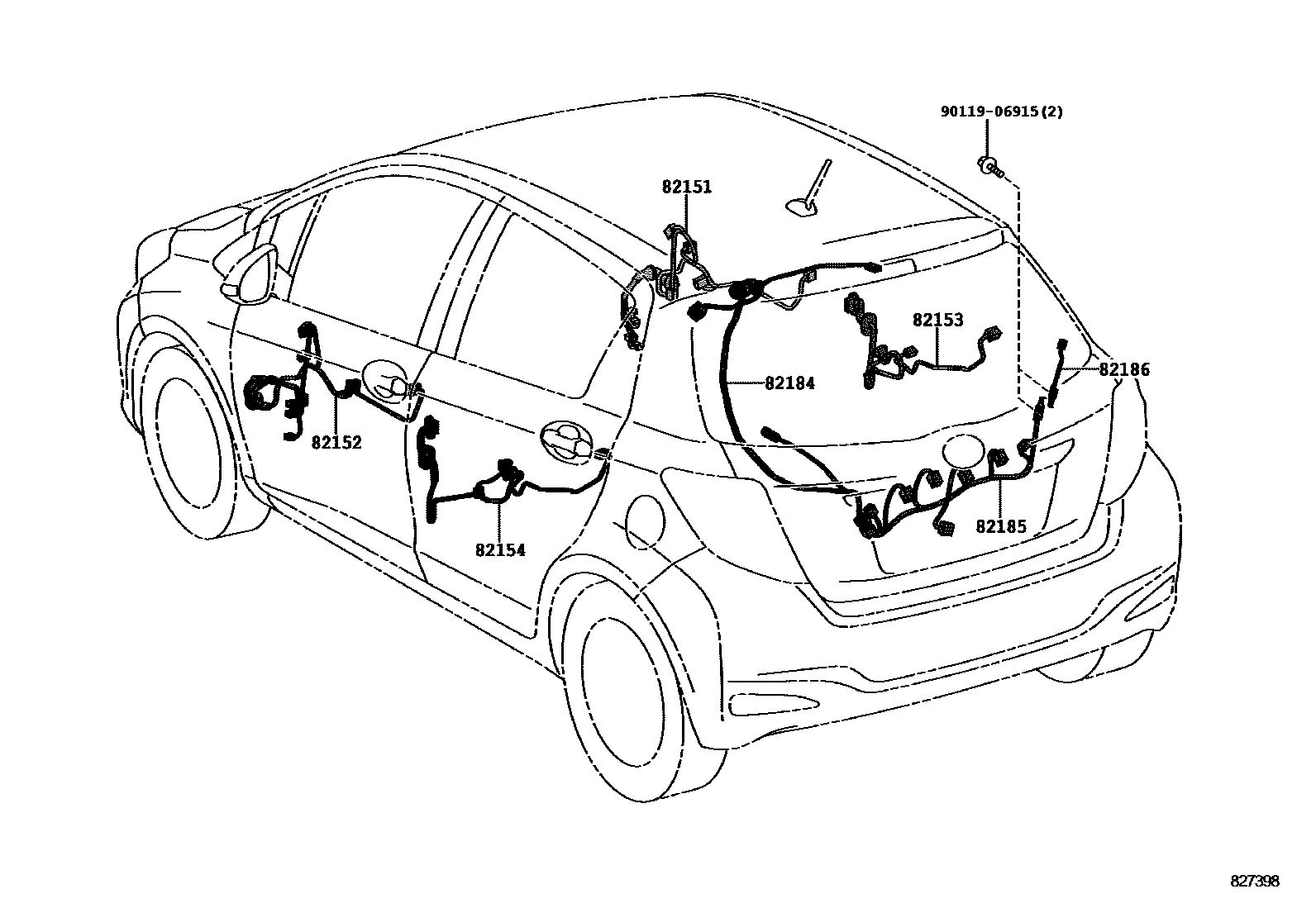

| 82151 | Right front door wiring harness | 82151-52Q50 · 82151-52Q90 · 82151-52S31 · 82151-52S50 · 82151-52S60 · 82151-52S70 · 82151-52S80 |
| 82152 | Left front door wiring harness | 82152-52M70 · 82152-52N10 · 82152-52P40 · 82152-52P61 · 82152-52P80 · 82152-52P90 · 82152-52Q00 |
| 82153 | Rear door wiring harness No. 1 | 82153-52680 · 82153-52690 · 82153-52700 |
| 82154 | Rear door wiring harness No. 2 | 82154-52360 · 82154-52370 · 82154-52380 |

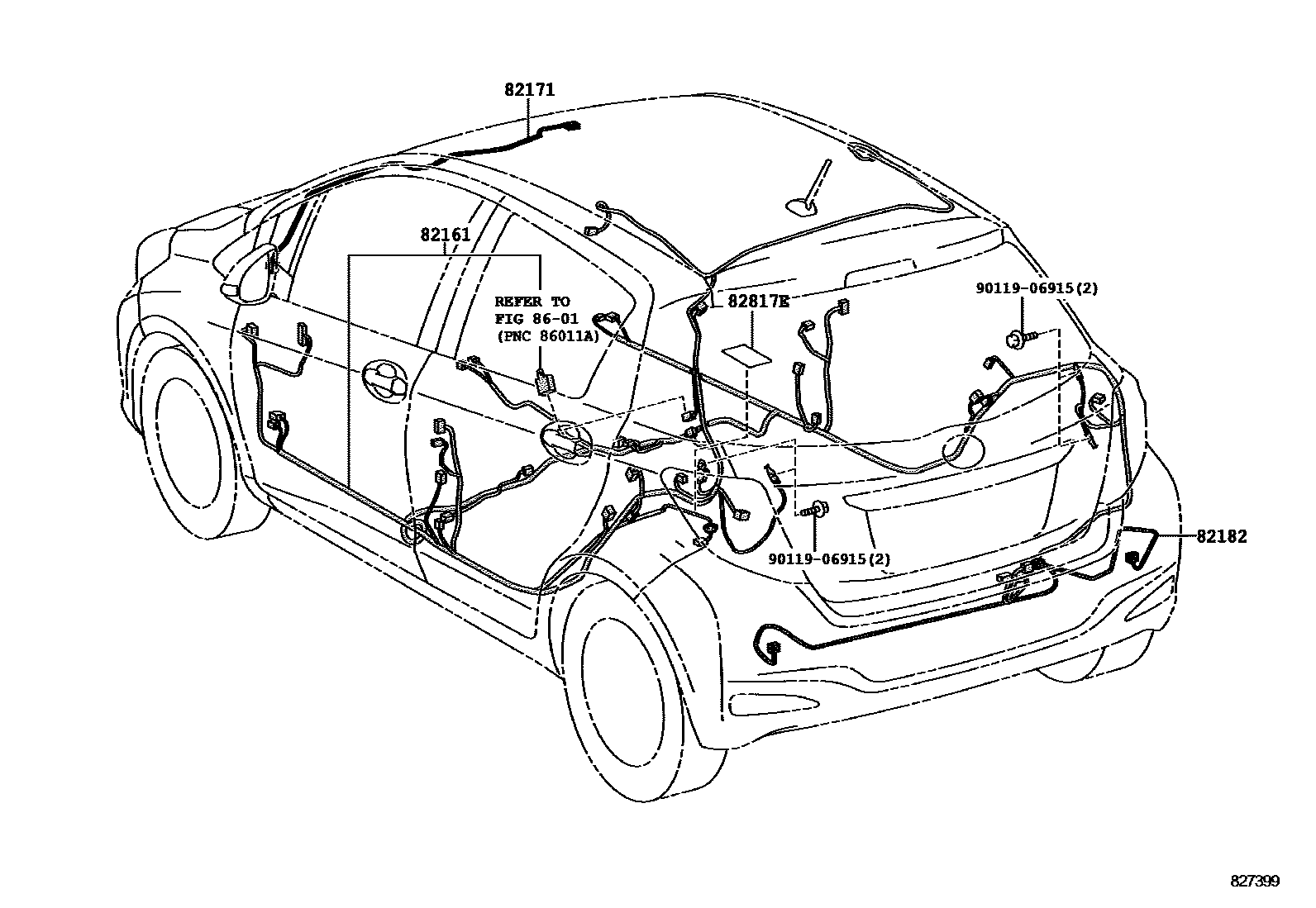

| 82161 | floor wiring harness | 82161-5CE40 · 82161-5CE50 · 82161-5CF20 · 82161-5CF21 · 82161-5CF30 |
| 82171 | Roof No. 1 wiring harness | 82171-52541 |
| 82182 | Luggage No. 2 wiring harness | 82182-52250 · 82182-52270 |
| 82184 | Rear door No. 1 wiring harness | 82184-52560 |
| 82185 | Rear door wiring harness No. 2 | 82185-52700 · 82185-52710 |
| 82186 | Rear window wiring harness No. 1 | 82186-52180 |
| 82666A | Connector holder No. 2 | 82666-52150 · 82666-52180 |
| 82666B | No. 3 connector holder | 82666-52160 |
| 82666C | No. 4 connector holder | 82666-52170 |
| 82669A | Connector box lower cover | 82669-52010 · 82669-52020 |
| 82815A | Wiring harness protector cover | 82815-52160 · 82815-52170 |
| 82817 | No. 1 wire harness protection device | 82817-52A20 |
| 82817A | No. 2 wire harness protection device | 82817-52C00 |
| 82817B | No. 3 wire harness protection device | 82817-52B70 |
| 82817C | No. 4 wire harness protection device | 82817-52870 · 82817-52880 |
| 82817D | No. 5 wire harness protection device | 82817-52860 |
| 82817E | No. 6 wire harness protection device | 82817-52710 |
| 82821A | Connector cover | 82821-52240 |
| 82823T | BOUCHON, BORNE ALTERNATEUR | 82823-22050 |
