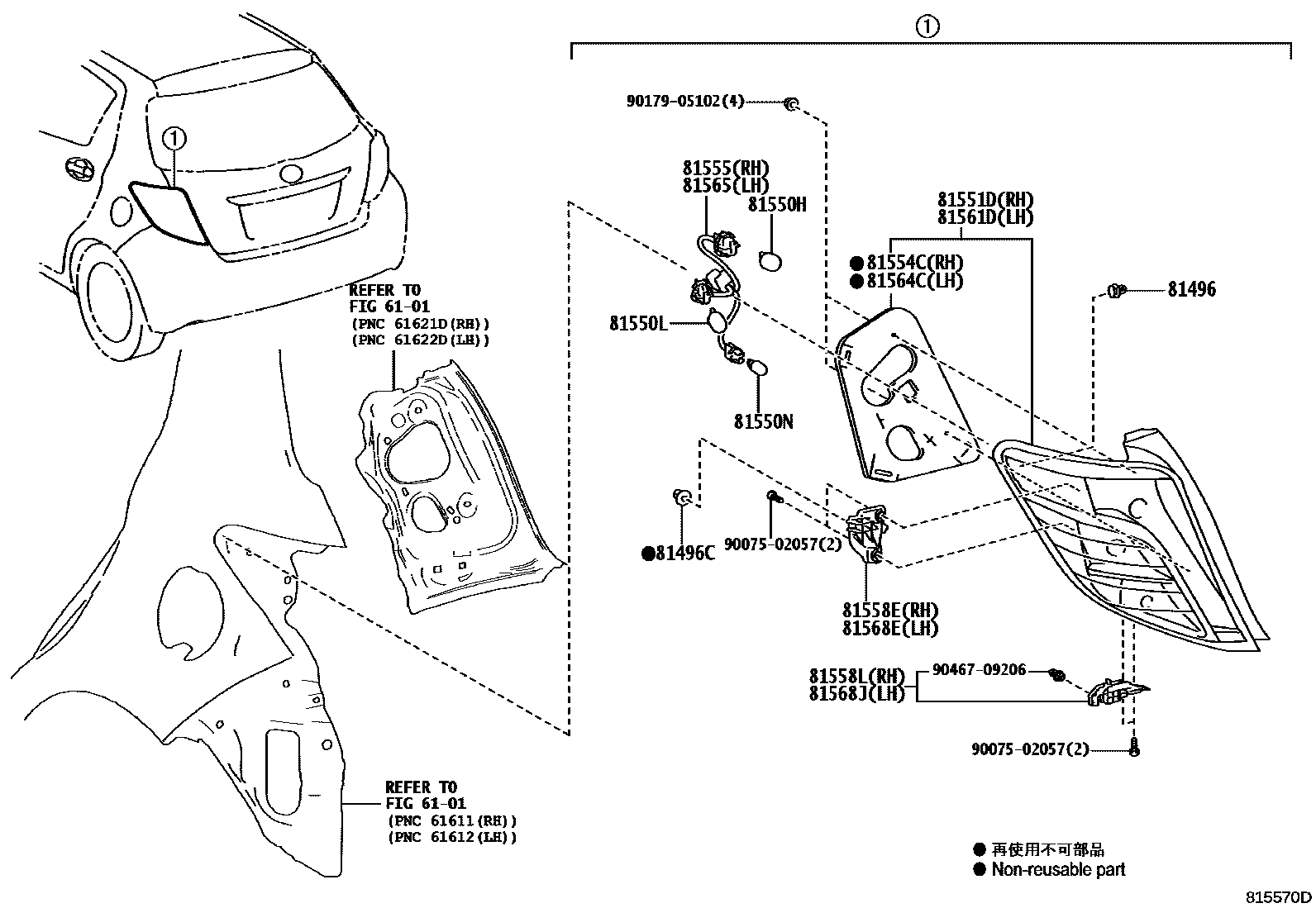

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-52810 |
| 81554C | Right rear combination lamp lamp body seal | 81554-52810 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52810 |
| 81558E | Right rear combination lamp cover | 81558-52801 |
| 81558L | Right rear combination lamp protective cover | 81558-52810 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-52750 |
| 81564C | Left rear combination lamp body seal | 81564-52750 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52810 |
| 81568E | Left rear combination lamp cover | 81568-52741 |
| 81568J | Left rear combination lamp protective cover | 81568-52750 |
