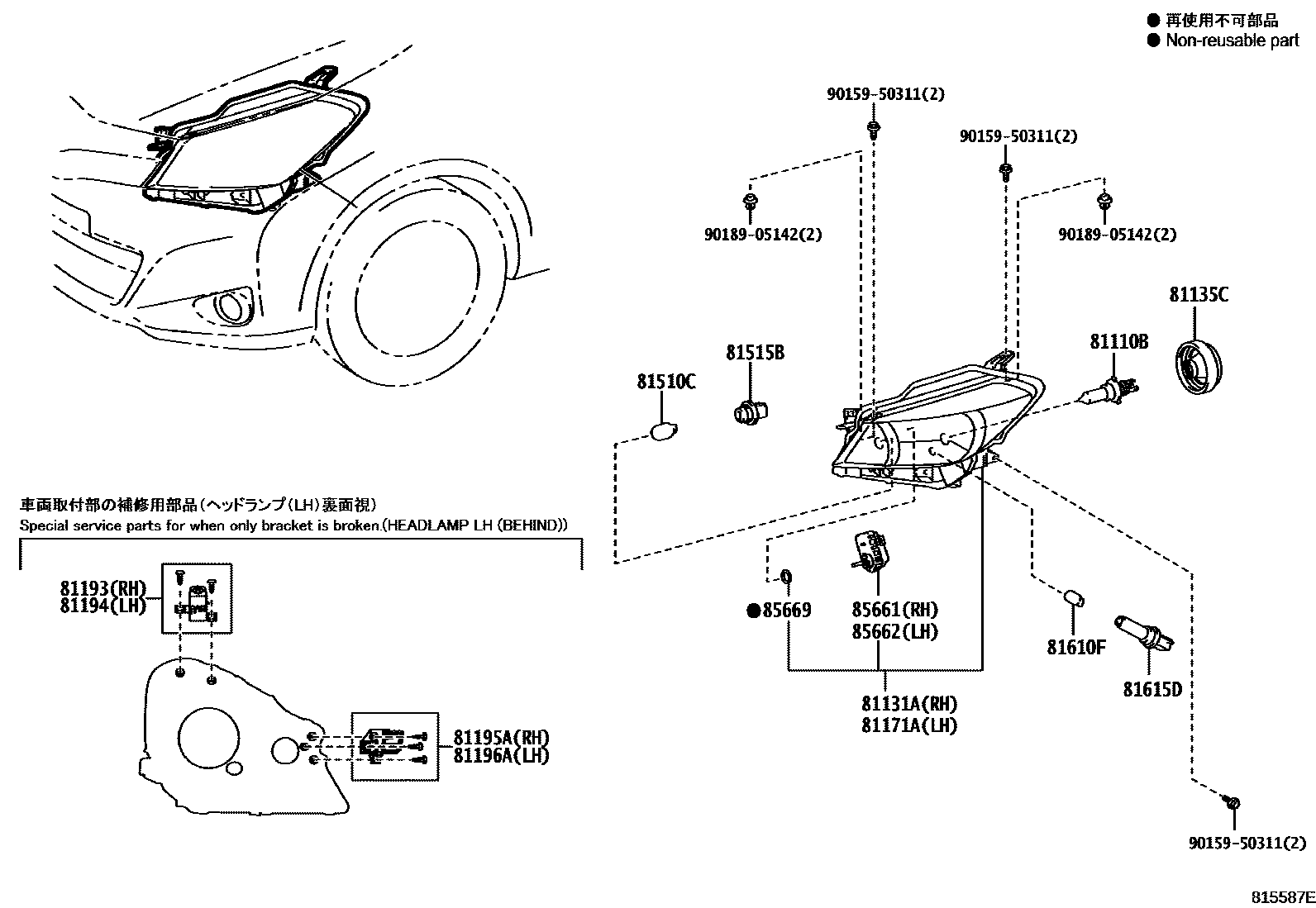

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81131A | Right headlight assembly assembly | 81130-52D20 · 81130-52D60 |
| 81135C | No. 1 headlight rear cover | 90075-65002 |
| 81171A | Left headlight assembly assembly | 81170-52D20 · 81170-52D60 |
| 81193 | Right headlight upper protective ring | 81193-52200 |
| 81194 | Left headlight upper protective ring | 81194-52200 |
| 81195A | Right headlight lower protection ring | 81195-52160 |
| 81196A | Left headlight lower protection ring | 81196-52160 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
