Toyota YARIS 挡泥板和扰流板 — Figure 7601

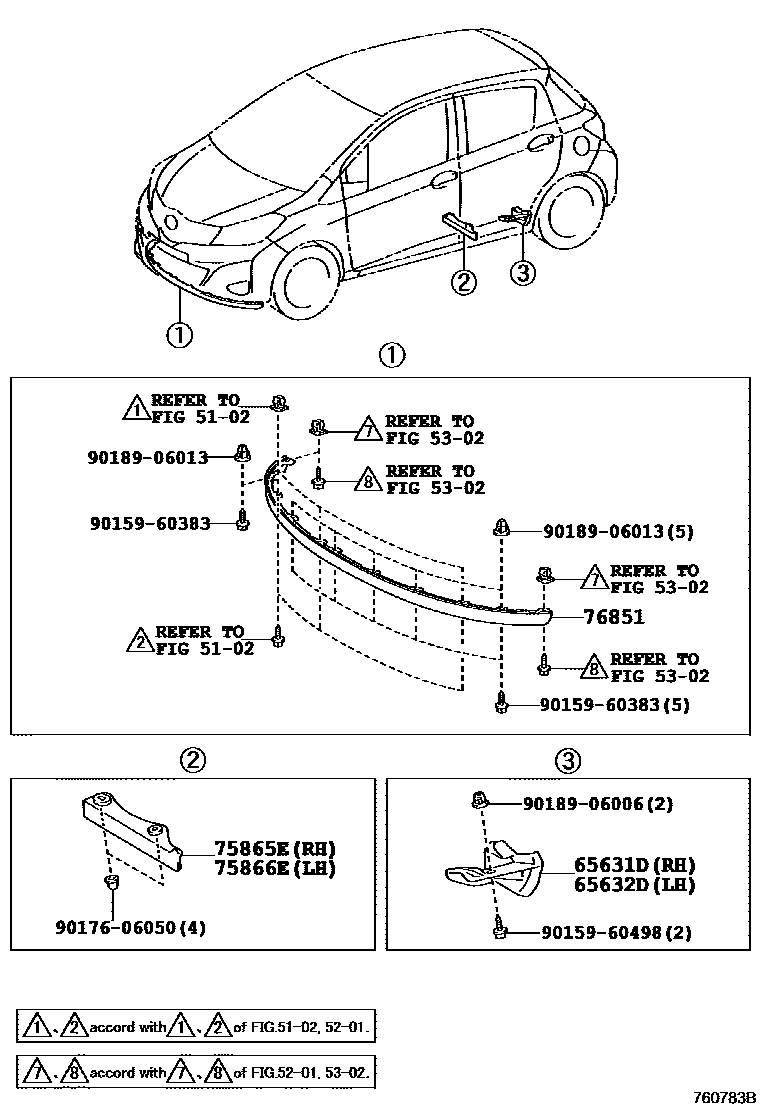

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52120 |
| 65632D | Left rear wheel house front panel | 65632-52120 |
| 75865E | Right side door sill panel protective strip protective cover | 75865-52031 |
| 75866E | Left side door sill panel protective strip protective cover | 75866-52031 |
| 76851 | front spoiler cover | 76851-52180 |
