Toyota YARIS 后防护条 — Figure 7504

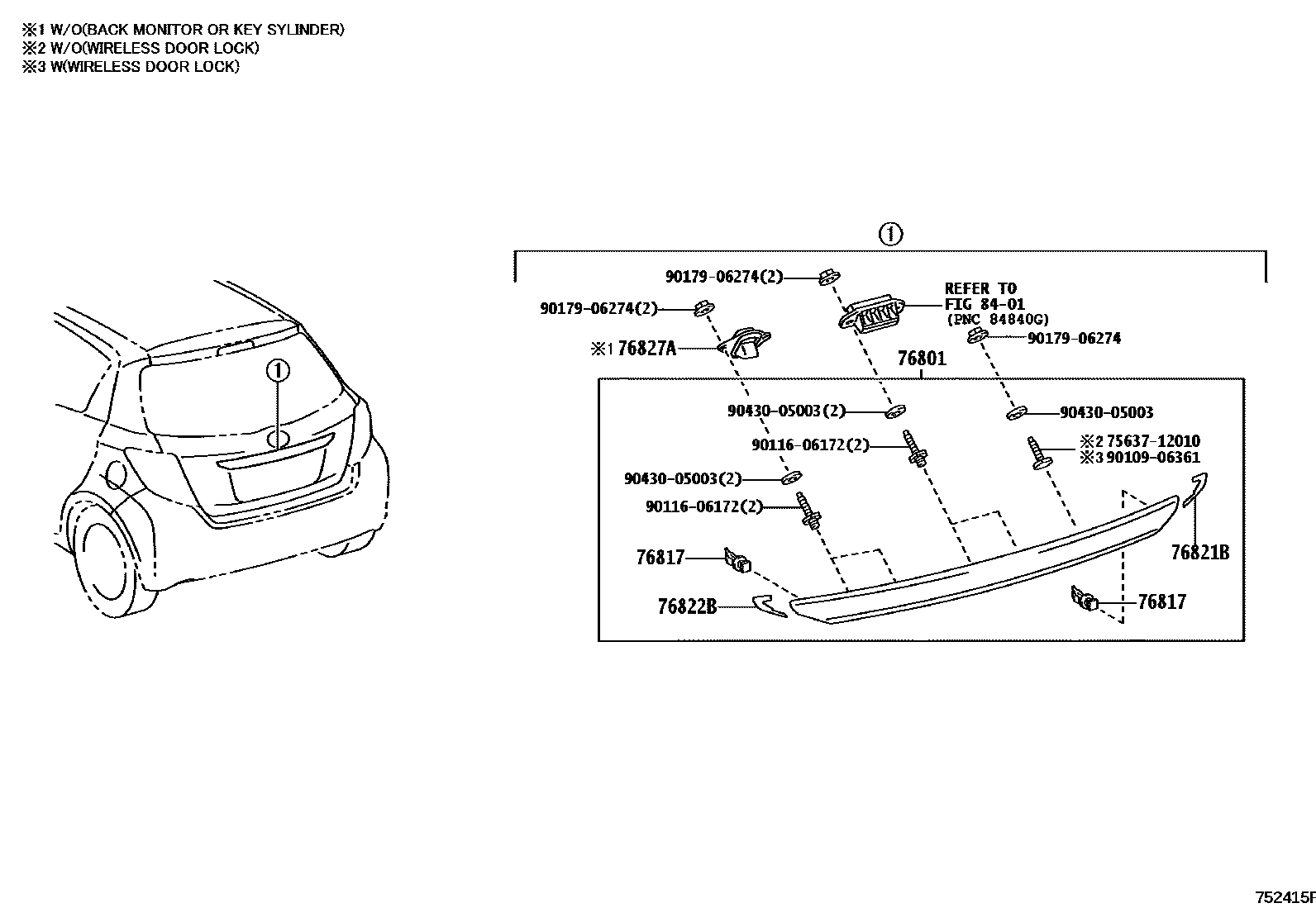

Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-52230 · 76801-52350 |
| 76817 | Rear door exterior decorative strip clip | 76817-50010 |
| 76821B | Rear door right side decorative strip protective cover | 76821-52140 |
| 76822B | Rear door left side decorative strip protective cover | 76822-52070 |
| 76827A | No. 2 rear door trim strip fixings | 76827-52020 |
