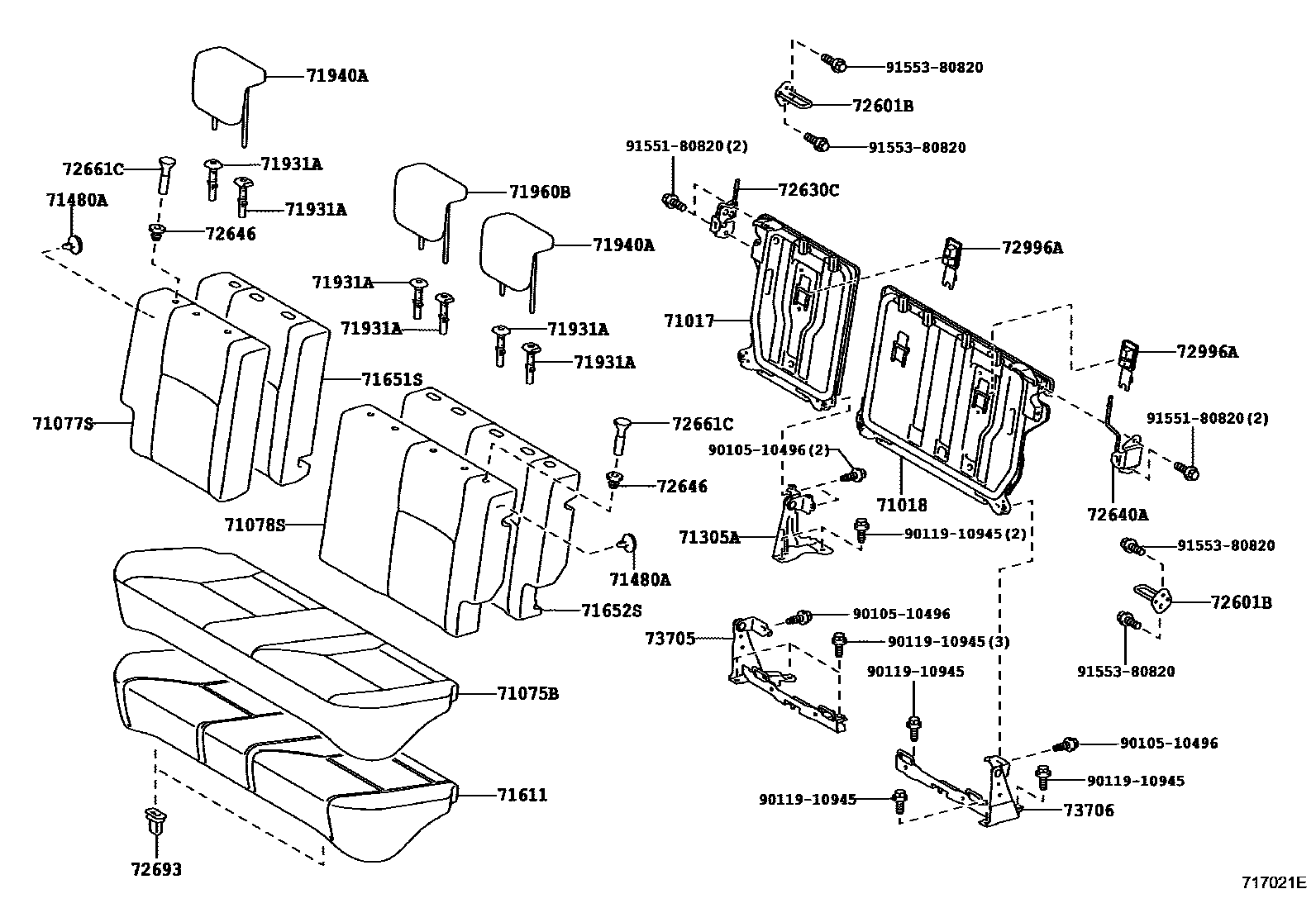

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-52620 · 71017-52621 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52500 · 71018-52510 · 71018-52511 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-52100 |
| 71480A | Clip (for rear seat back) | 90467-09050 |
| 71611 | Rear seat cushion cushion | 71503-52450 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-52660 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-52560 |
| 72601B | Rear seat back lock sub-assembly | 72601-52220 |
| 72630C | Rear right seat back lock assembly | 72630-52140 · 72630-52141 · 72630-52170 |
| 72640A | Rear left seat back lock assembly | 72640-52130 · 72640-52131 · 72640-52170 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-52180 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-52020 |
