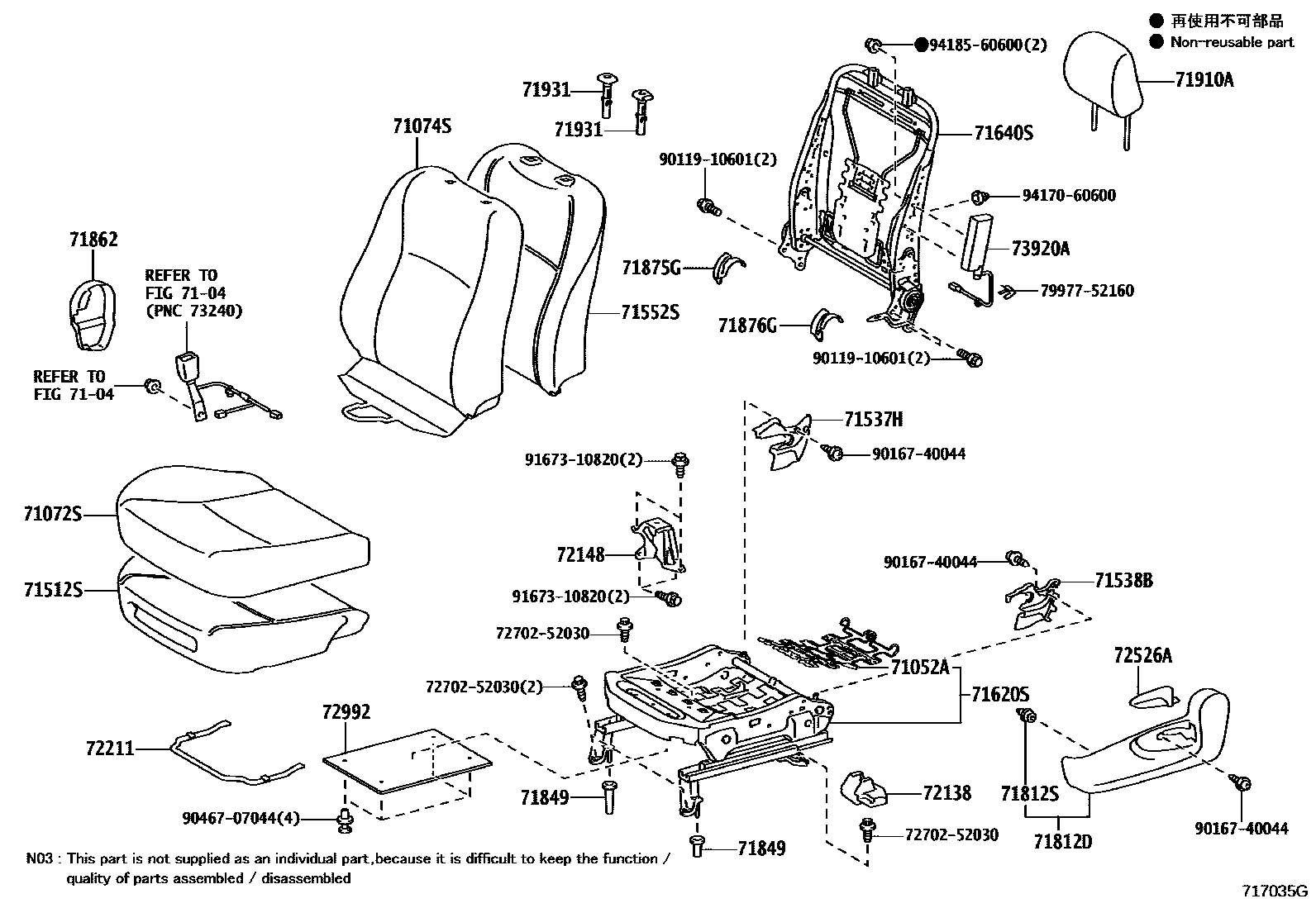

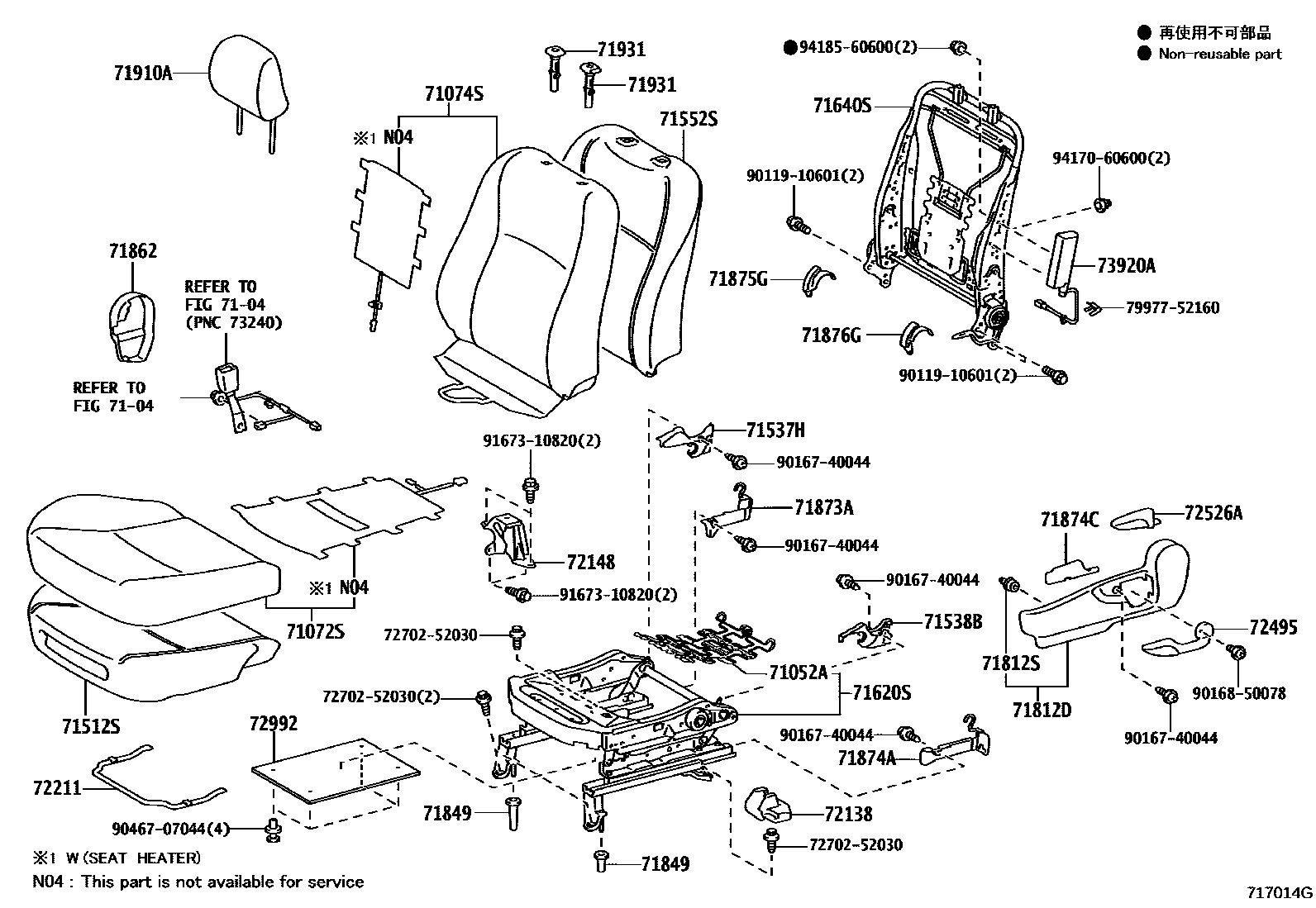

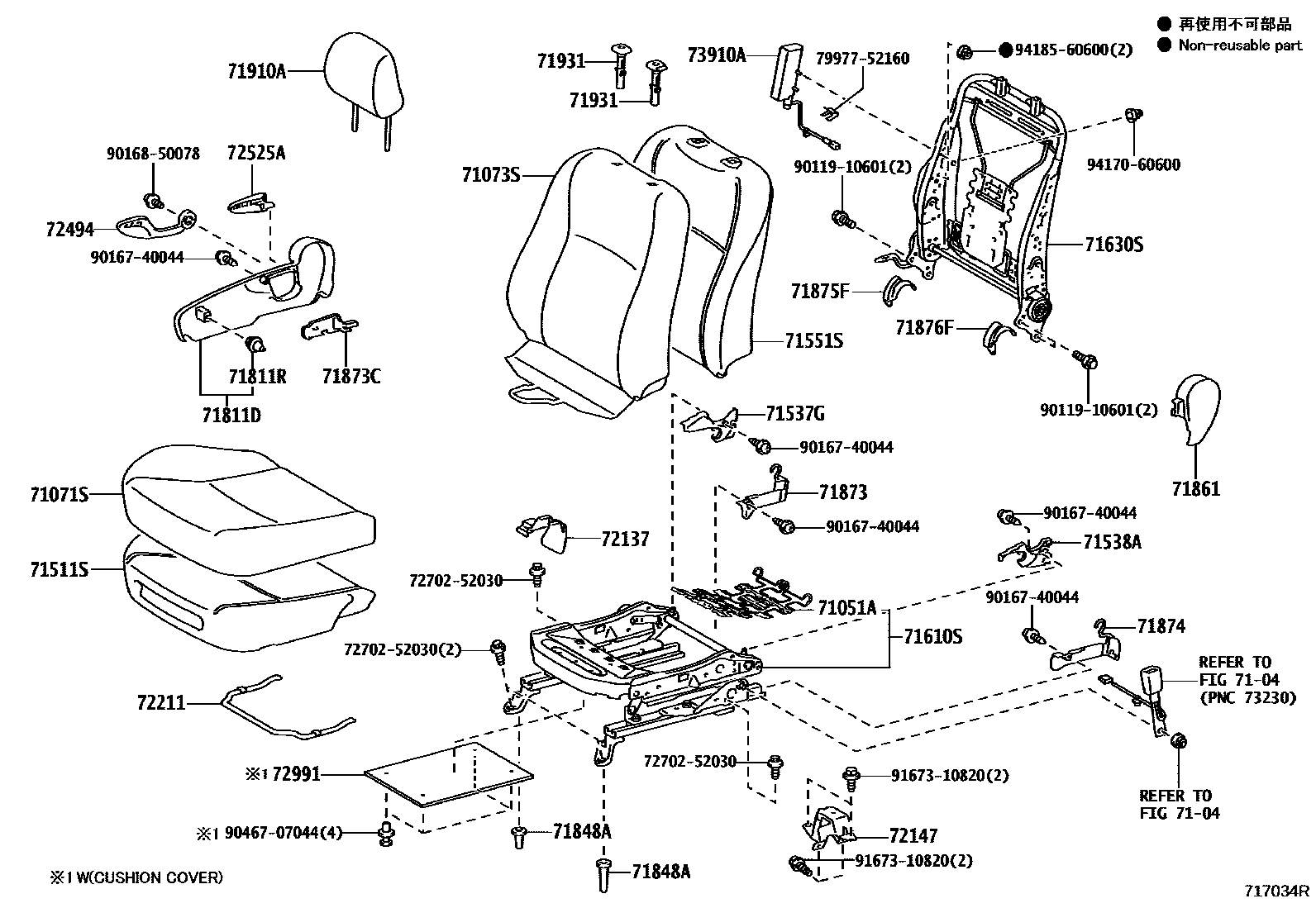

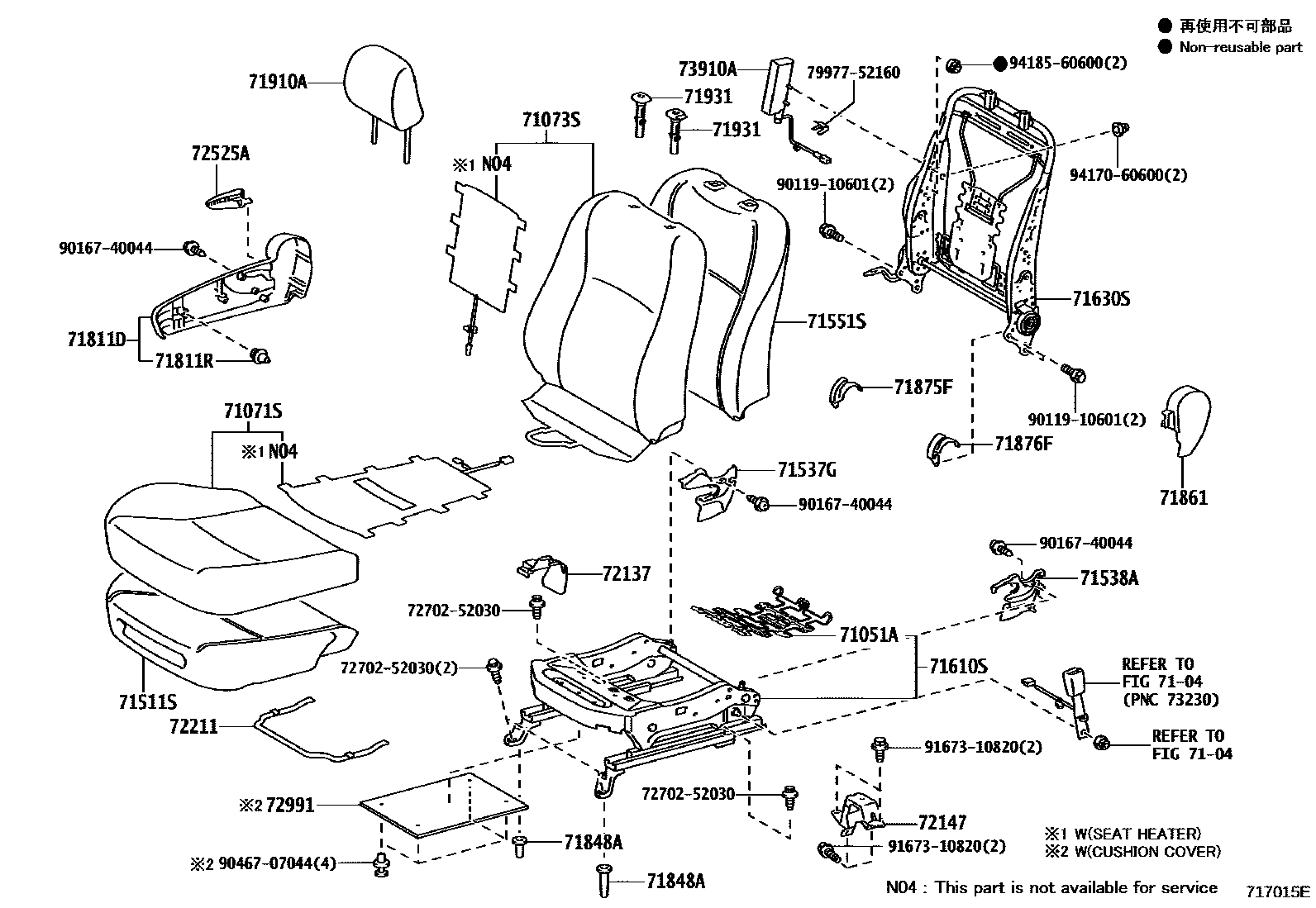

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-52030 · 71511-52580 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-52070 · 71512-52420 |
| 71551S | Front right seat back cushion (for split seats) | 71551-52880 |
| 71552S | Front left seat back cushion (for split seats) | 71552-52760 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-52040 · 71610-52050 · 71610-52051 · 71610-52260 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-52040 · 71620-52041 · 71620-52070 · 71620-52270 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52380 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-52160 |
| 71811R | Front right seat cushion guard clip | 71769-47020 |
| 71812S | Front left seat cushion guard clip | 71769-47020 |
| 71848A | Right seat adjuster cover | 71848-52040 · 71848-52050 |
| 71849 | left seat adjuster cover | 71848-52040 · 71848-52050 |
| 71873A | Front seat cushion lower guard | 71873-47040 |
| 71874 | Front left seat cushion lower guard | 71874-47040 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52100 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52100 |
| 72211 | Seat slide adjustment handle | 72211-52130 · 72211-52190 |
| 72991 | Front right seat cushion cover | 72991-52080 |
| 72992 | Front left seat cushion cover | 72991-52080 |
| 73910A | Front right seat airbag assembly | 73910-52180 |
| 73920A | Front left seat airbag assembly | 73920-52180 |
