Toyota YARIS 锁芯组件 — Figure 6712

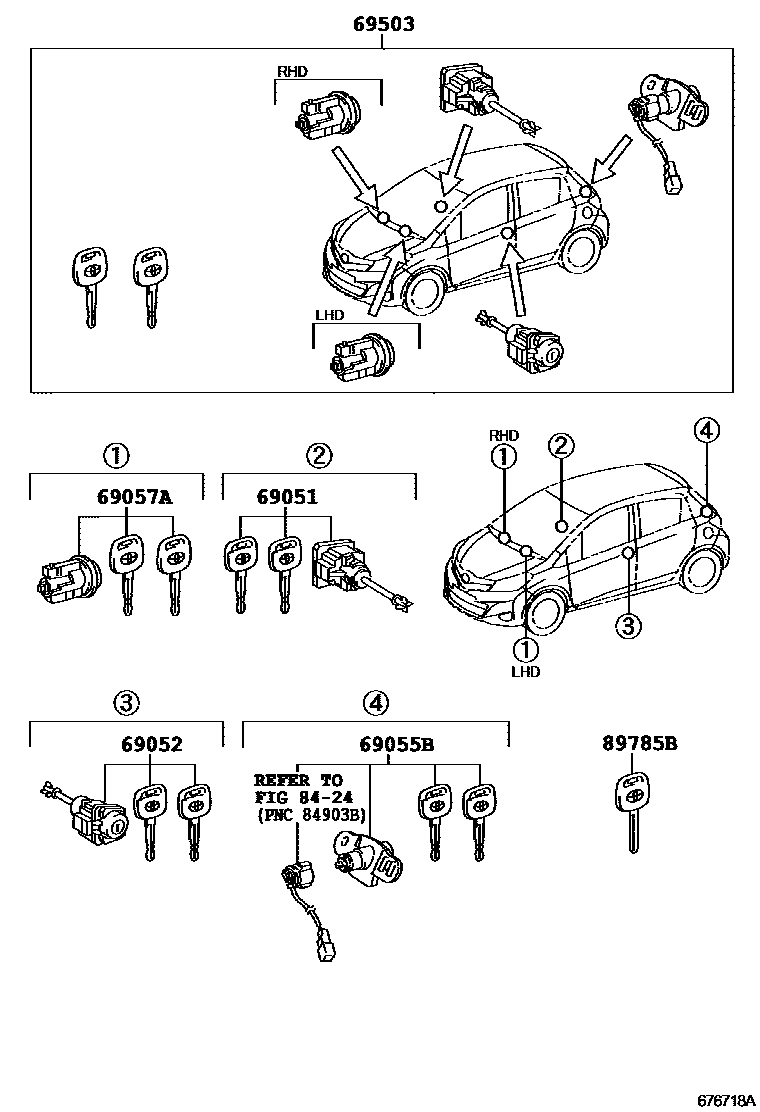

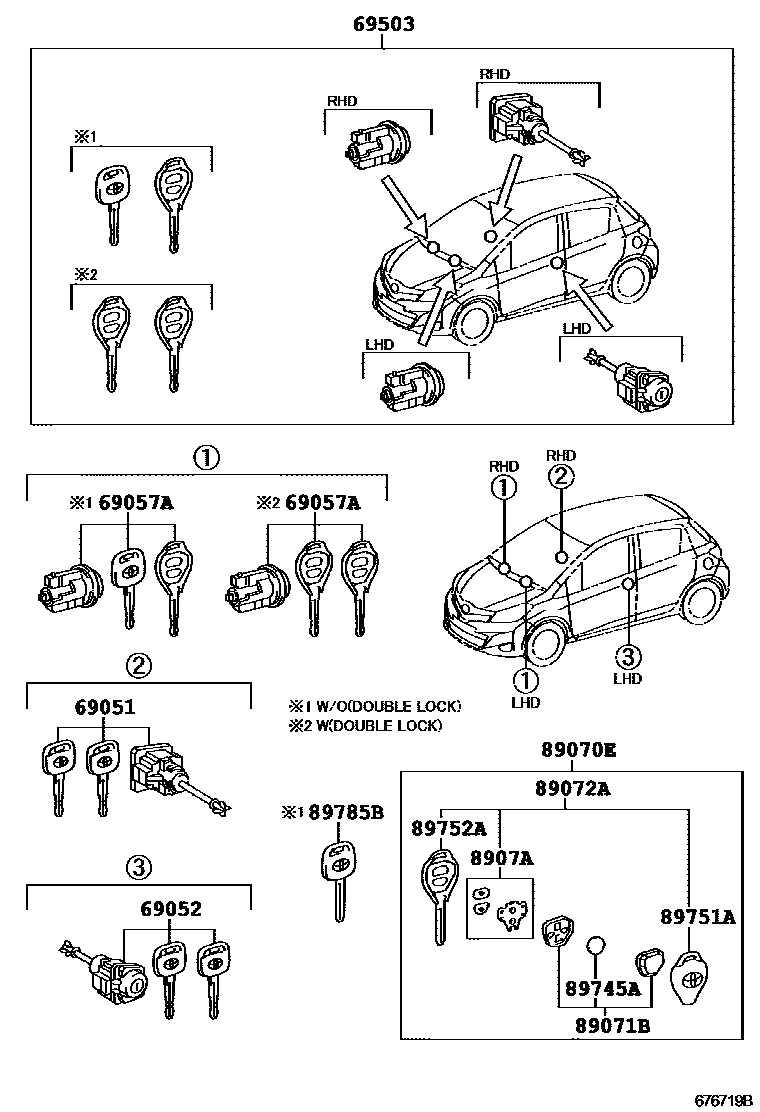

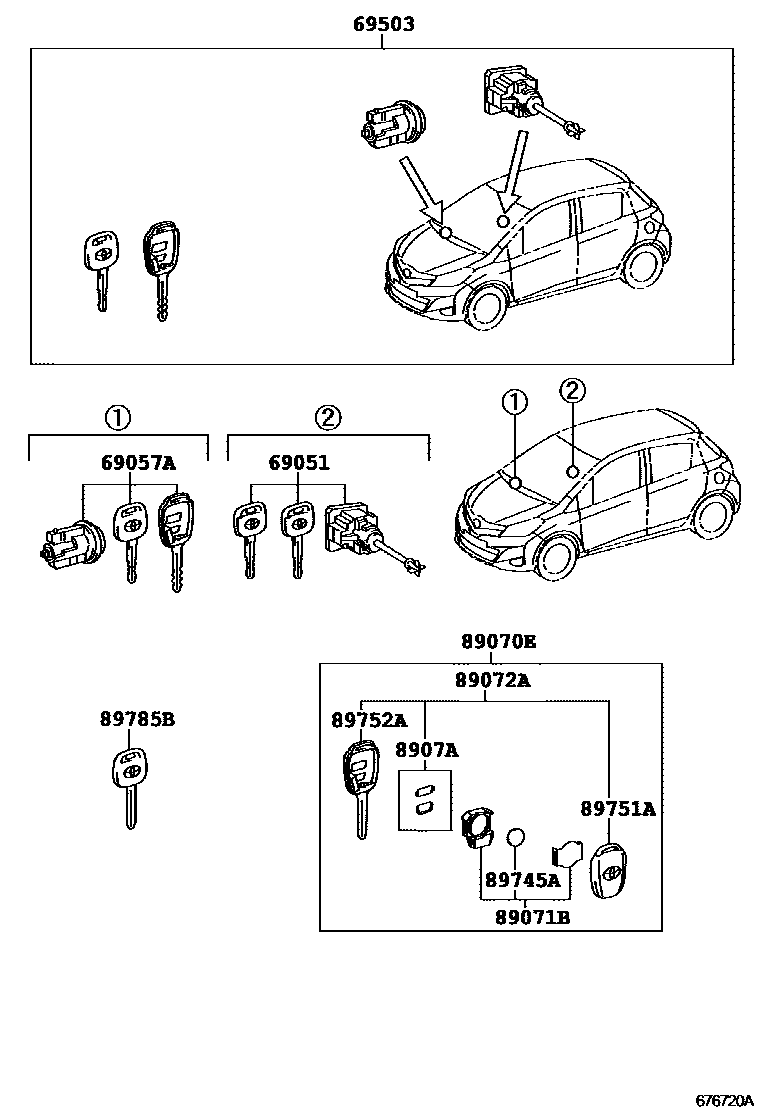

Toyota YARIS EPC diagram 6712, 锁芯组件, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52450 · 69051-52490 |
| 69052 | Left door lock cylinder and key assembly | 69052-52380 |
| 69055B | Rear door lock cylinder and key assembly | 69055-52500 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12780 · 69057-12800 · 69057-52A00 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-52K50 · 69005-52L50 · 69005-52L80 · 69005-52M30 · 69005-52M40 |
| 89070E | Remote key assembly | 89070-52D80 · 89070-52F90 |
| 89071B | Remote key sub-assembly module assembly | 89071-52250 · 89071-71051 |
| 89072A | Remote key shell assembly | 89072-52550 · 89072-52890 |
| 8907A | Transmitter switch assembly | 8907A-52010 · 8907A-71010 |
| 89745A | Transmitter battery | 89745-71010 |
| 89751A | Transmitter housing cover | 89751-52130 · 89751-52240 |
| 89752A | transmitter housing | 89752-12140 · 89752-52080 |
| 89785B | transceiver key master transmitter | 89785-60210 |
