Toyota YARIS 车顶内衬和消声垫 — Figure 6402

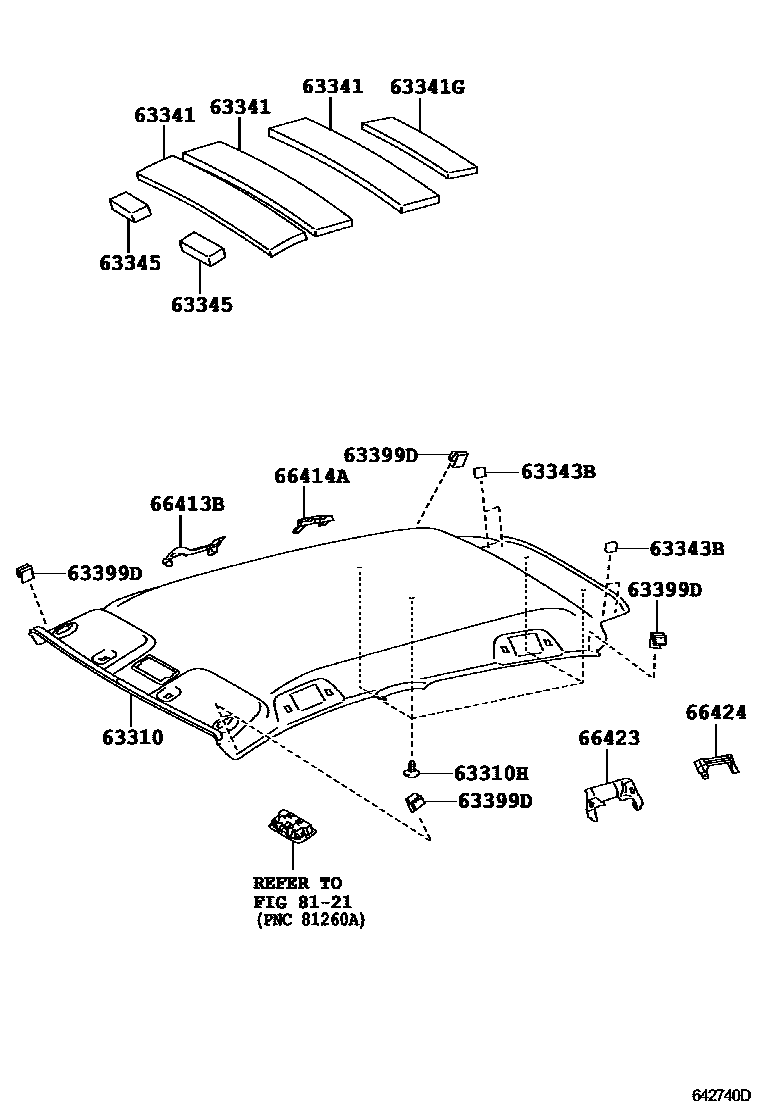

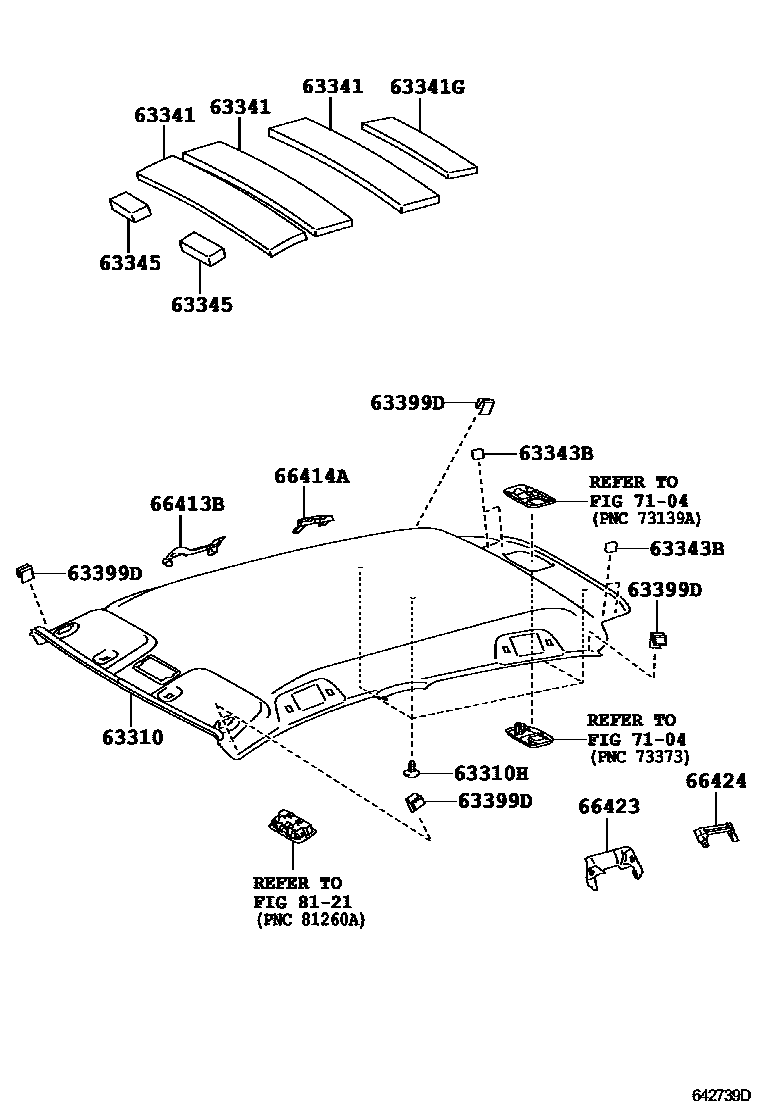

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-52250 |
| 63341G | roof muffler mat | 63341-52290 |
| 63343B | Rear roof silencer pad | 63343-52080 · 63343-52081 |
| 63345 | No. 5 roof silencer mat | 63345-52010 |
| 63399D | headliner clip | 63399-52020 |
| 66413B | Right front longitudinal member spacer | 66416-52040 |
| 66414A | Right rear longitudinal member spacer | 66414-52280 |
| 66423 | Left front longitudinal member spacer | 66426-52030 |
| 66424 | Left rear longitudinal member spacer | 66424-52220 |
