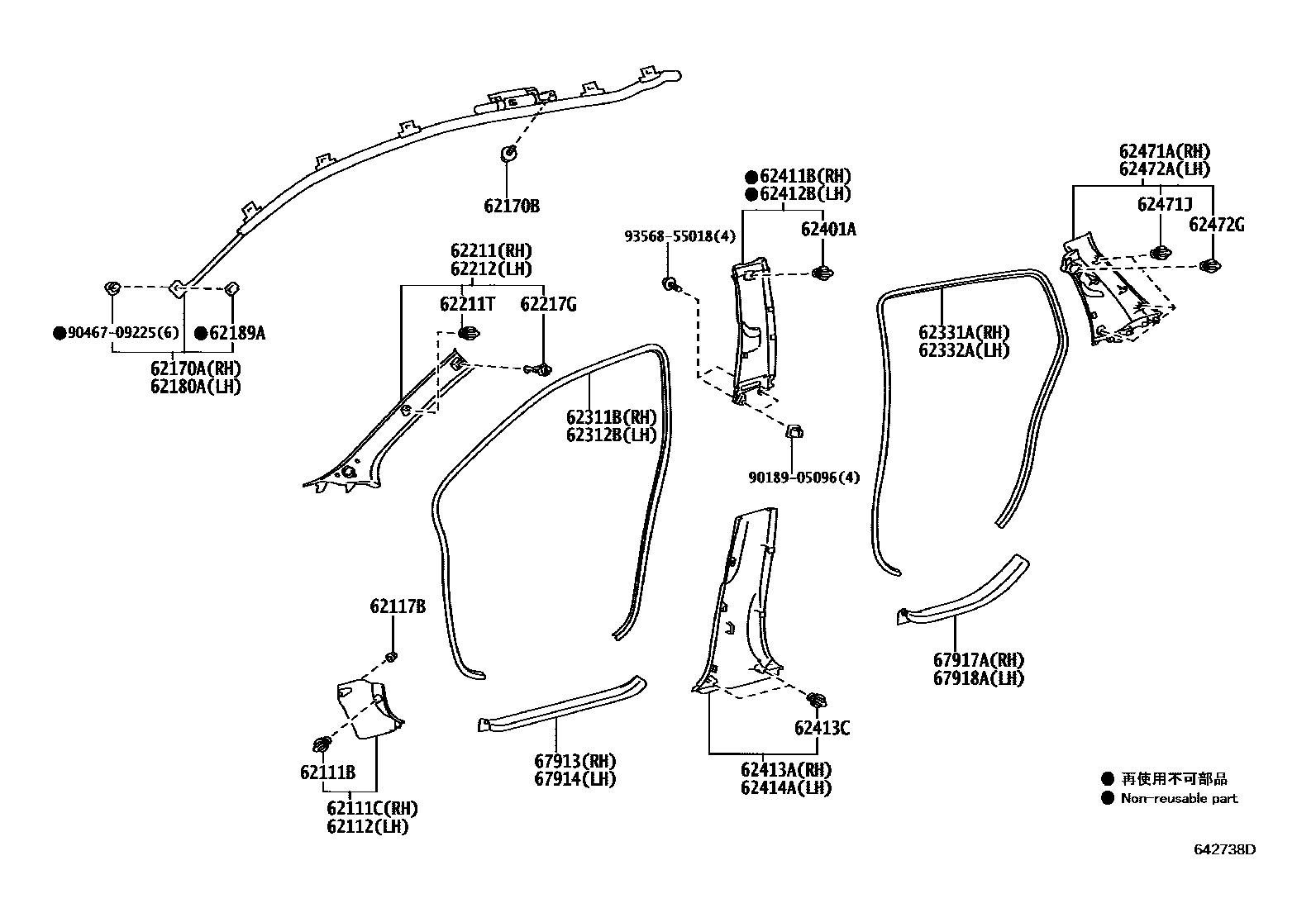

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-52120 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-52120 |
| 62189A | Curtain air bag clip spacer | 62189-20010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 62217-52030 · 62217-52050 |
| 62311B | Right front door opening waterproof tape | 62311-52200 · 62311-52230 |
| 62312B | Left front door opening waterproof tape | 62312-52170 · 62312-52190 |
| 62331A | Right rear door opening waterproof tape | 62331-52080 |
| 62332A | Left rear door opening waterproof tape | 62332-52100 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-09236 |
| 62472G | Clips (for roof side trim panels) | 63395-12150 |
