VOCR EPC

Toyota YARIS 地板隔热垫 — Figure 5802

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 2 images and 3 PNC and OE references.

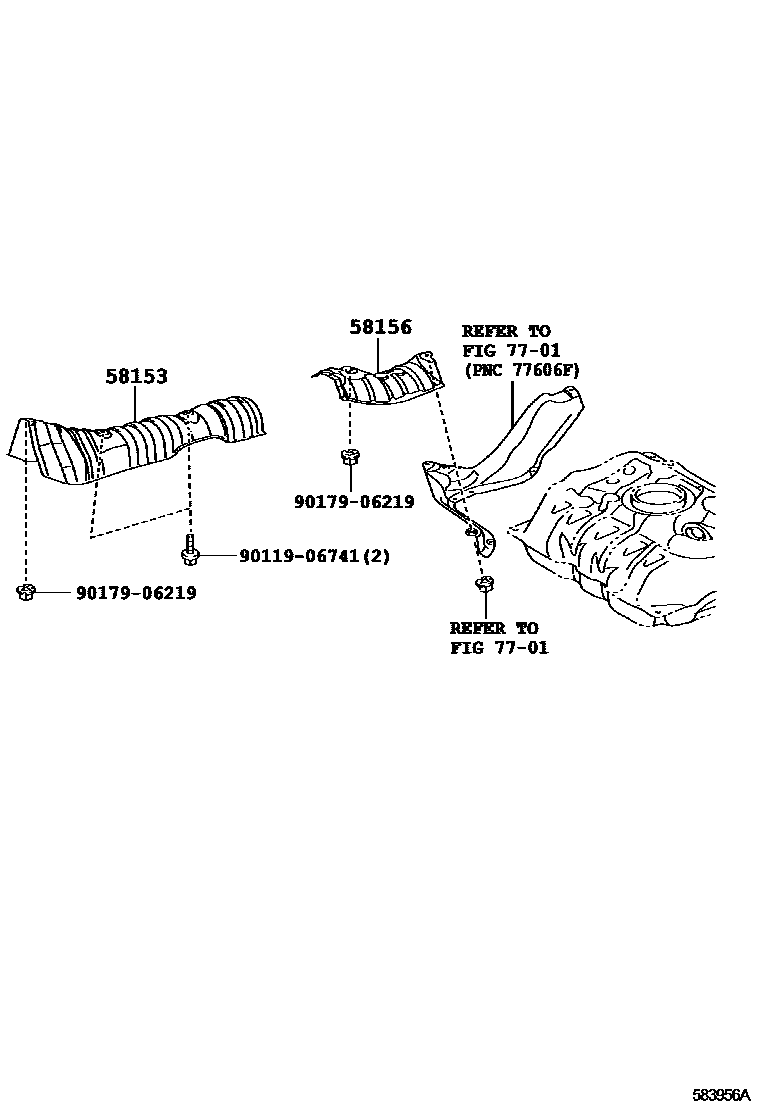

Toyota YARIS 地板隔热垫 EPC diagram — 583956A
地板隔热垫 — 583956A (201108 – 999999)

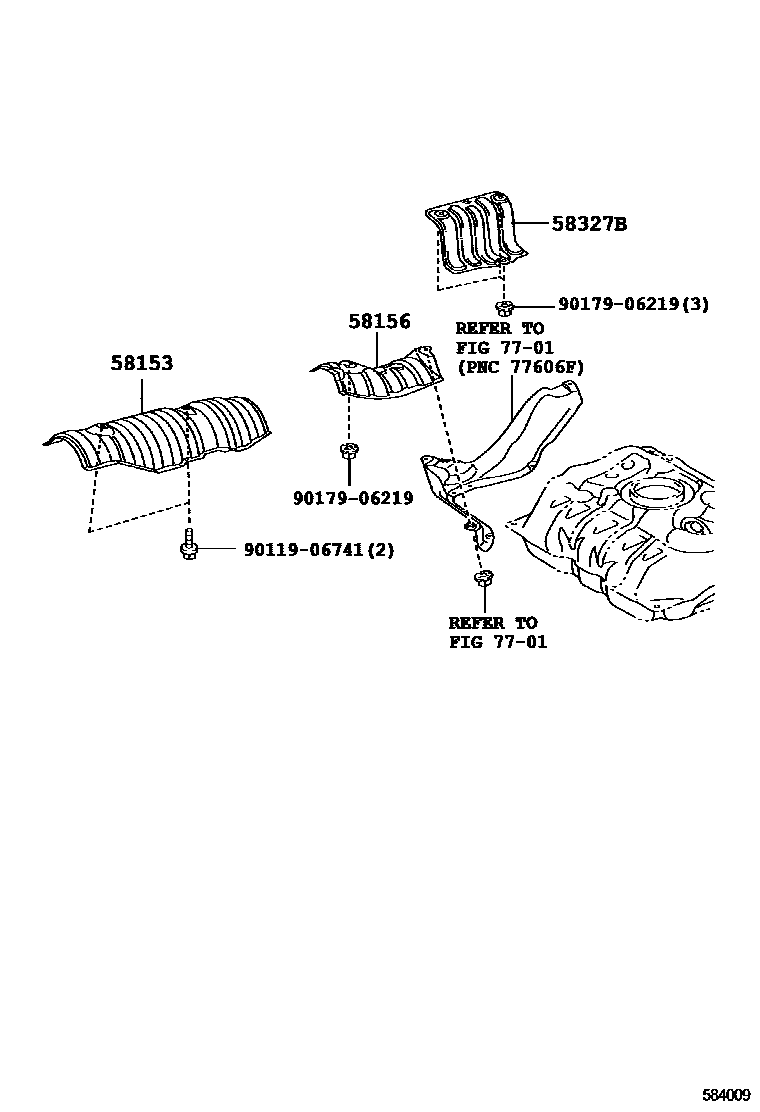

Toyota YARIS 地板隔热垫 EPC diagram — 584009
地板隔热垫 — 584009 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
58153Front floor insulation mat No. 258153-52071 · 58153-52090 · 58153-52091
58156Front floor insulation mat No. 458156-52010
58327BMain muffler heat insulation pad58327-52111
