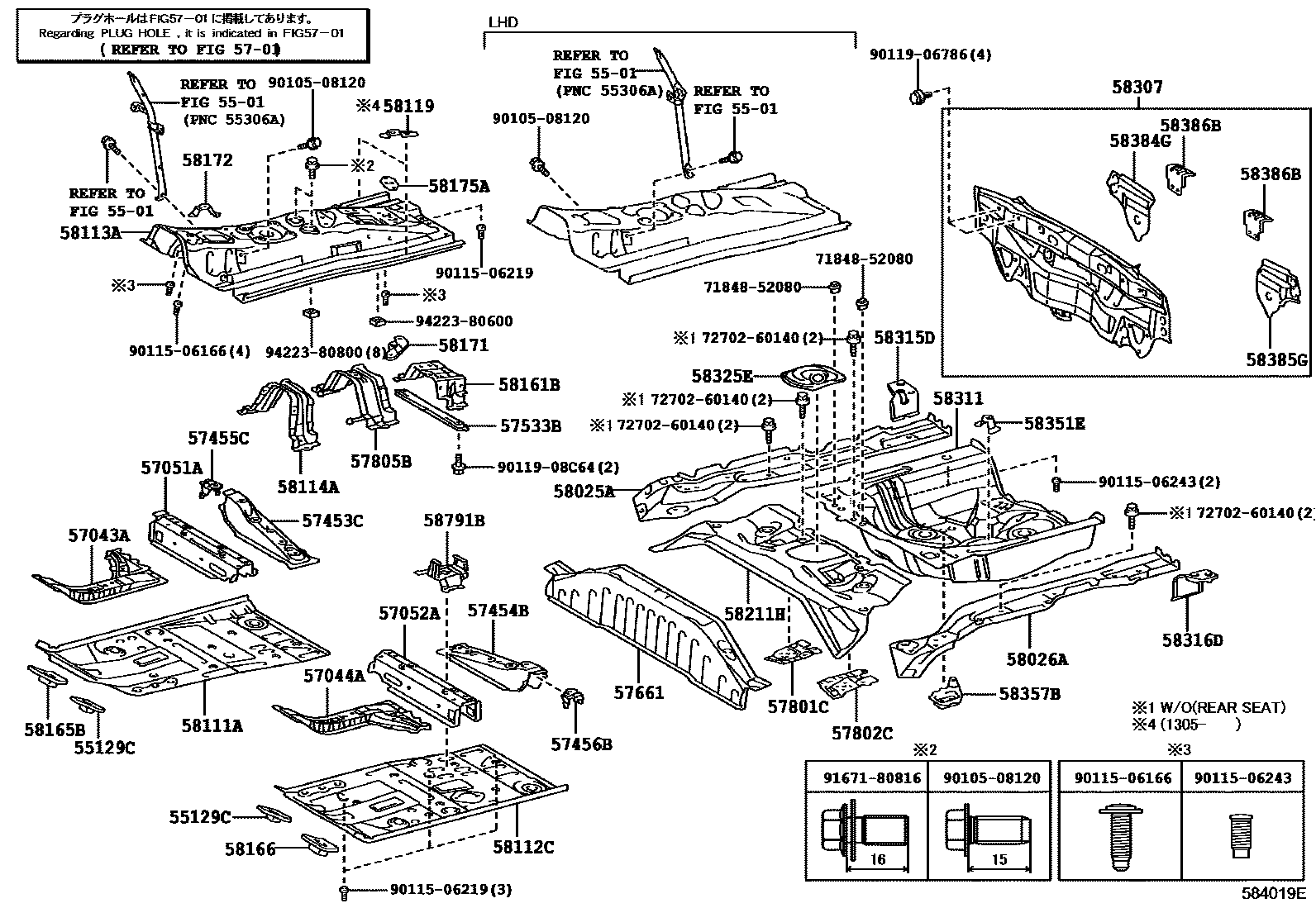

Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801
Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129C | Front panel hole cover | 55129-52051 · 55139-52021 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-52021 · 57043-52022 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-52041 · 57044-52042 |
| 57051A | Front floor right cross member sub-assembly | 57051-52010 |
| 57052A | Front floor left cross member sub-assembly | 57052-52010 |
| 57453C | Front floor right cross member | 57453-52021 · 57453-52022 |
| 57454B | Front floor left longitudinal beam | 57454-52011 · 57454-52012 |
| 57455C | Front right seat outer mounting bracket | 57455-52040 |
| 57456B | Front left seat outer mounting bracket | 57456-52040 |
| 57533B | Front floor center bracket | 57533-52011 |
| 57661 | Rear floor right front side panel | 57661-52110 |
| 57801C | Seat belt anchor No. 1 right side reinforcement sub-assembly | 57801-52130 |
| 57802C | Seat belt anchor No. 1 left reinforcement sub-assembly | 57802-52130 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-52131 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-52060 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-52090 |
| 58111A | Front floor right bottom panel | 58111-52160 · 58111-52270 |
| 58112C | Front floor left bottom panel | 58112-52901 · 58112-52918 |
| 58113A | front floor center panel | 58113-52901 · 58113-52917 · 58113-52927 |
| 58114A | front floor reinforcement | 58114-52071 |
| 58119 | front floor front side panel | 58119-52040 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-52070 |
| 58165B | Front floor right cover | 58165-52011 |
| 58166 | Front floor left cover | 58166-52011 |
| 58171 | Parking brake base reinforcement | 58171-52090 |
| 58172 | No. 3 ECU mounting bracket | 58172-52020 |
| 58175A | No. 1 parking brake base reinforcement | 58175-52020 |
| 58211H | central floor base | 58211-52271 |
| 58307 | Body lower back panel sub-assembly | 58307-52581 |
| 58311 | rear floor pan | 58311-52110 |
| 58315D | Rear floor pan right extension | 58315-52160 |
| 58316D | Rear floor pan left extension | 58316-52180 |
| 58325E | Rear floor access hole cover | 58325-52050 |
| 58351E | Spare tire clip bracket | 58351-52070 |
| 58357B | No. 3 right actuator cover bracket | 58357-52031 |
| 58384G | Body lower back panel upper right corner panel | 58384-52150 |
| 58385G | Body lower back panel upper left corner panel | 58385-52100 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-74010 |
| 58791B | jack bracket | 58791-52060 |
