Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

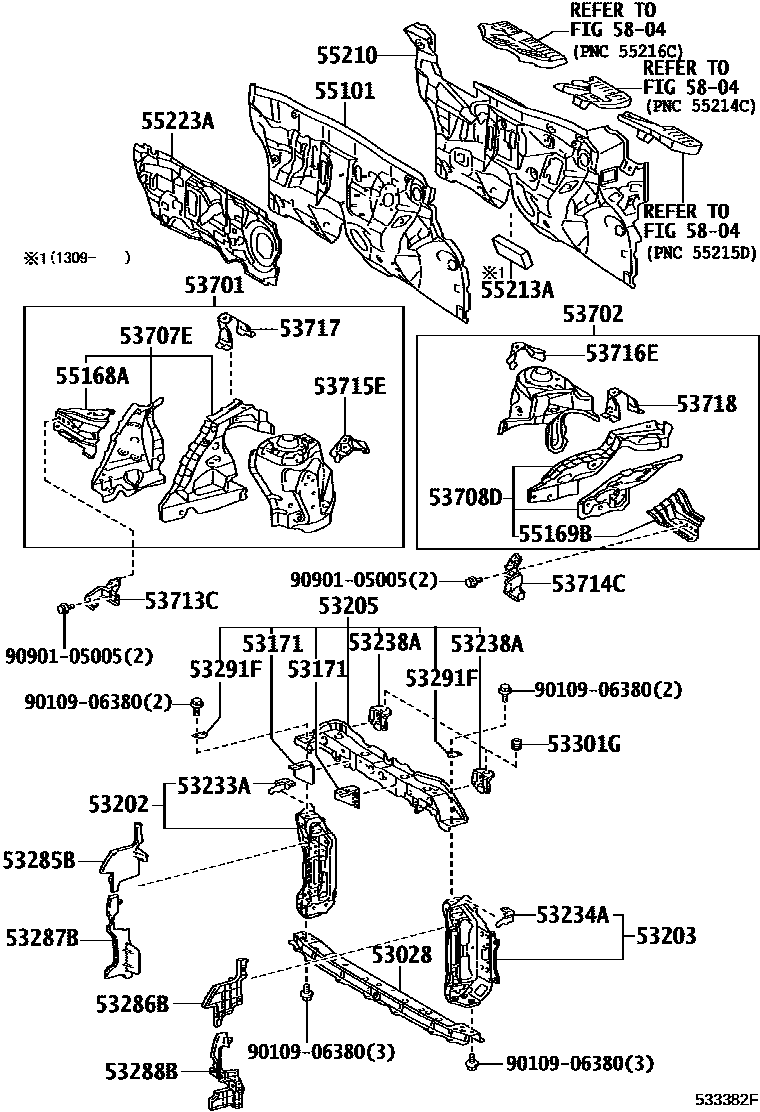

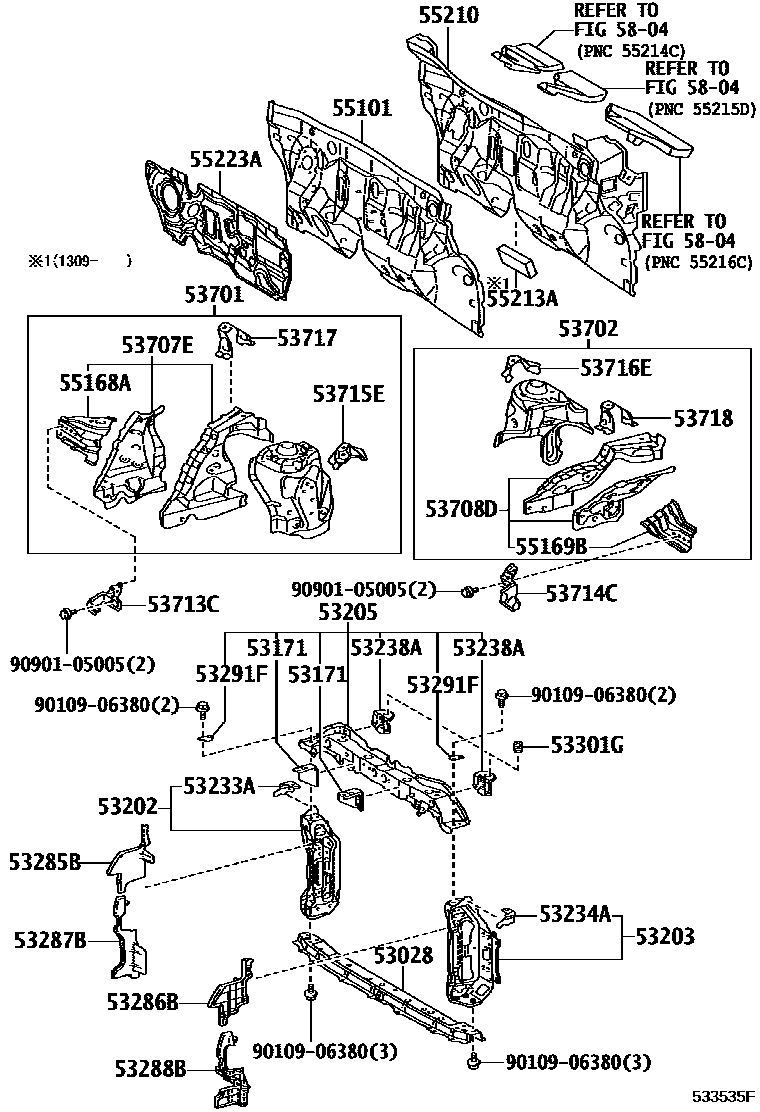

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53028 | Radiator lower bracket sub-assembly | 53028-52070 |
| 53171 | Radiator bracket fixings | 53171-52030 · 53171-52070 |
| 53202 | Radiator right side bracket sub-assembly | 53202-52908 |
| 53203 | Radiator left bracket sub-assembly | 53203-52906 |
| 53205 | Radiator upper bracket sub-assembly | 53205-52904 · 53205-52907 |
| 53233A | No. 1 right headlight bracket | 53233-52050 |
| 53234A | No. 1 left headlight bracket | 53234-52060 |
| 53238A | Engine cover bumper mounting bracket | 53238-52030 |
| 53285B | Radiator side 1 air seal | 53285-52350 |
| 53286B | Radiator No. 2 side air seal | 53286-52290 |
| 53287B | Radiator right side bracket extension | 53287-52130 |
| 53288B | Radiator left bracket extension | 53288-52130 |
| 53291F | Radiator support plate | 53291-52070 |
| 53301G | engine cover cushion | 53384-50010 |
| 53701 | Right front fender fender sub-assembly | 53701-52190 |
| 53702 | Left front fender fender sub-assembly | 53702-52190 |
| 53707E | Fender right fender sub-assembly | 53707-52030 · 53707-52060 |
| 53708D | Fender left fender sub-assembly | 53708-52030 · 53708-52060 |
| 53713C | Right front fender fender front extension | 53713-52070 |
| 53714C | Left front fender fender front extension | 53714-52080 |
| 53715E | Right front fender fender rear extension | 53715-52030 |
| 53716E | Left front fender fender rear extension | 53716-52030 |
| 53717 | Right fender fender side panel | 53717-52110 |
| 53718 | Left fender fender side panel | 53718-52110 |
| 55101 | Front apron sub-assembly | 55101-52481 · 55101-52490 · 55101-52500 · 55101-52521 |
| 55168A | Right front fender mounting bracket | 55168-52130 |
| 55169B | Left front fender mounting bracket | 55169-52130 |
| 55210 | Front wall insulation pad assembly | 55210-52310 · 55210-52320 |
| 55213A | Front wall muffler pad | 55213-52190 |
| 55223A | Front wall outer heat insulation pad | 55223-52100 · 55223-52110 · 55223-52120 · 55223-52121 · 55223-52130 |
